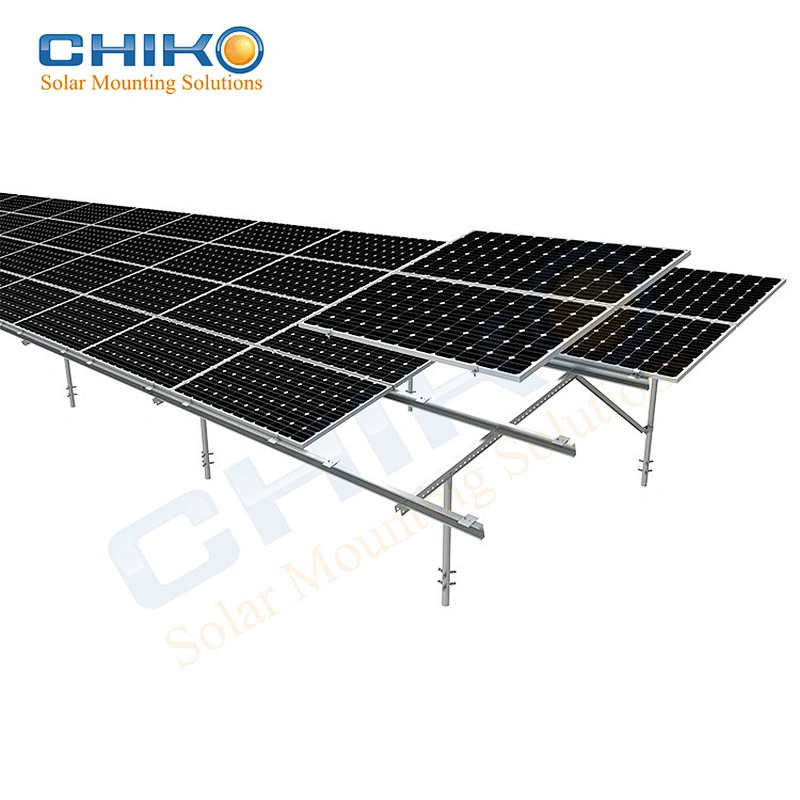

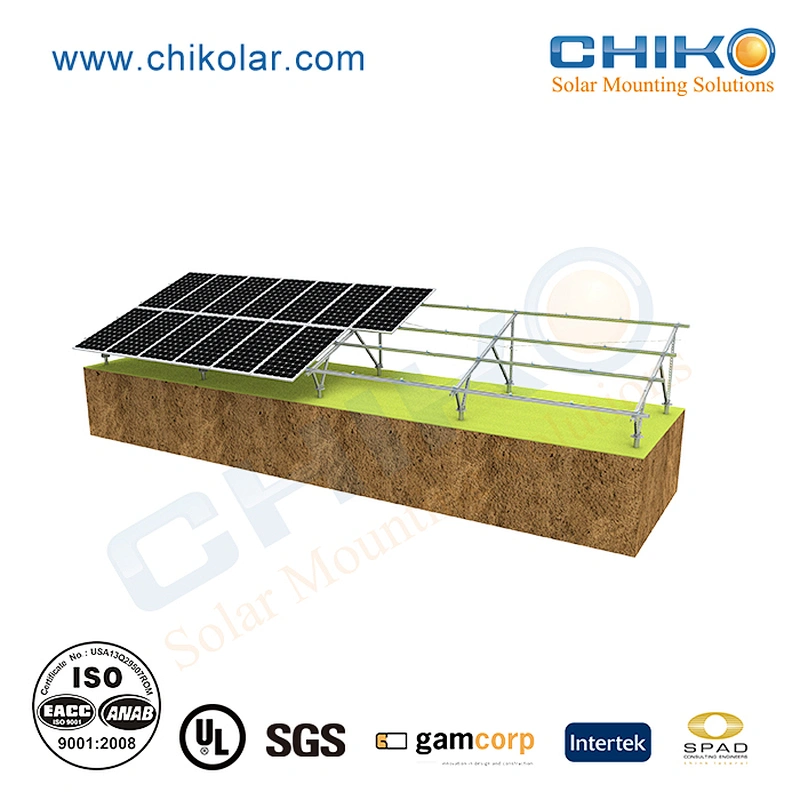

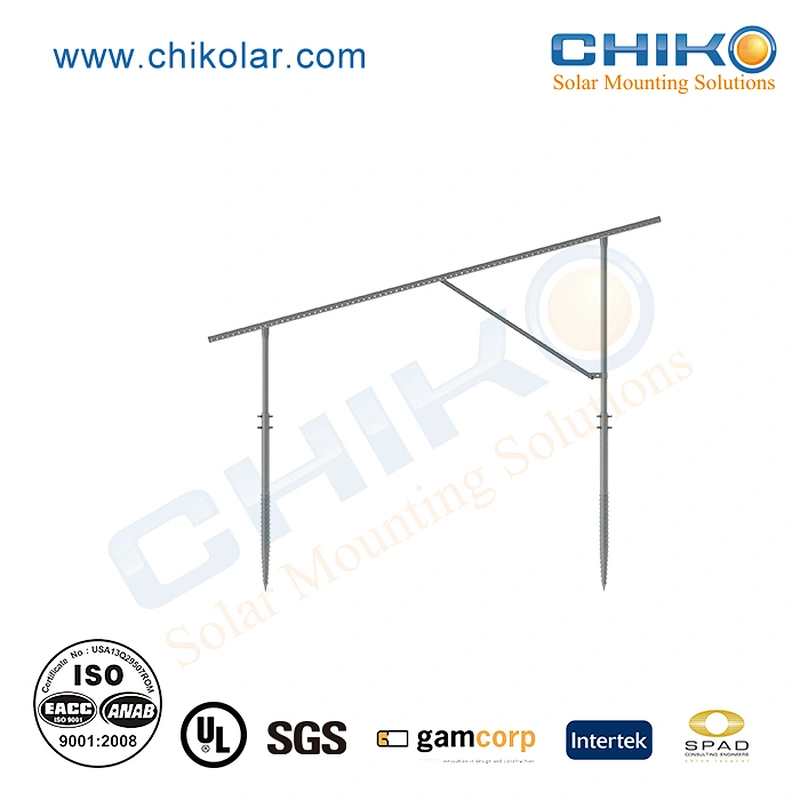

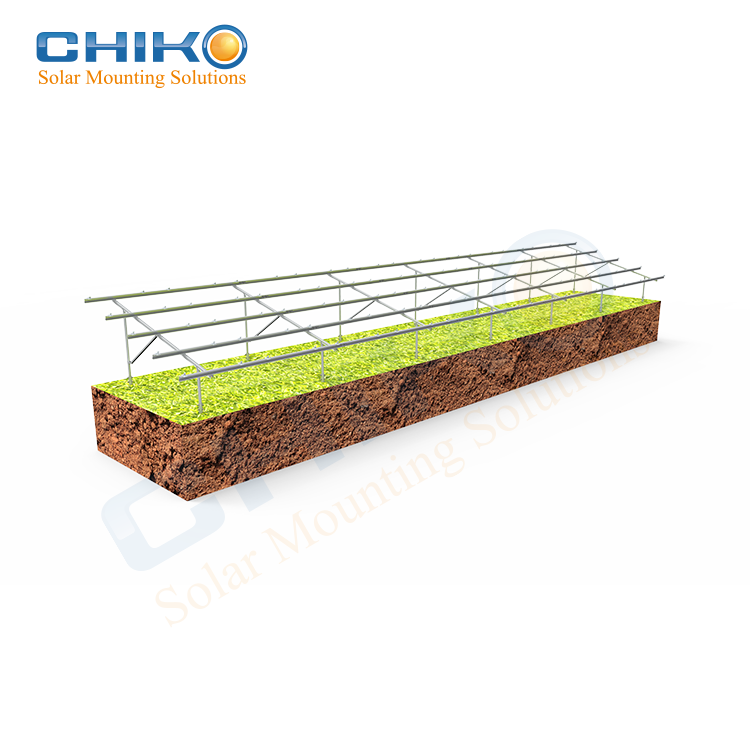

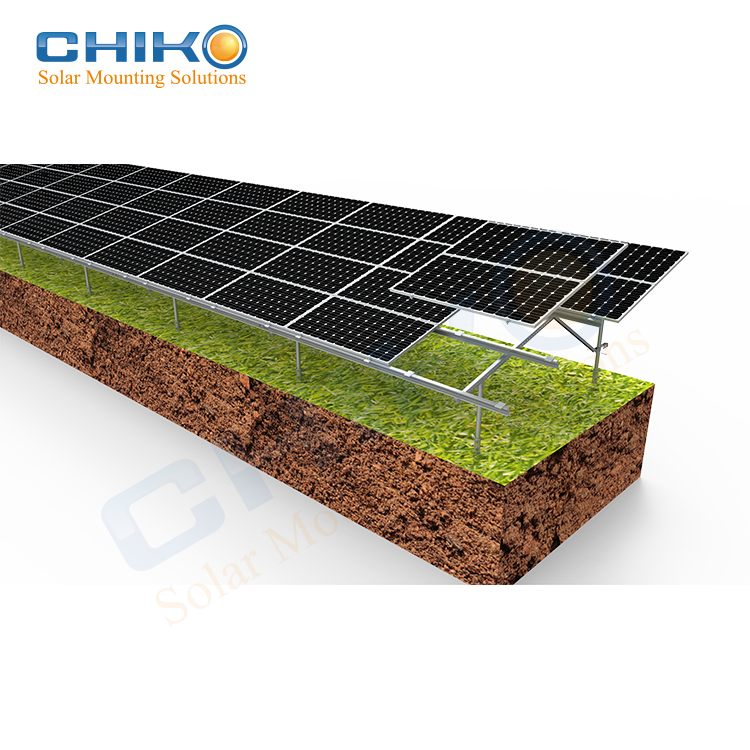

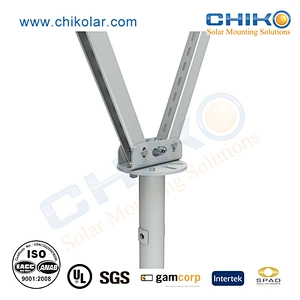

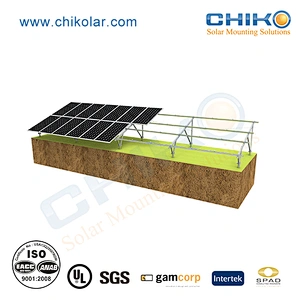

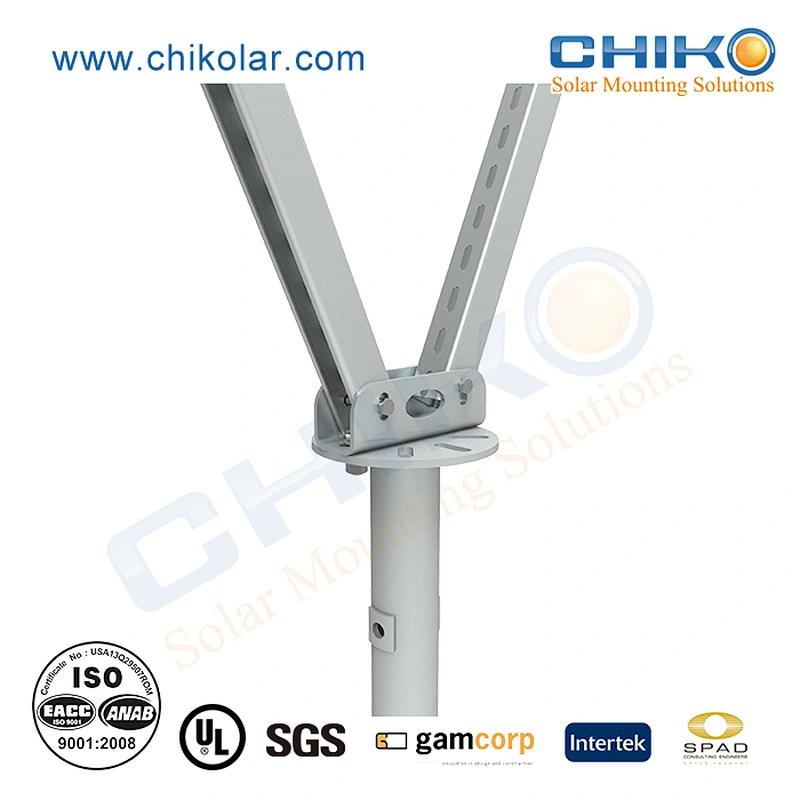

CHIKO Driven-pile Ground Mount

Model NO.: CK-Steel pile-15
Price:: USD 0.04-0.06 / watts
Minimum order quantity: 200000 watts
Supply Ability: 1000000.0 watts / Month
Country of Origin: SHANGHAI,CHINA

Quantity:

Product Description

Specification:Normal
Application:HOME
Item:Solar Pole Mount System
Applicant:Industrial and Agriculture
Installation site:Open ground
Certificated:ISO 9001:2008
Warranty:10 years warranty and 20 years service life
Galvanized thickness:more than 80 microns.
Place of Origin:CN;SHG
Brand Name:CHIKO
Model Number:CK-Steel pile-15

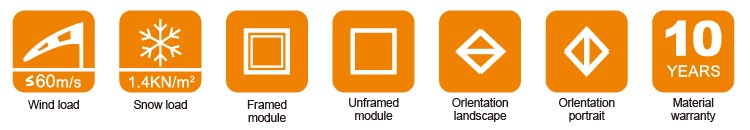

Wind Load:60M/S
Snow Load:1.8KN/M2
Warranty:10 Years

Ground

CHIKO Pipe Ground Mount（6MW abricated in 1 Day）

Custom engineered & designed to meet nearly any structural loading requirements and was specifically designed to work in conjunction with ground screw foundations.

The high performance, all galvanized racking materials provide long lasting durability and over 30 -year services life. All components have been pre-cut and pre-drilled for simple assembly in the field, improve the installation efficiency, saving time and labor cost for the onstruction of large-scaled solar farm.

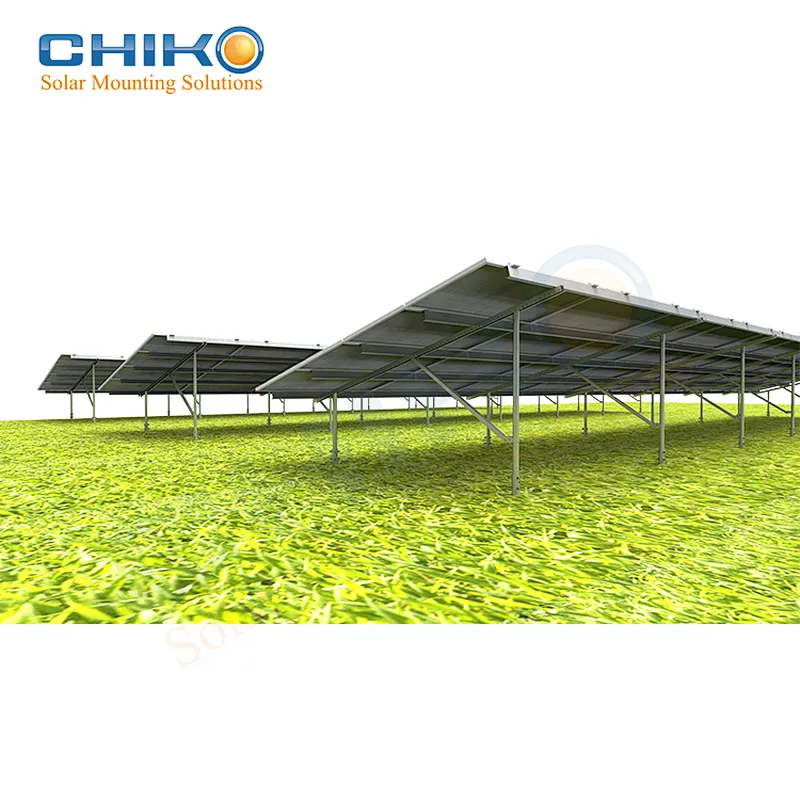

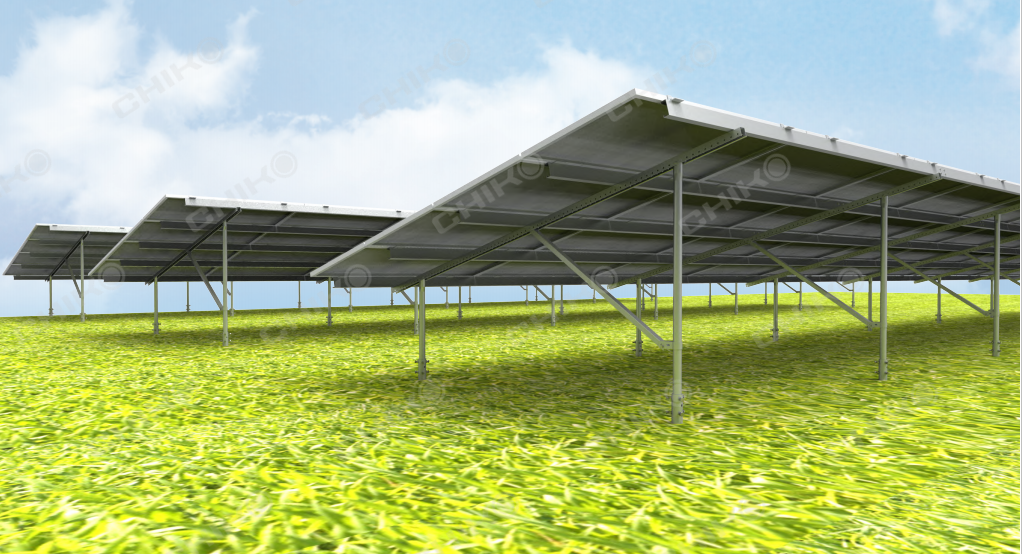

The versatility and scalability of Chiko Pile mount provides a flexible option that adapts to any configuration and any terrain

No.	Item No.	Descriptions	Quantity (2x8=16 Panels)
1	CK-C80-R3650	CHIKO Solar Standard C80 Rail 3650 mm	4
2	CK-C80-R4650	CHIKO Solar Standard C80 Rail 4650 mm	4
3	CK-C80-SK	CHIKO Solar Standard C80 Rail Splice Kit	4
4	CK-C80-FK	CHIKO Solar Standard C80 Rail Fixing Kit	12
5	CK-RC-N35-40	CHIKO Solar Mid clamp 40mm	28
6	CK-RC-N35-40	CHIKO Solar End clamp 40mm	8
7	CK-	CHIKO Solar Pipe Rack	3
8	CK-PL-2550	CHIKO Solar Pipe Back Suppoprt 2550 mm	2
Quantity will be adjusted upon the spacing and arrays

Universal Engineering

• Structural design to consider all applicable codes and local regulations, design loads, applicable weather hazards and other
regional date.
• Site-specific system statics calculation.
• Calculation for wind load, snow load.

Variability

• Suited for both framed and unframed PV modules.
• Configuration for both portrait and landscape.
• Variable inclination of 5-45deg and fixed.
• Easy mount, infinite height adjustment of legs by ground screw.

Components Features

• Hot-dip galvanized steel with a high corrosion resistance.

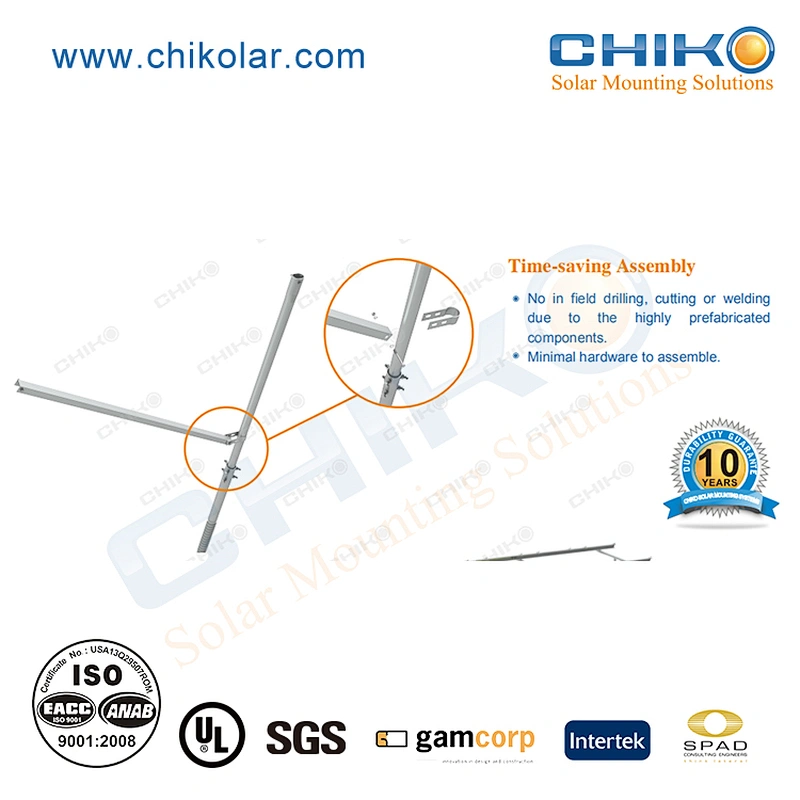

• Short assembly times due to the highly prefabricated components, no in
• field drilling, cutting or welding.

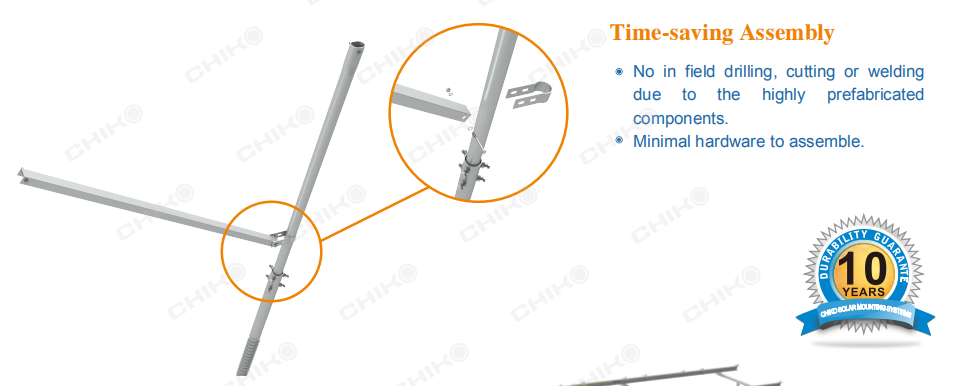

Time-saving Assembly

• No in field drilling, cutting or welding due to the highly prefabricated components.
• Minimal hardware to assemble.

Engineered Design

• Model design
• Calculating structural loads and stresses

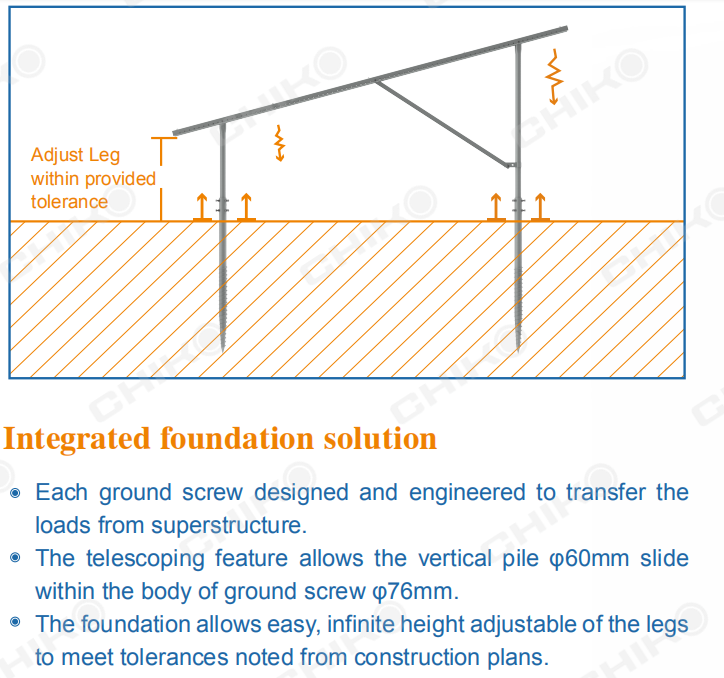

Integrated foundation solution

• Each ground screw designed and engineered to transfer the loads from superstructure.
• The telescoping feature allows the vertical pile φ60mm slide within the body of ground screw φ76mm.
• The foundation allows easy, infinite height adjustable of the legs to meet tolerances noted from construction plans.

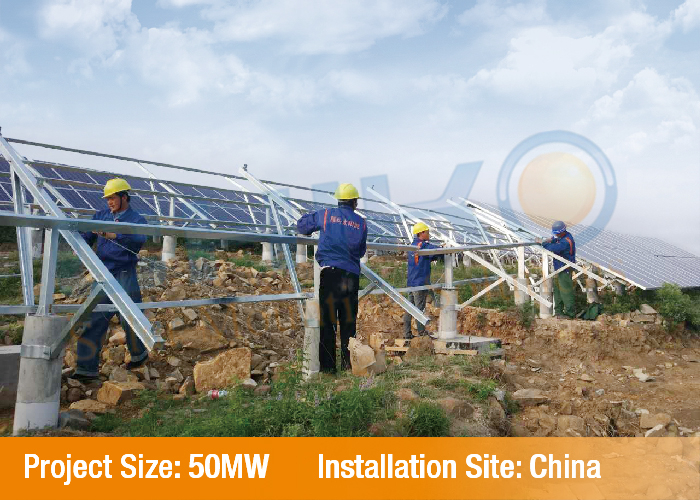

CHIKO PROJECTS

CHIKO focus on manufacturing and design Solar Mounting System for more than 10 years, CHIKO products was installed in more than 60 countries，with the cumulative 8 GW capacity.The customer design is available. Anything further question and more solution, Contact us !

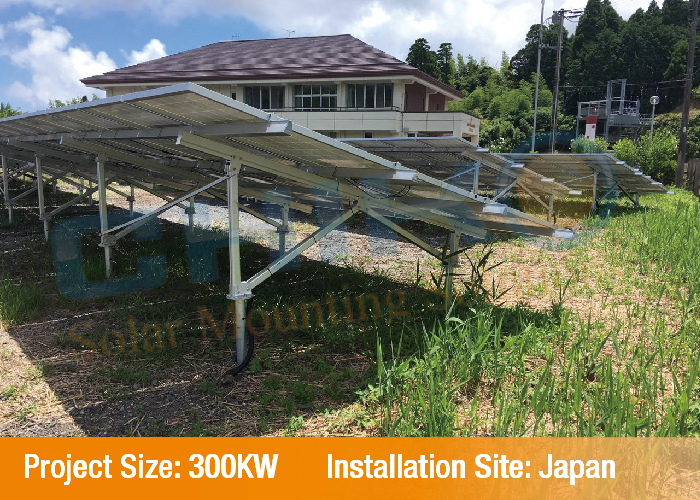

203 KW Ground Mounting Project in Japan

1.3 MW Ground Mounting Project in Nicaragua

Recommend Products

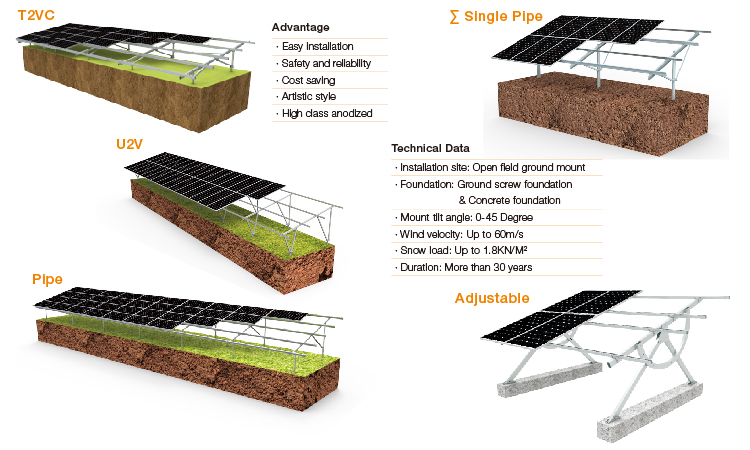

3. CHIKO More Ground Mounting Solution

Our service

Please provide Project informations as below when inquiry:
1. The dimension of your common solar panel? ________(L*W*T)
2. The PV array? _________
3. Max Wind speed in your area? _________
4. Tilt angle require for your area? _________

If you have any special require, Click here to contact us. Our design team will help you make the most suitable solution.
