U2V Galvanized steel ground solar mounting system

U2V Galvanized steel ground solar mounting system

Model NO.: Ground-U2V
Price:: USD 0.04-0.05 / watts
Minimum order quantity: 200000 watts
Supply Ability: 1000000.0 watts / Month
Country of Origin: SHANGHAI,CHINA

Quantity:

Product Description

Mount type:Solar ground mounting
Application:Industrial
Warranty:10 Years
Material:Aluminum.Stainless Steel
Color:Natural/black
Certification:ASNZS1170/UL/CE
Specification:Normal
Installation Site:Open field ground mount
Product name:ground solar mounting bracket / racking / stand for resident use
Place of Origin:CN;SHG
Brand Name:CHIKO
Model Number:Ground-U2V
Wind Load:60M/S
Snow Load:1.8KN/M2
Warranty:10 Years

Ground

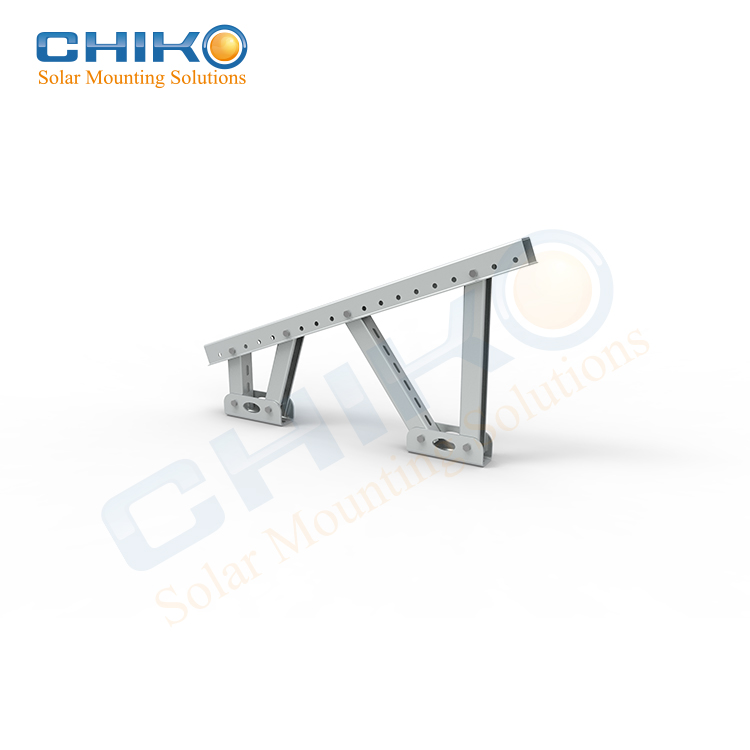

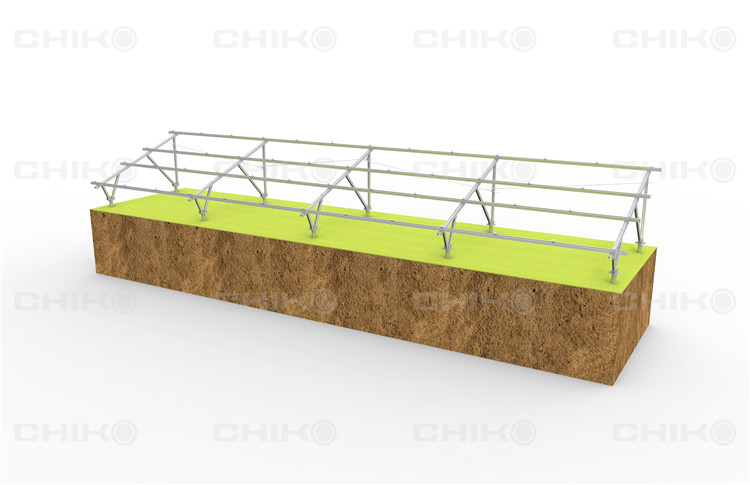

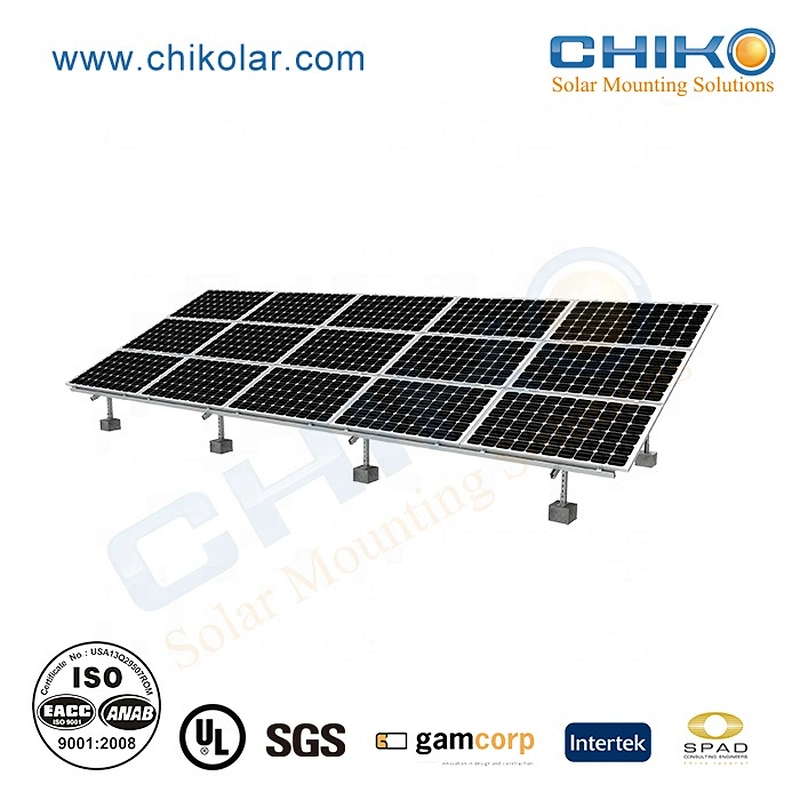

CHIKO S-U2V Ground Solar Mount（6 MW Fabricated in 1 Day）

Designed and engineered to suit to both concrete foundation and ground screw foundation solar farm. The high performance, all galvanized racking materials provide long lasting durability and over 30 - year service life.

• All components have been pre-cut and pre-drilled for simple assembly in the field, improve the installation efficiency,
• saving time and labor cost for the construction of large-scaled solar farm.
• Provides a flexible option that adapts to any configuration and any terrain.

Variability

• Suited for both framed and unframed PV modules.
• Variable inclination of 0-45deg and fixed.
• Set on both ground screw foundation and concrete foundation.
• Configuration for both portrait and landscape.

Universal Engineering

• Structural design to consider all applicable codes and local regulations, design loads, applicable weather hazards and other
regional date.
• Site-specific system statics calculation.
• Calculation for wind load, snow load.

Components Features

• Hot-dip galvanized steel with a high corrosion resistance.
• Short assembly times due to the highly prefabricated components, no in field drilling, cutting or welding.

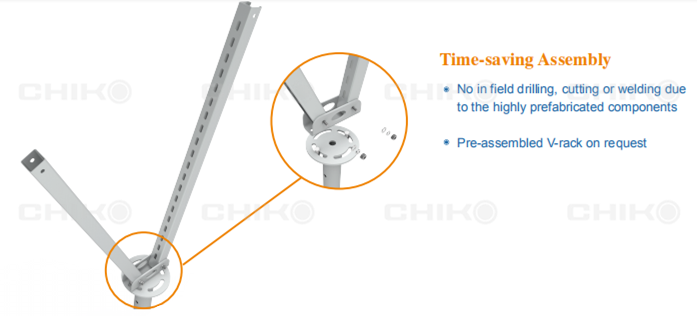

Time-saving Assembly

• No in field drilling, cutting or welding due
to the highly prefabricated components

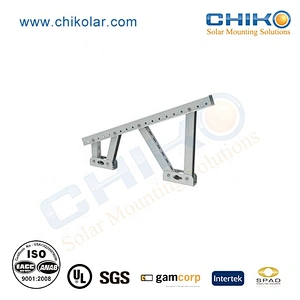

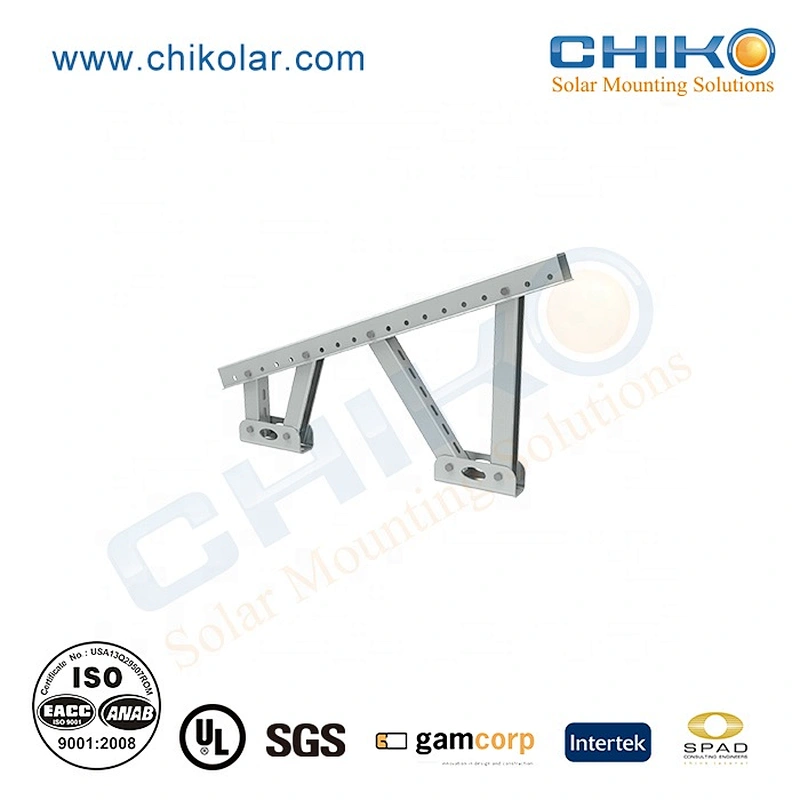

• Pre-assembled V-rack on request

The most preferred medium solar farm

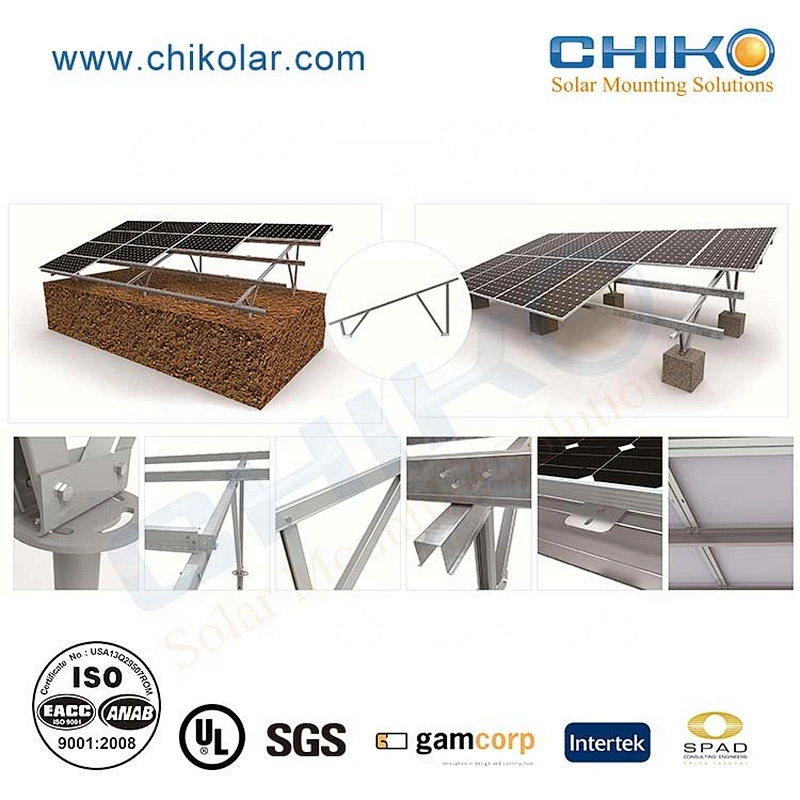

There are concrete block and ground screw of foundation can be selected.

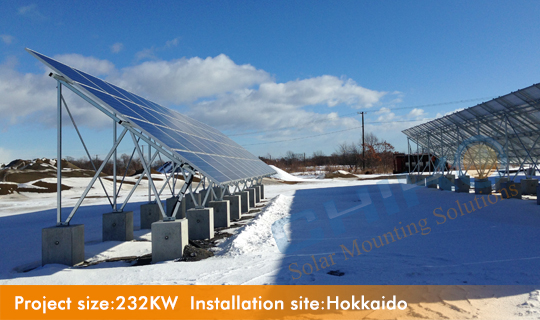

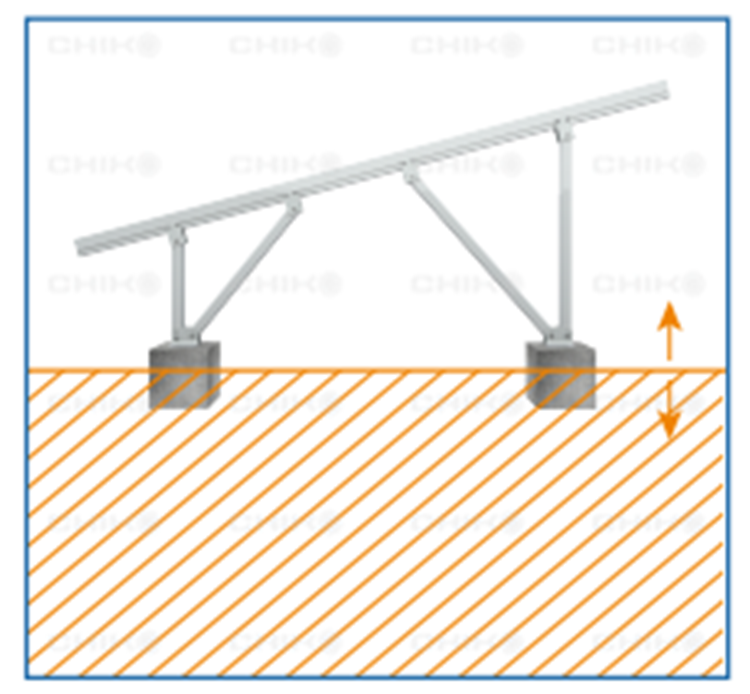

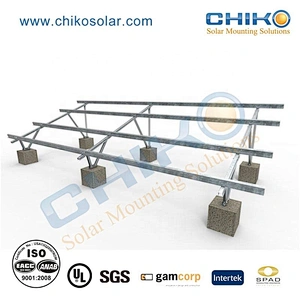

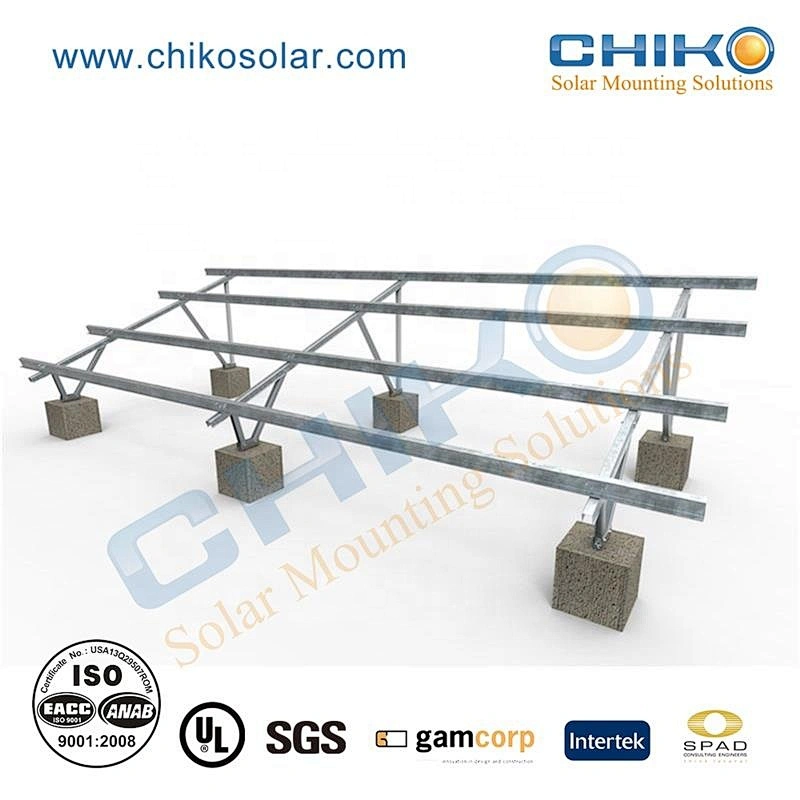

A. Concrete base Foundation

• Best suited where ground excavation is
not permitted
• The size is adjusted based on the static requirements and location

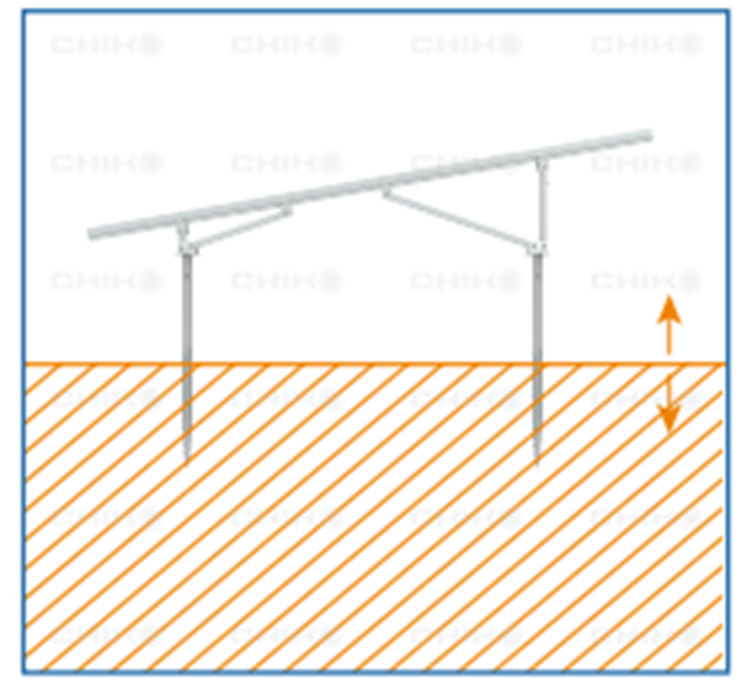

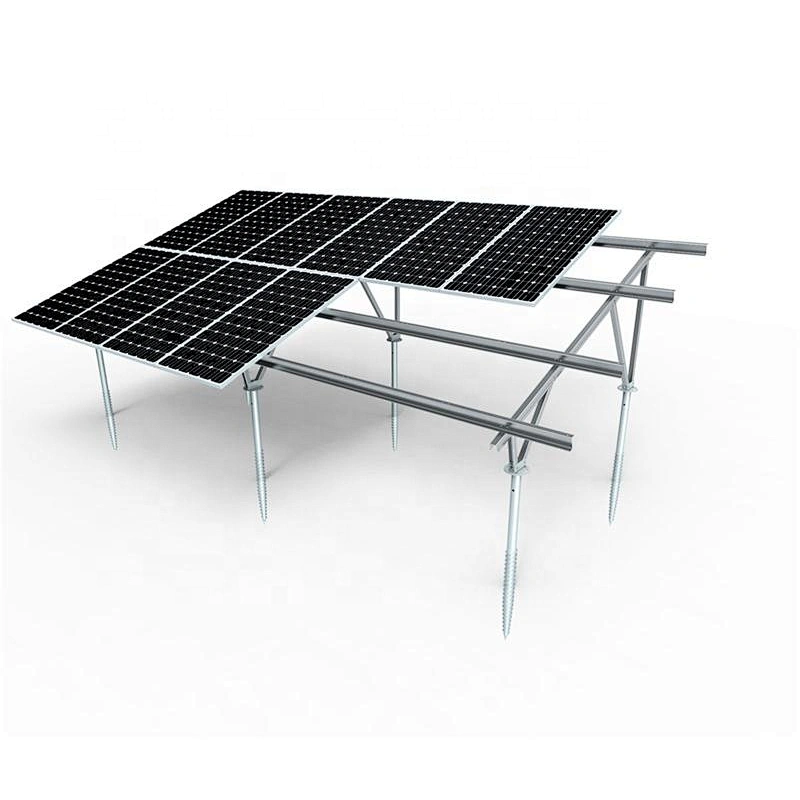

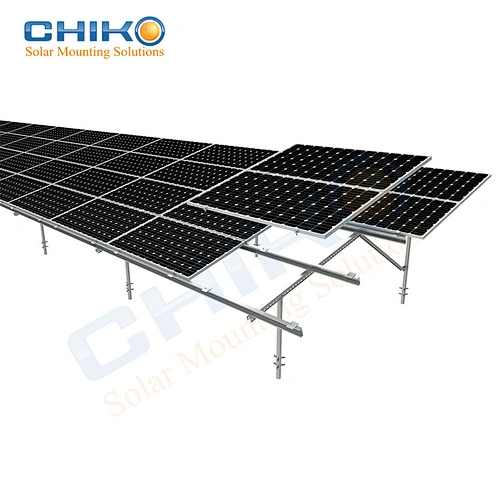

B. Screw piles Foundation

• High traction and pressure values
• Installation by mini-digger machine with rotating head support

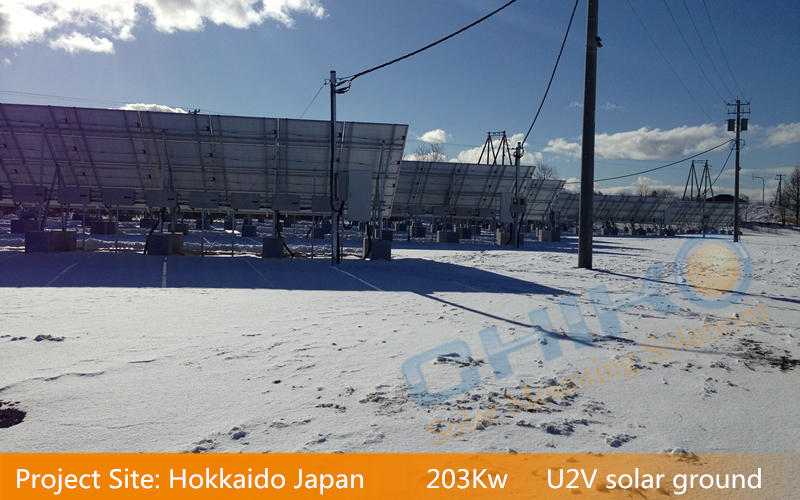

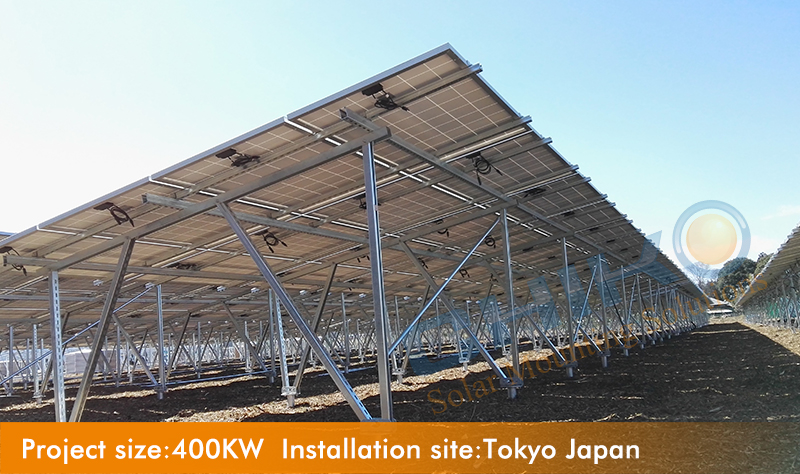

CHIKO PROJECTS

CHIKO focus on manufacturing and design Solar Mounting System for more than 9 years, CHIKO products was installed in more than 60 countries.The customer design is available. Anything further question and more solution, contact us!

Recommend Products

Our service

Please provide Project informations as below when inquiry:
1. The dimension of your common solar panel? ________(L*W*T)
2. The PV array? _________
3. Max Wind speed in your area? _________
4. Tilt angle require for your area? _________

If you have any special require, Click here to contact us. Our design team will help you make the most suitable solution.
