- Place of Origin:CN;SHG
- Brand Name:Chiko
- Model Number:CK-Manual Adjustable-15
- Wind Load:60M/S
- Snow Load:1.8KN/M2
- Warranty:10 Years
- Specification:Normal
- Material::Anodized Alu & Stainless Steel
- Tilt Angle::10/15/20/30/ Customized
- Standard::Australia & European
- Alu Treatment::Anodized
- Feature::Easy & Quick Installation
- Engineering Service::Acceptable
- Product name:ground solar panel mounting

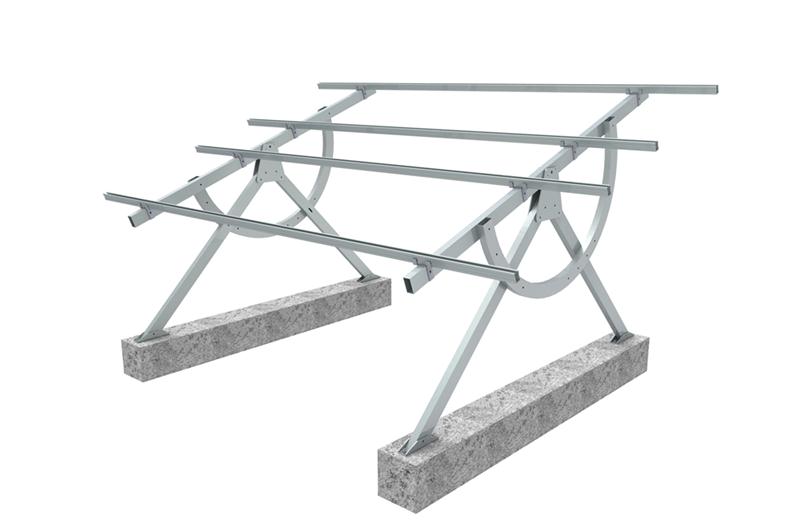

Adjustable Steel Ground Mounting
All components have been pre-cut and pre-drilled for simple assembly in the field, improve the installation efficiency, saving time and labor cost for the construction.
Technical Datas
• Installation site: Open field ground mount
• Foundation: Ground screw & Concrete
• Mount tilt angle: -45 to +45 Degree
• Protection: Q235B or Q345 Hot dip galvanized(80μ)
• Accessories: Zinc coating bolts
• Duration: More than 30 years

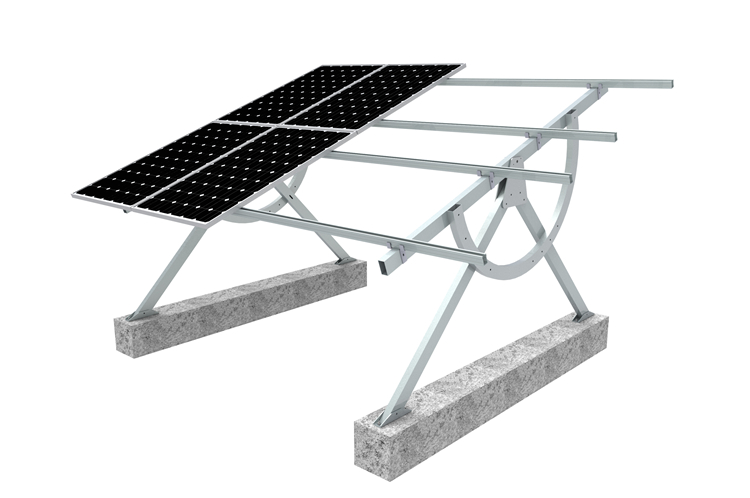

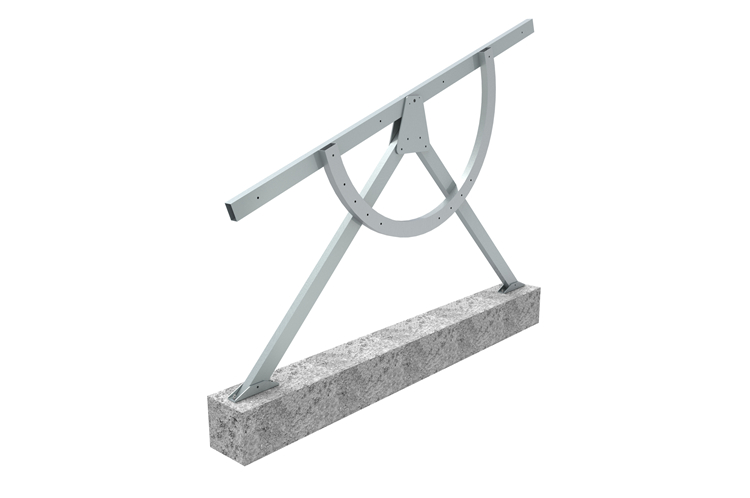

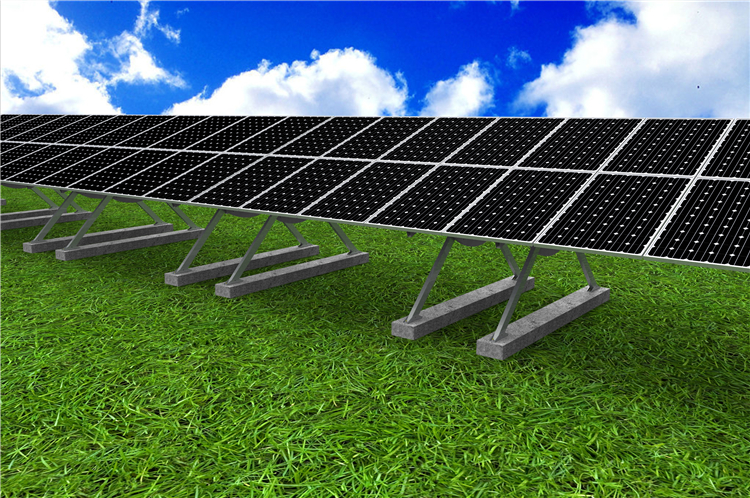

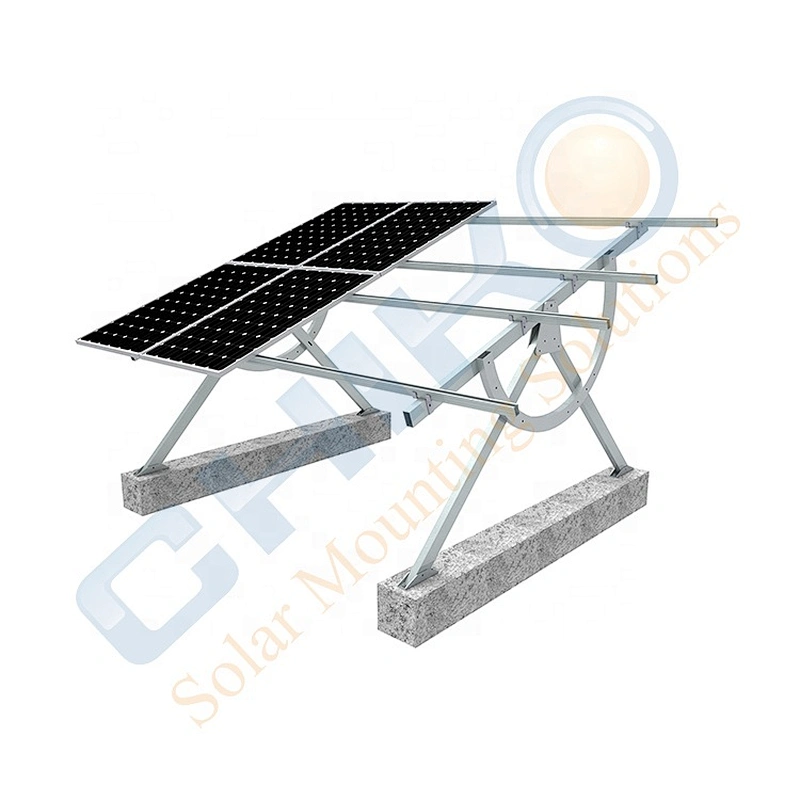

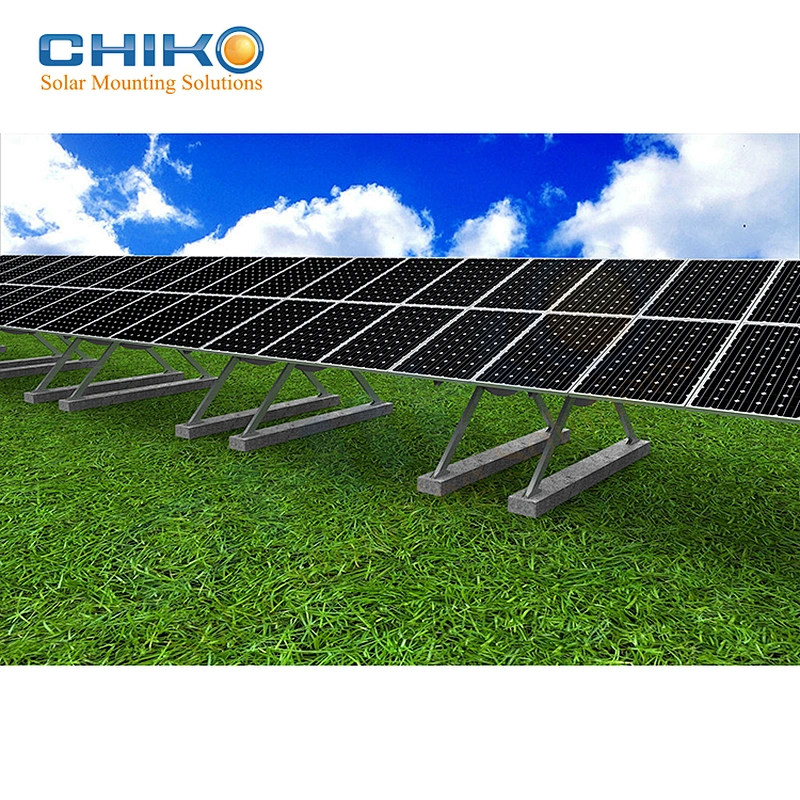

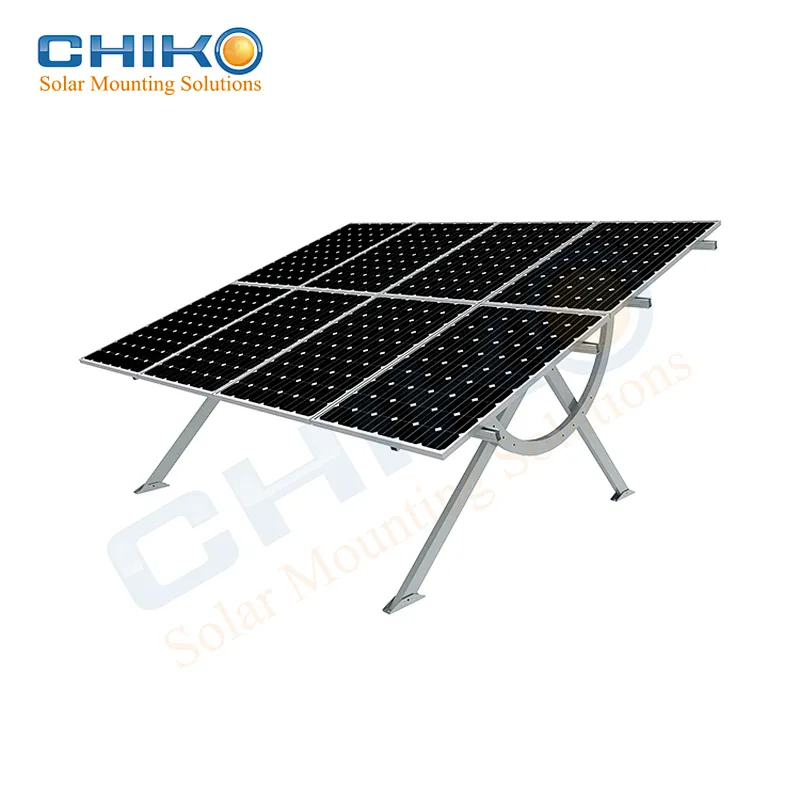

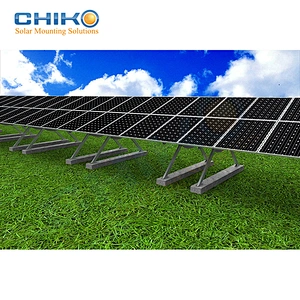

1.Product Showcase
• Easy installation • Safety and reliability • Extension flexibility • Anti-corrosion and anti-rust

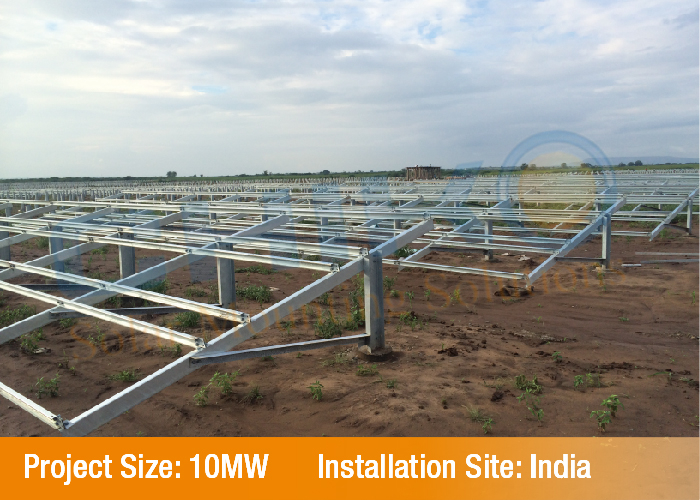

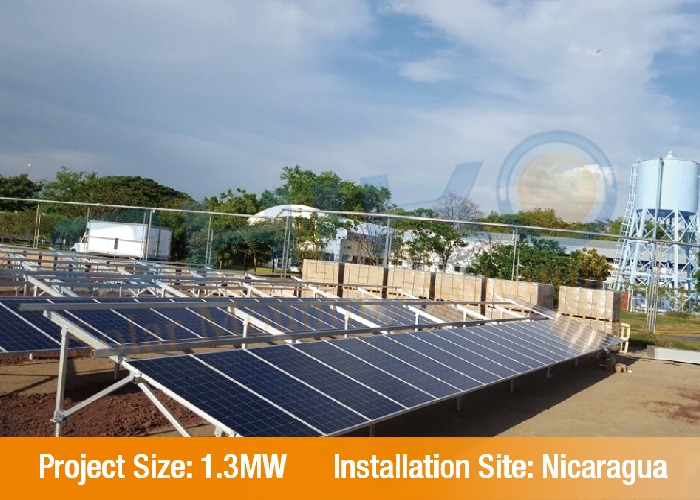

2. CHIKO Project

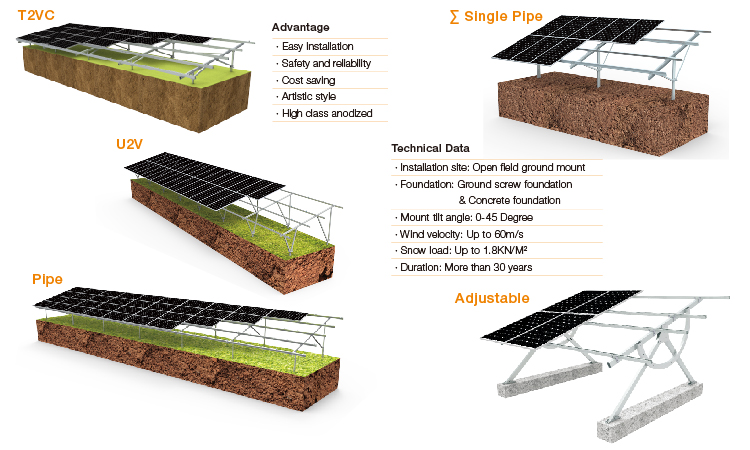

3. CHIKO More Ground Mounting Solution
Chiko Service
For Solar Mount Solution and Request Contact Info:
Terry Lynn
Email: chiko(@)chikolar.com
Phone: 0086 13816459677
Please provide data as below when inquiry:
1. The dimension of your common solar panel? ________(L*W*T)
2. The PV array? _________
3. Max Wind speed in your area? _________
4. Tilt angle require for your area? _________
If you have any special require, Click here to contact us. Our design team will help you make the most suitable solution.
