- voltage:600/1000V
- temperature:120℃
- Insulation Material:PE
- Application:Power Station
- Conductor Material:Copper
- Jacket:PE
- Place of Origin:CN;SHG
- Brand Name:CHIKO
- Model Number:CK0809-4.0
Product Overview

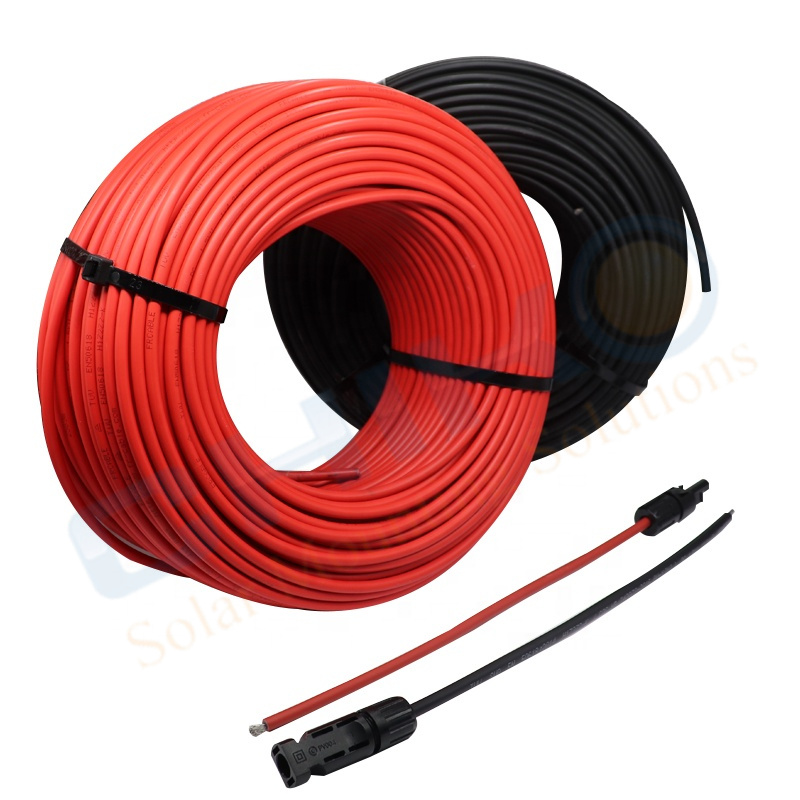

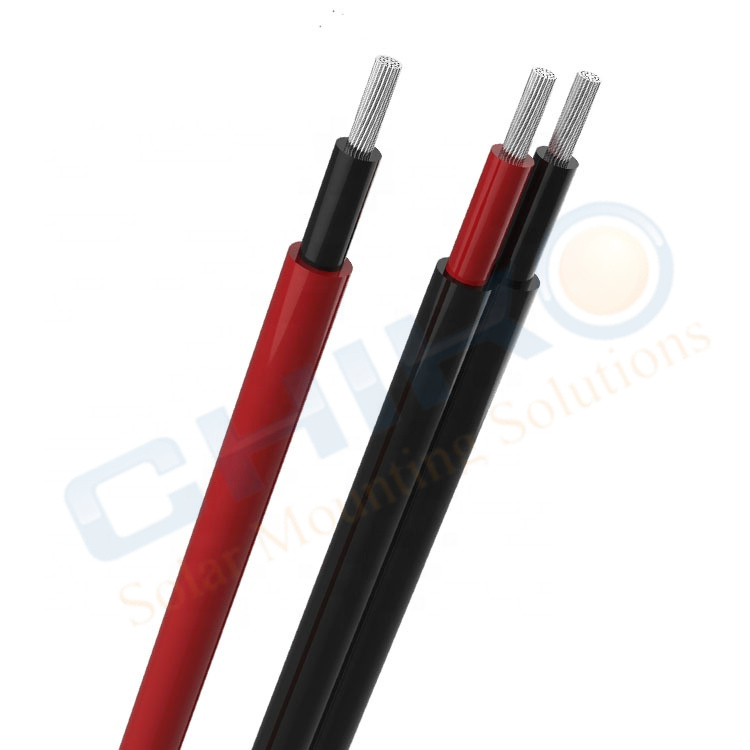

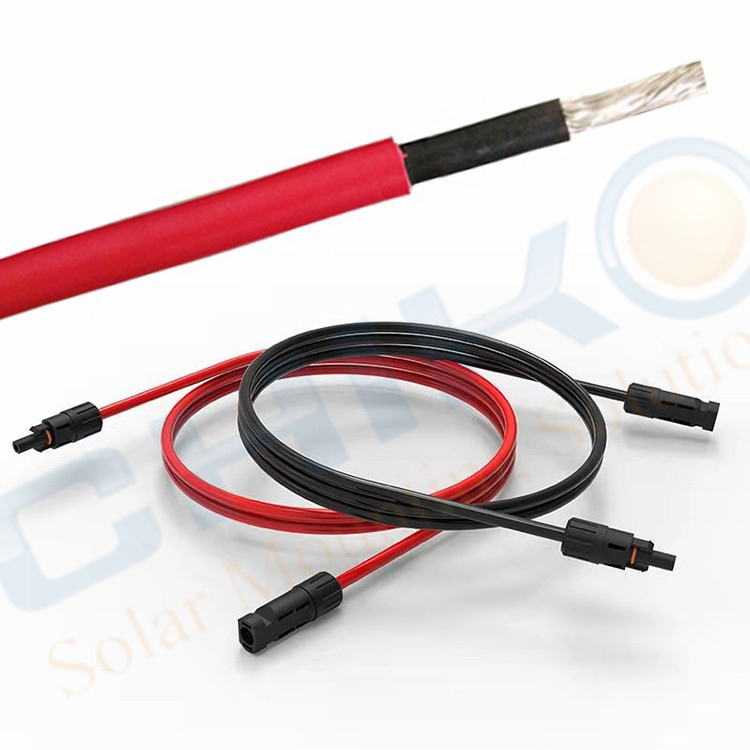

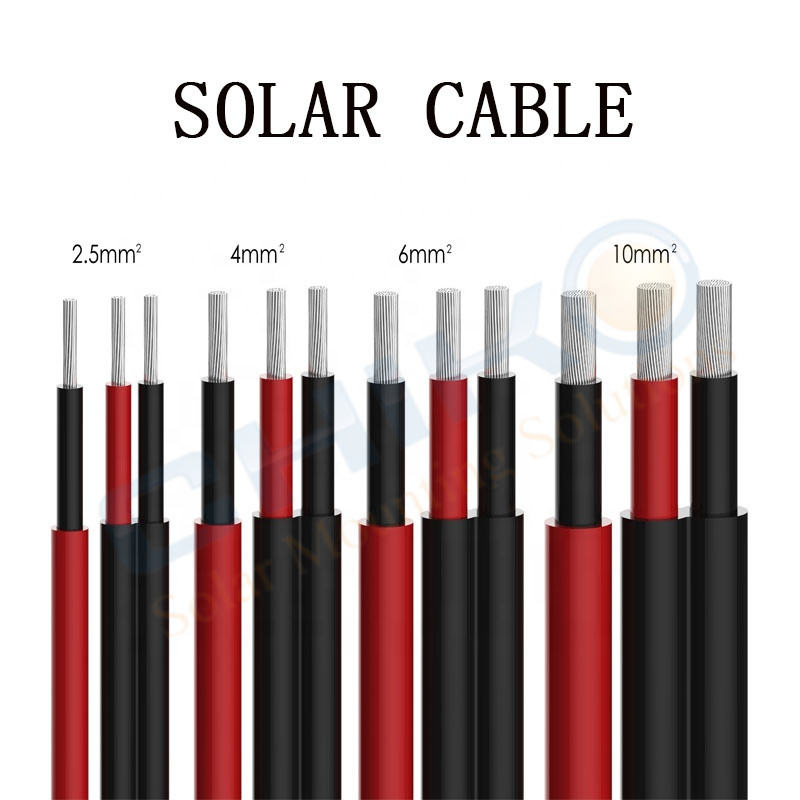

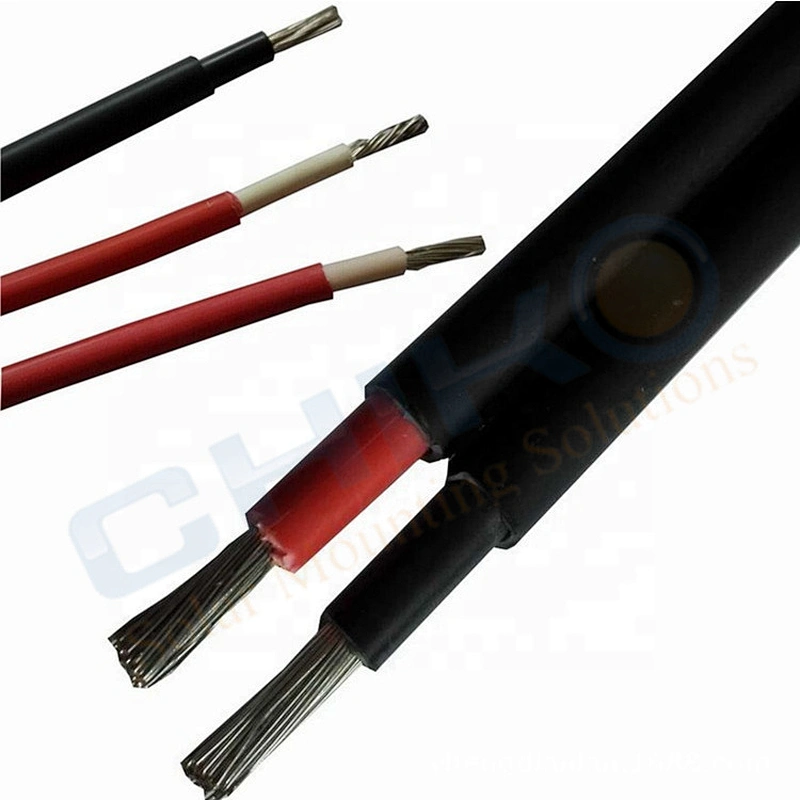

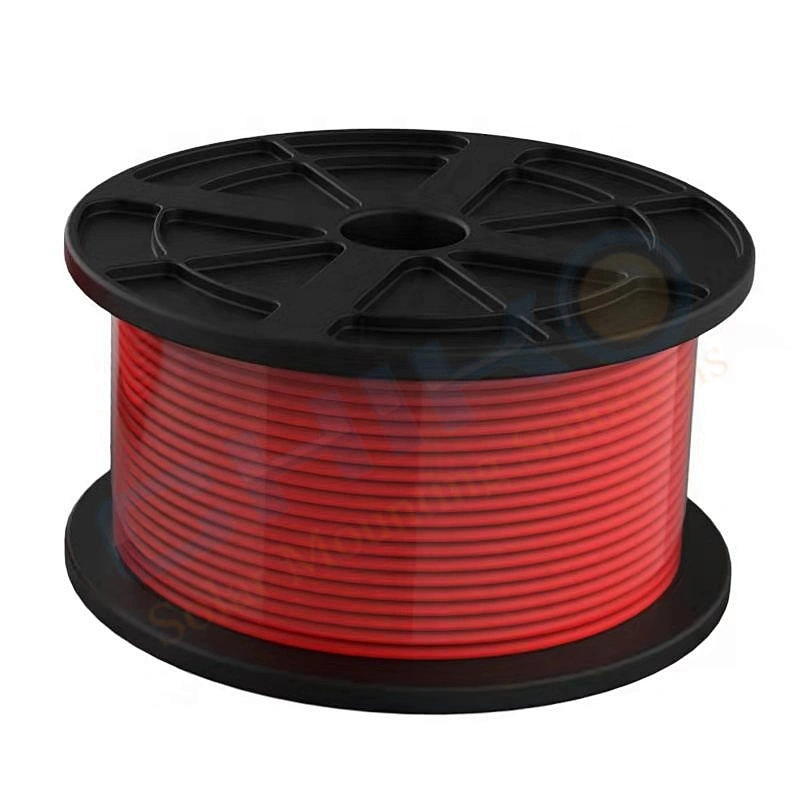

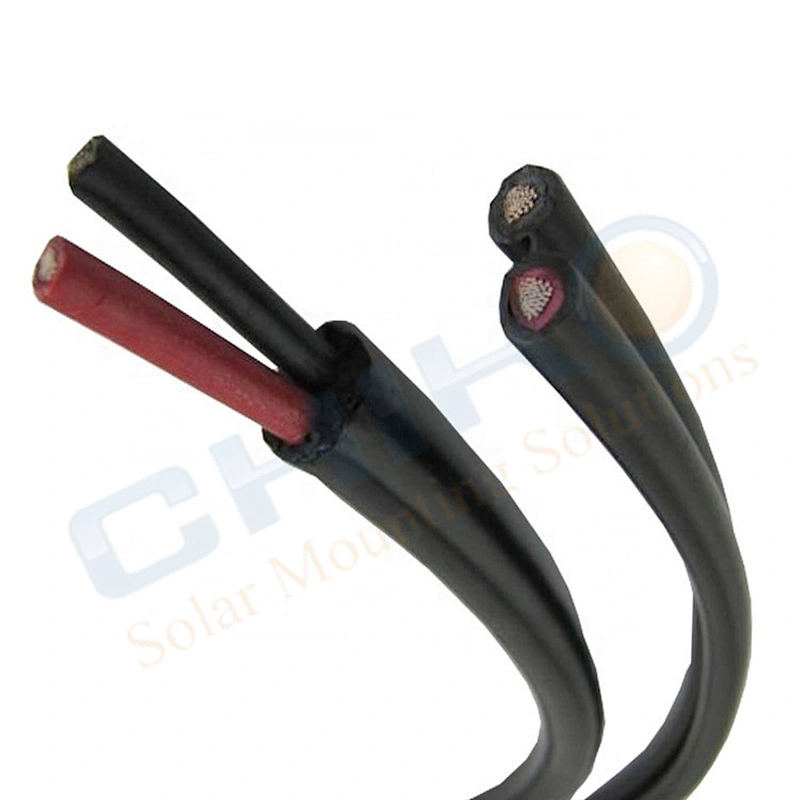

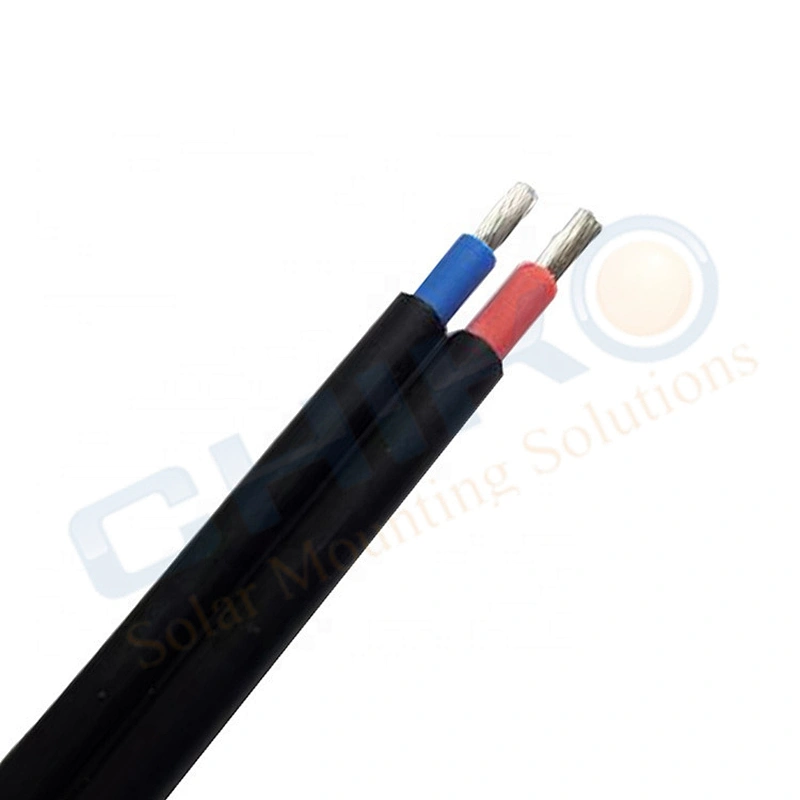

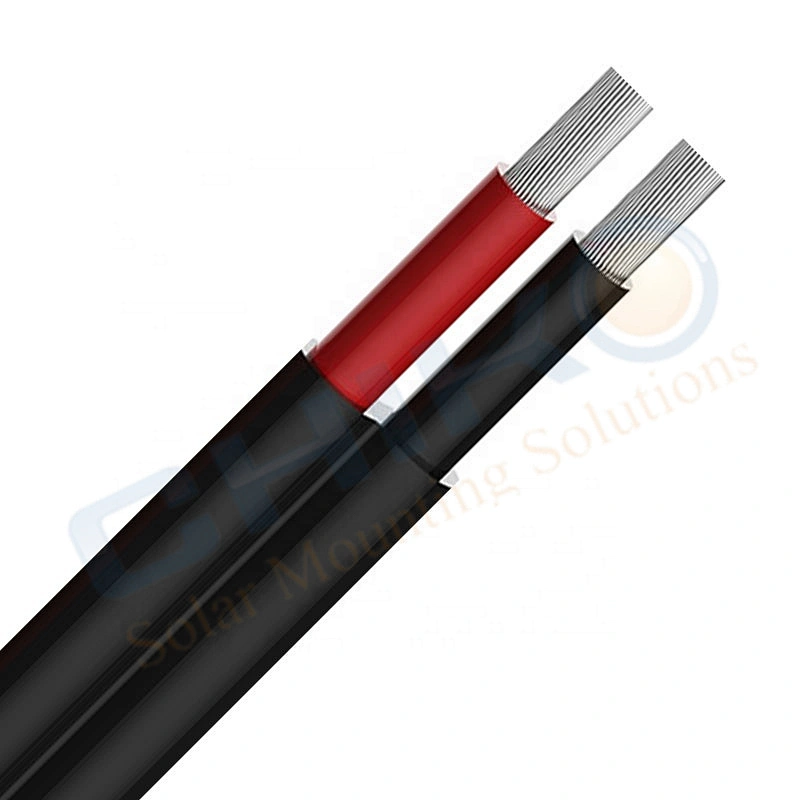

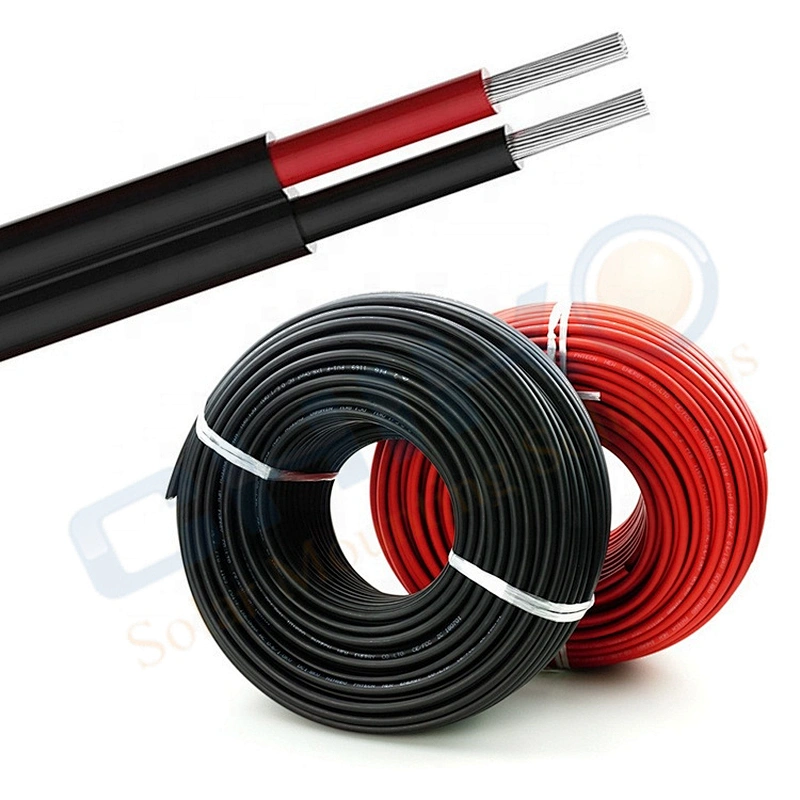

CHIKO Photovoltaic Cable
Specifically designed for connecting photovoltaic system components inside and outside of building and equipment with high mechanical requirements and extreme weather conditions.For permanent installations.

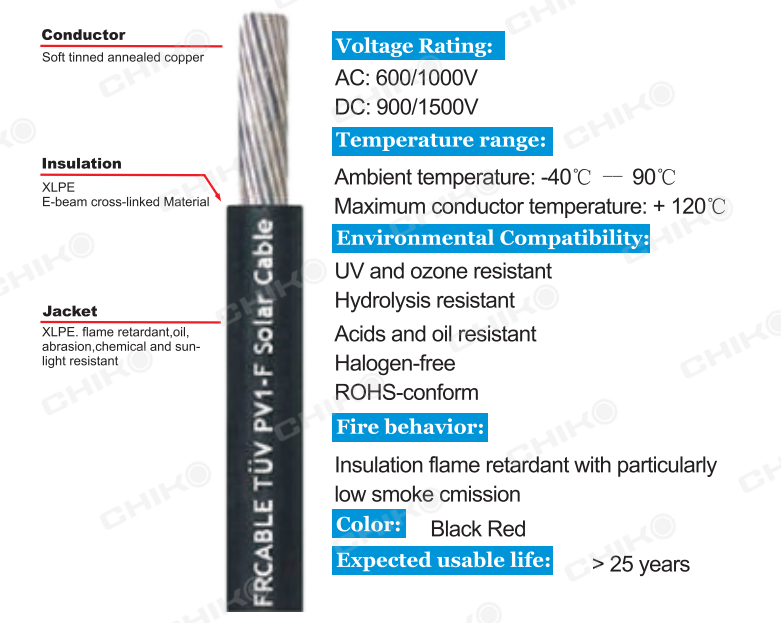

FEATURES AT A GLANCE
·Conductor：Tinned annealed copper
·Insulation：120CXLPE， black ·Jacket：120CXLPE， black ·voltage 600/1000V temperature 120℃·Cable made of electron-beam cross-linked insulation and coating； high resistance against heat， cold， oil， abrasion，ozone， UV and weather； with improved reaction in case of fire； low smoke， halogen free， flame free， flame retardant；
flexible， easy to strip， very low space requirement，extrem-ely mechanically robust， very long fe time.

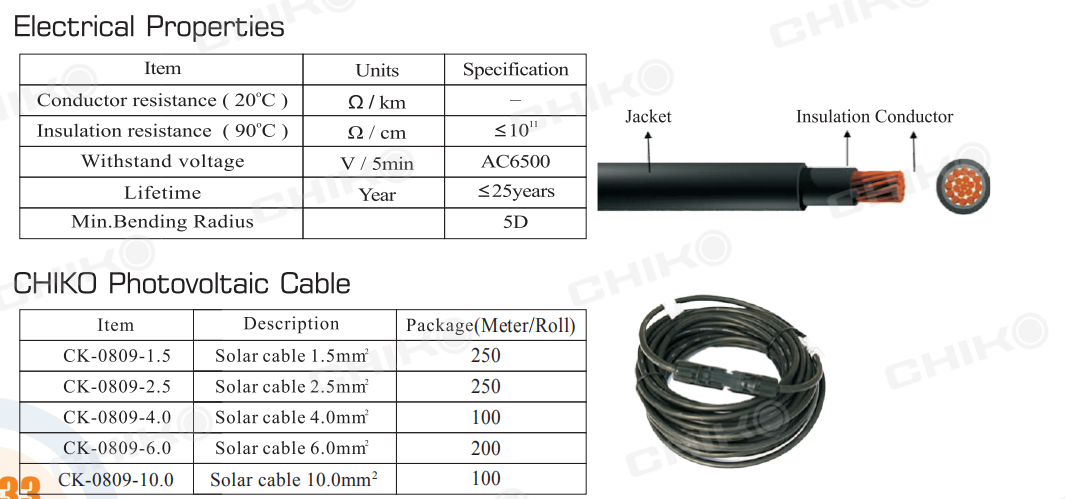

PRODUCT SPECIFICATIONS
Construction | ||||||||||||||||
Conductor | Insulation Standard Thickness | Insulation Standard Dia | Jacket | Outer Dia. | Conductor resistance(20℃) | Max Current Carrying Capacity | ||||||||||
Type | Construction | ConductorDia | Insulation Standard Thickness | Standard Thickness | ||||||||||||
mm² | N/mm | (about)mm | mm | mm | mm | mm | Ω/km | Apm | ||||||||
4.0 | 56/0.3±0.006 | 2.59 | 0.85 | 4.29±0.1 | 0.90 | 6.1±0.2 | 5.09 | 55 | ||||||||
6.0 | 84/0.3±0.006 | 3.17 | 0.85 | 4.87±0.1 | 1.05 | 7.0±0.2 | 3.39 | 70 | ||||||||
SIMILAR PRODUCTS
CHIKO Cable Connector
CK-0807-A/BCK-0807-3A/3BCK-0808-A/BCK-0808-3A/3B PV Junction Box adopts crowned spring and has automatic locking mechanism on plugs to ensure solid connection between contact and connector.
Connector plug(negative) is equipped with buttons that are symmetric at the bottom to ensure the convenience of removal.
Such removal does not need any extra instruments， there-fore，can make sure that the plug is intact.
This advanced product， with easy usage， is more convenient to use than similar roducts.In addition， the product also confirms to DIN VV DEV 0126-3.
CK-0807-A/B-02

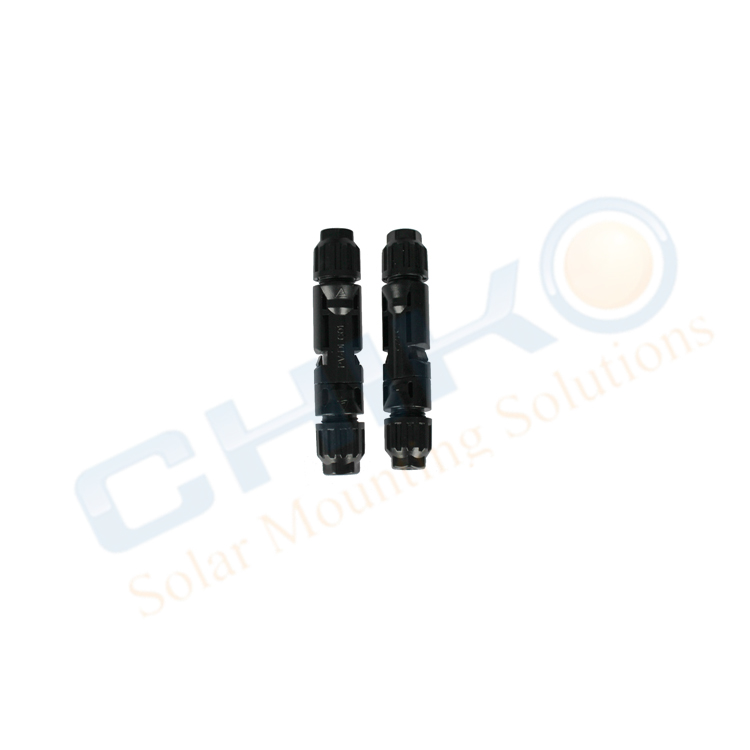

MC4 Single Connector
500 SETS/PKG
CK-0807-2A/2B-02

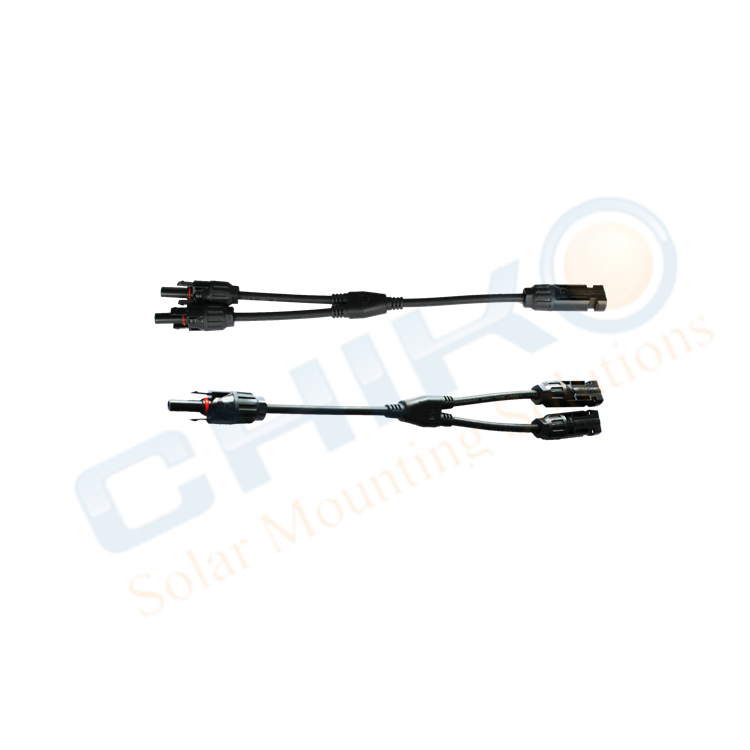

MC4 2-Branch Connector
100 SETS/PKG
CK-0807-3A/3B-02

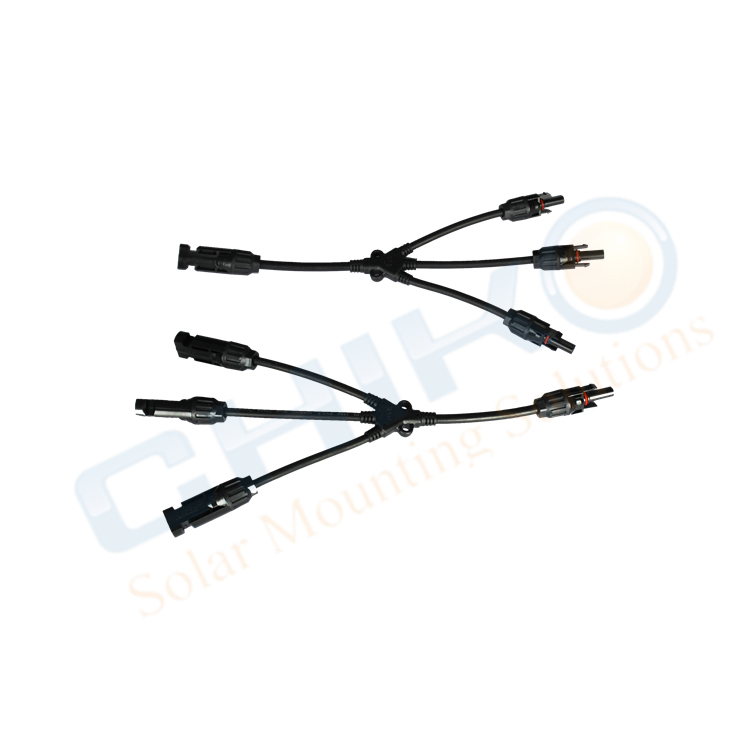

MC4 3-Branch Connector
100 SETS/PKG
CHIKO Sales & Service Network
Logistics team of Logistics company, Do all price terms (FOB CIF DDU DDP etc.)
10-14 days for roof mounting, 14-21 days for ground mounting
Be CHIKO distributor, you can get the support of our global customers

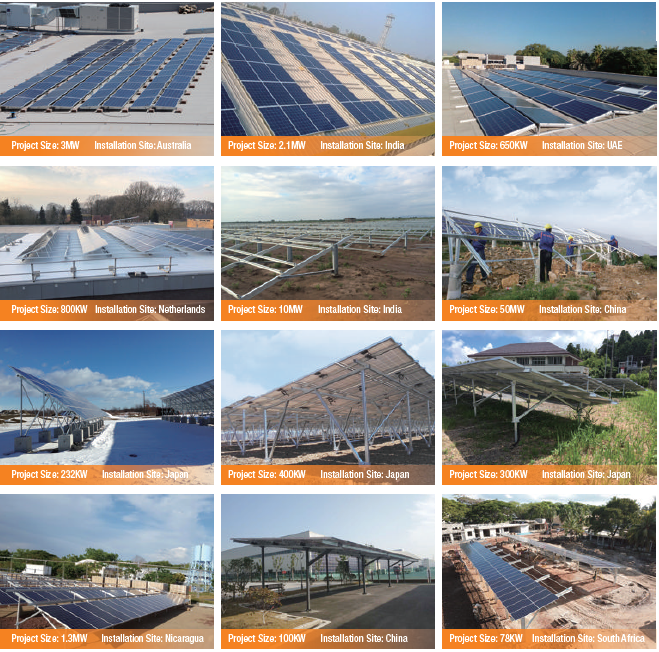

Project Case
