SUS 304 solar cable clip

Model NO.: CK-FS-CP-01

Quantity:

Product Description

Install ::install very easily and fast without any tools
Material::Spring grade stainless steel
Flexible::Can be accommodated up to two cables
Size::two sizes available to suit all cable configuratios
Warranty::10 Years product warranty &20years service life
Certification:ISO/AS 1170
Color:Silver/black
Product name:u shape cable clip
Size:Regular / Customized Size
Place of Origin:CN
Brand Name:CHIKO
Model Number:CK-FS-CP-01
Wind Load:60M / S
Snow Load:1.8KN / M2
Warranty:10YEARS

Cable Accessory

CHIKO SUS Cable Clips

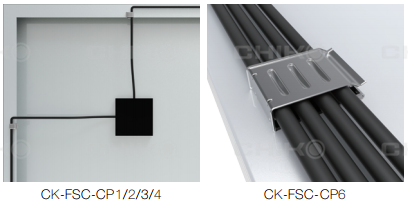

CHIKO Solar SUS Cable provide a simple, fast, and cost effective method of fifixing soalr PV cables to the frame of PV panels.Chiko Solar Cable Clips are made from SUS304 tainless Steel, has a 25+ year service life, and is suitable for all ramed solar modules.

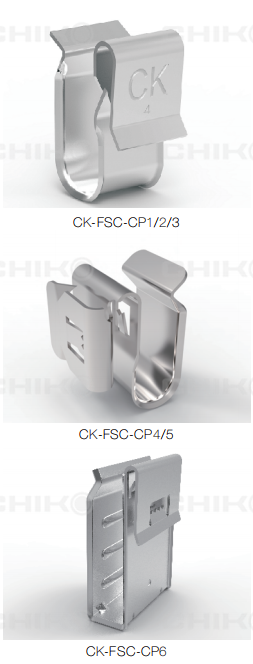

PRODUCT LINE
Item	Product Name	Package	G.W.

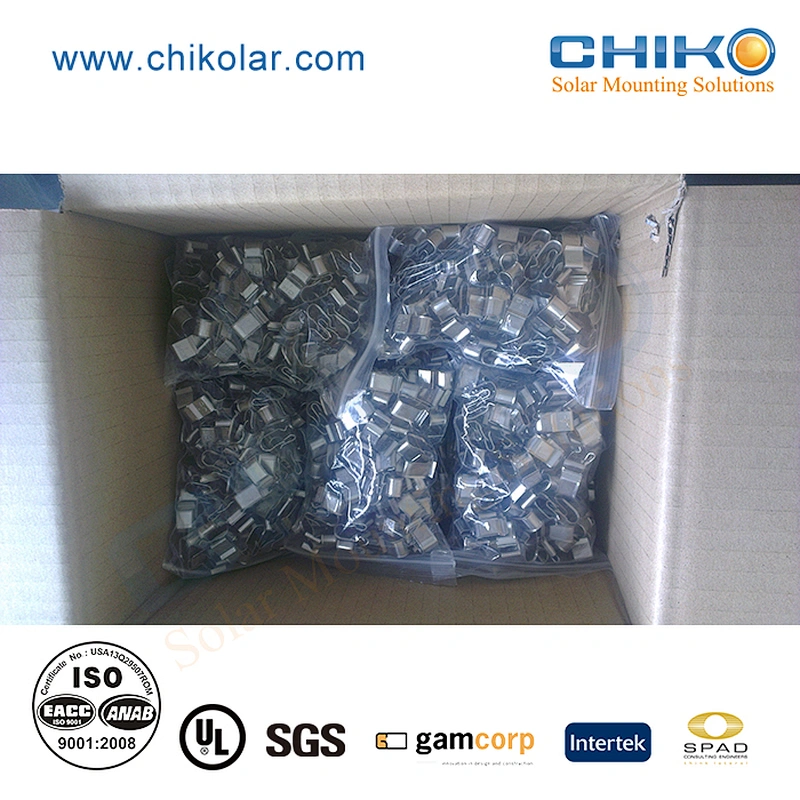

CK-FCS-CP1	Cable clips 2.5 Hold one or two 2.5mm² solar cable	8000PCS/CTN 2000PCS/Box 100PCS/Bag	17KG
CK-FCS-CP2	Cable clips 4.0 Hold one or two 4.0mm² solar cable		18KG
CK-FCS-CP3	Cable clips 6.0 Hold one or two 6.0mm² solar cable		18KG
CK-FCS-CP4	Cable clips 90°/180° 4.0 Hold one or two 4.0mm² solar cable		27KG
CK-FCS-CP5	Cable clips 90°/180° 6.0 Hold one or two 6.0mm² solar cable		28KG
CK-FCS-CP6	Cable clips to hold 3-4 cables,3cables/6mm²;4cables/4mm²		20KG

SUGGESTED QUANTITY REQUIRE

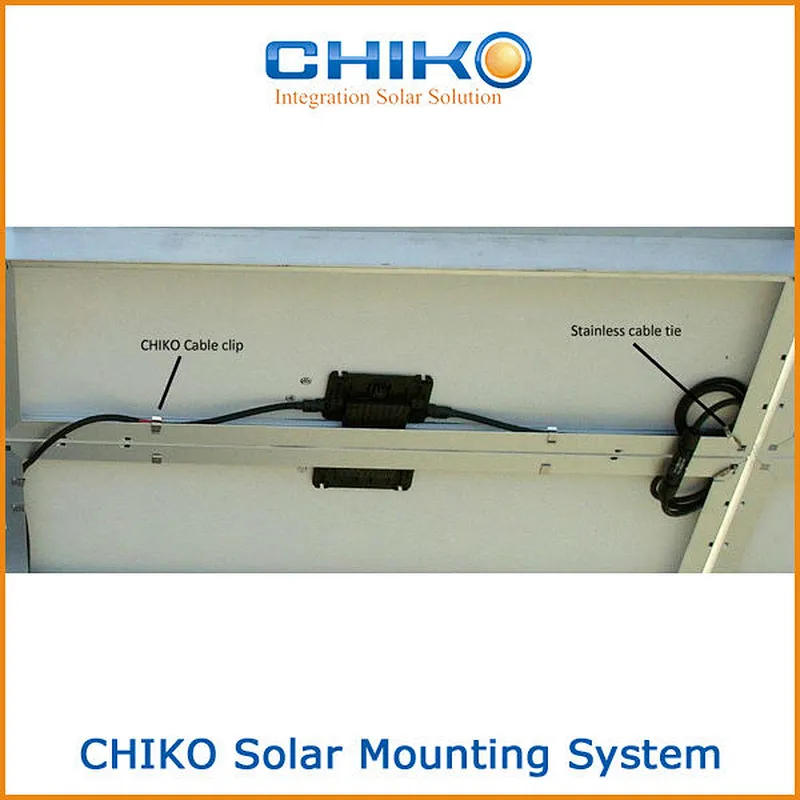

As a guide, each Solar Module would use 3 clips for the leads and 2 clips for the return cable. A few extras may be equired for each system, depending on the site

System size	Panel QTY	QTY	SUGGESTD QTY
1.5kw	6	30	50
2.0kw	8	40	60
3.0kw	12	60	90
4.0kw	16	90	140
5.0kw	20	100	150

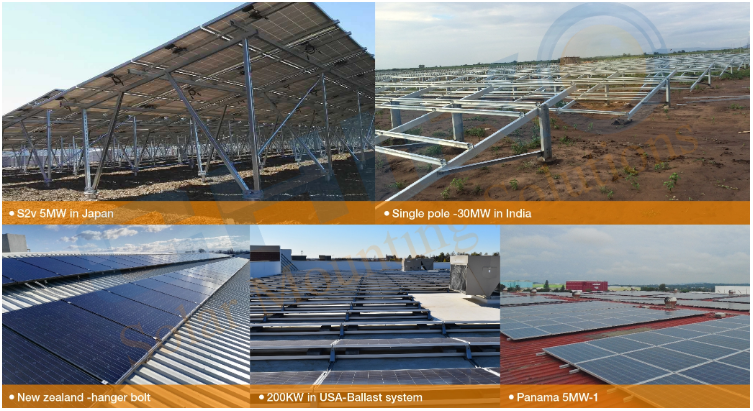

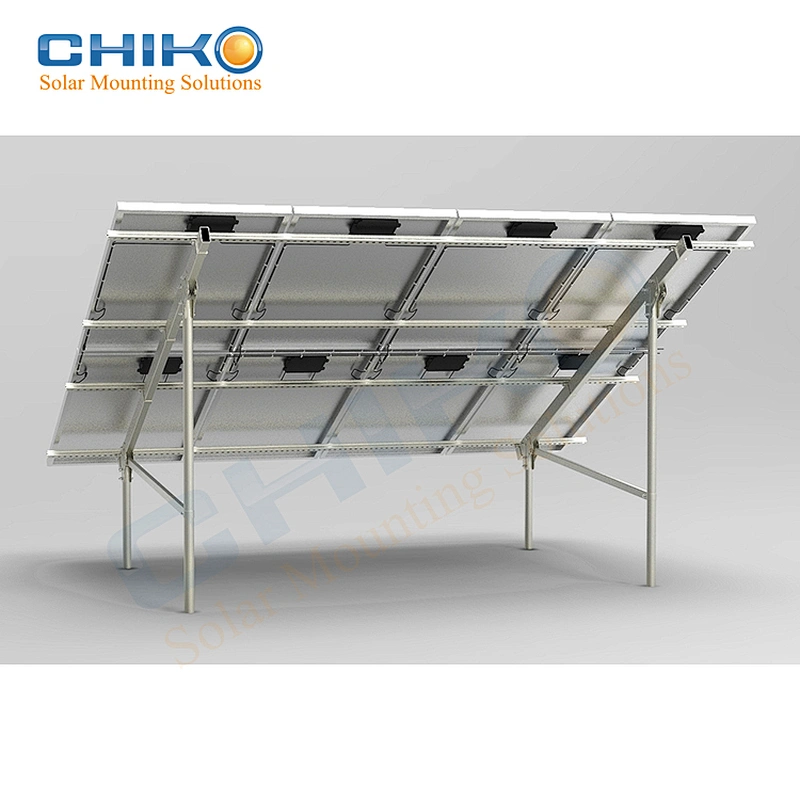

CHIKO PROJECTS

CHIKO focus on manufacturing and design Solar Mounting System for more than 10 years, CHIKO products was installed in more than 120 countries.The customer design is available. Anything further question and more solution, Contact us !

About Us

CHIKO’s origins date to 2008, as a high technology company that specializes in providing the solar mounting solutions in addition to design, manufacturing & selling, for utilities, commercial,industrial and residential projects.

CHIKO strives towards high operational efficiency.

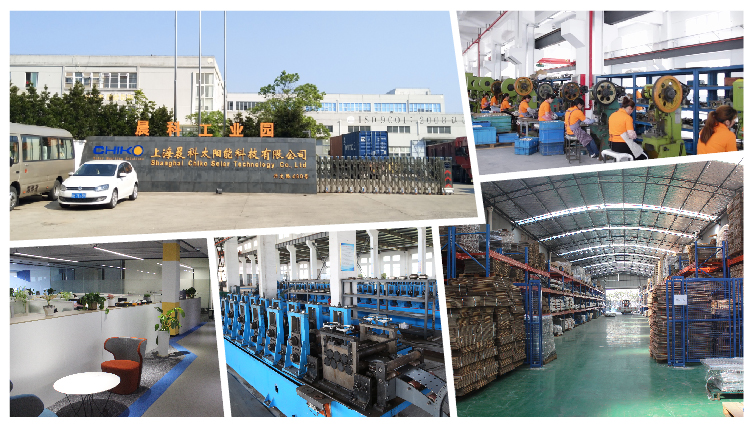

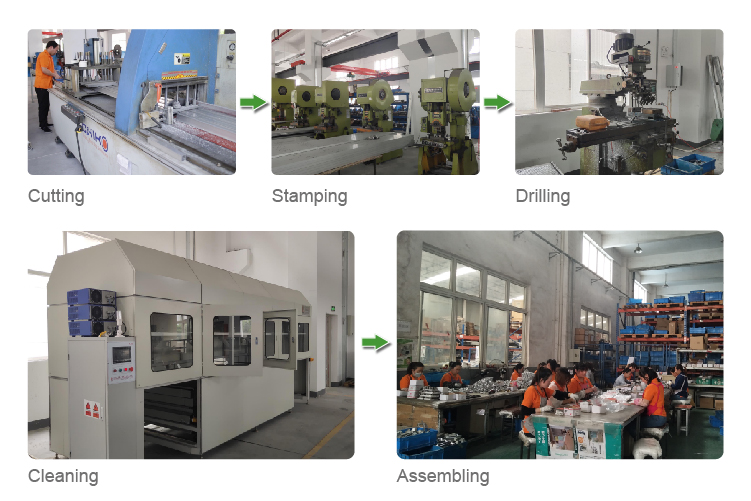

CHIKO operate 2 manufacturing facilities in Shanghai and Suqian, Totally covering 30,000 square meters and 8 produciton lines which allows Chiko maintain 1.8GW of annual capacity for aluminum and steel products. We are aims to accelerate the autmation of the equipments, to achieve it 80% in the next 3 years for automate processing, automate machining, automate cleaning, and automate packing. From production to management, maintain its leading position in the solar industry.

Sales & Service Network

CHIKO Headquartered in Shanghai , China. CHIKO has set up the office and warehouse across several countries including Australia, the United States, Mexico, Nederland, South Africa, United Arab Emirates, India, Thailand, Vietnam, Philippines, and Korea. CHIKO, create the values for customers!
