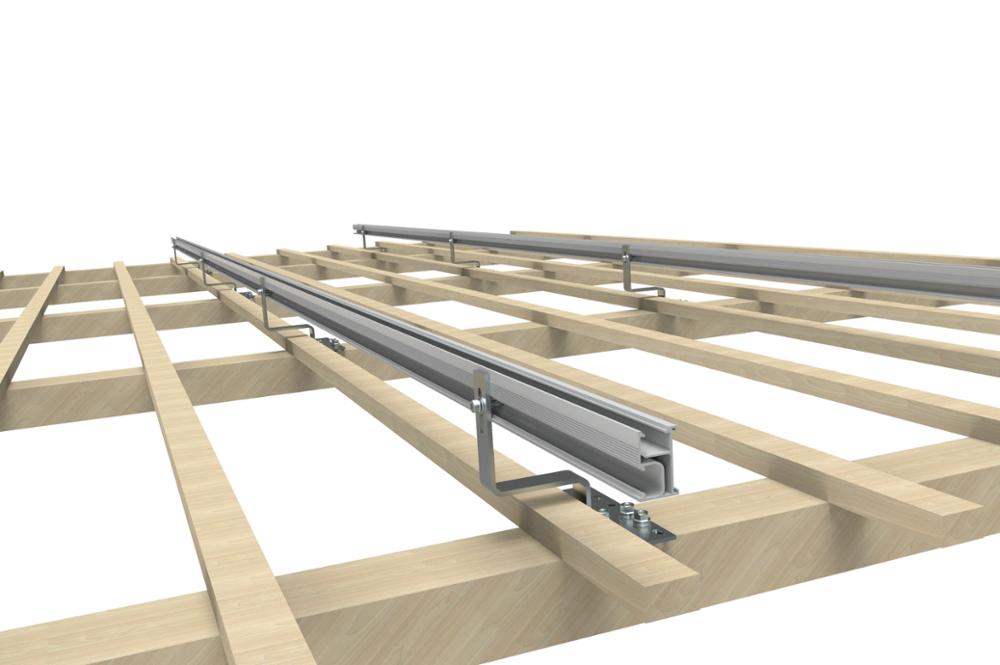

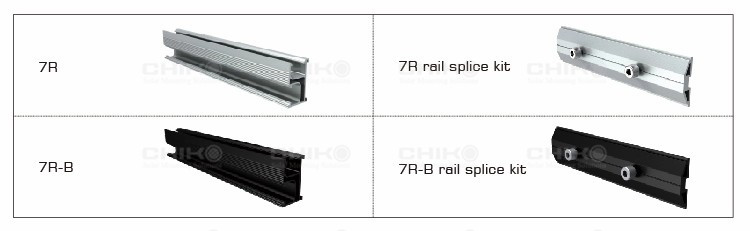

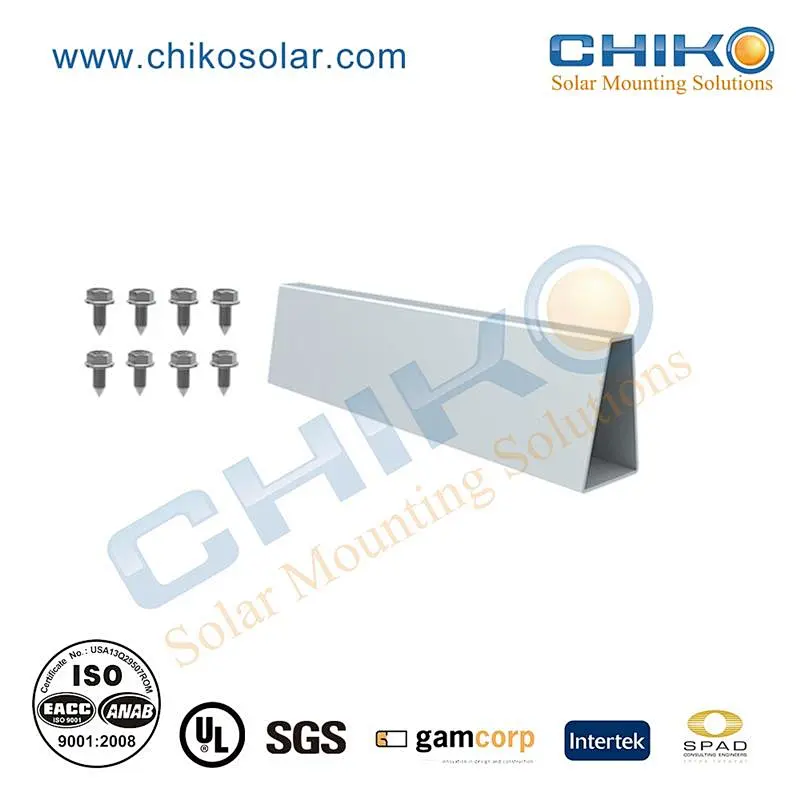

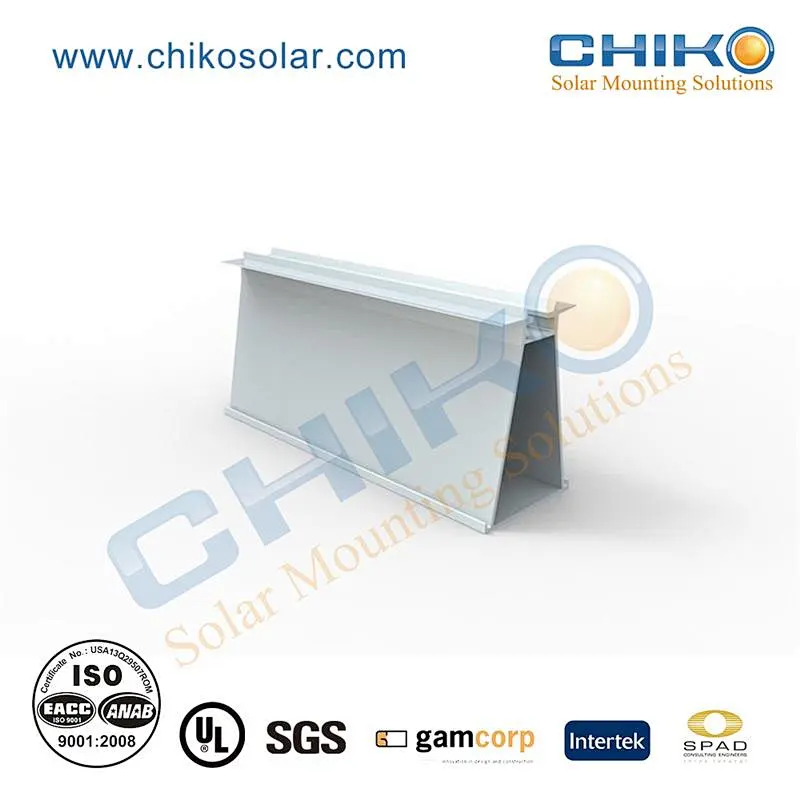

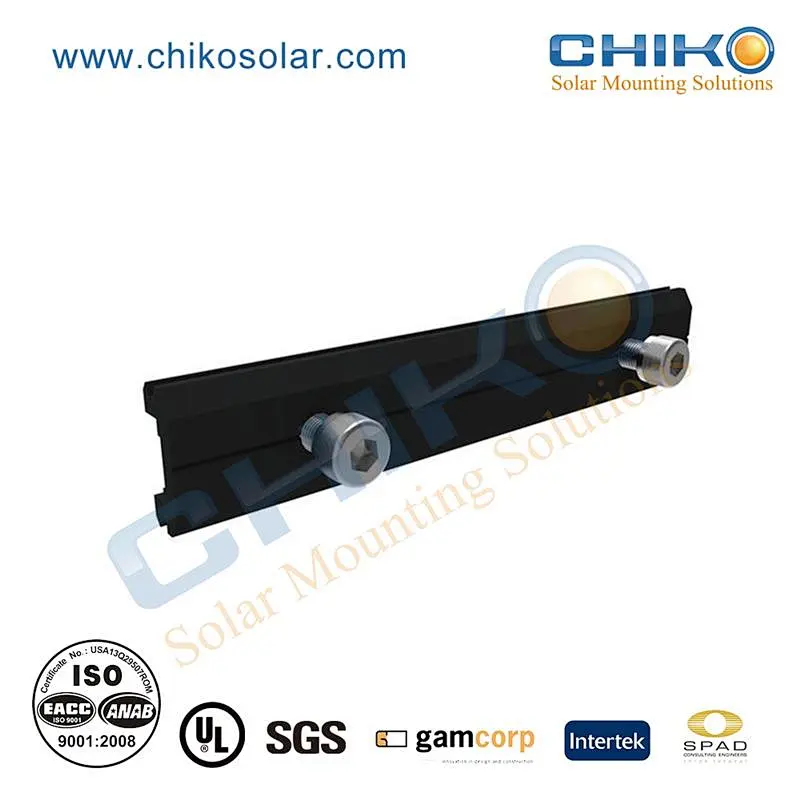

CHIKO #7 Railing System
Made of extruded anodized aluminum AL6005 and SUS304, provide silver and black innovative design, can be applied to universal roof and ground mount.

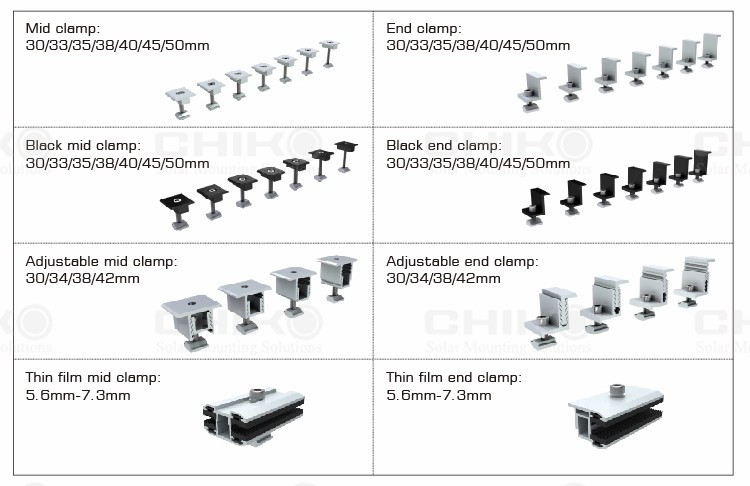

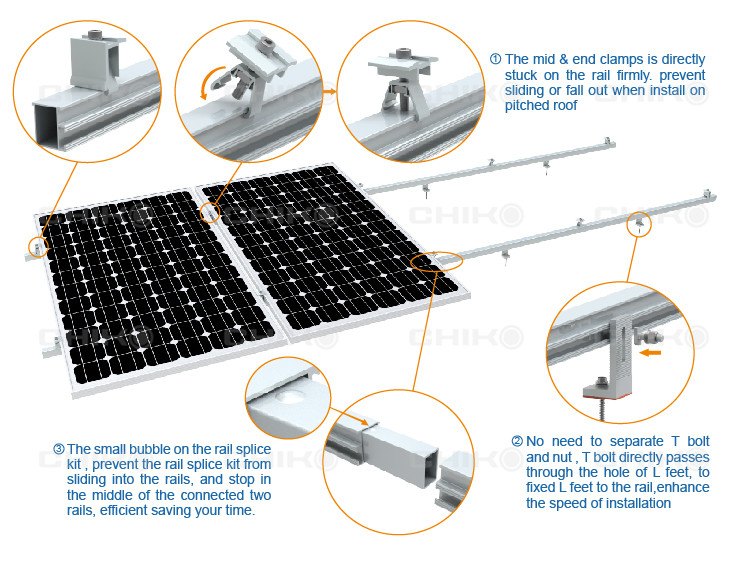

Mid & Clamp Series for #7 Railing system
Made of anodized Extruded Aluminum 6005-T5 , with universal and adjustable clamp to realize 30-50mm framed and 5~7.5 mm thin film solar panel installation.
CHIKO Project

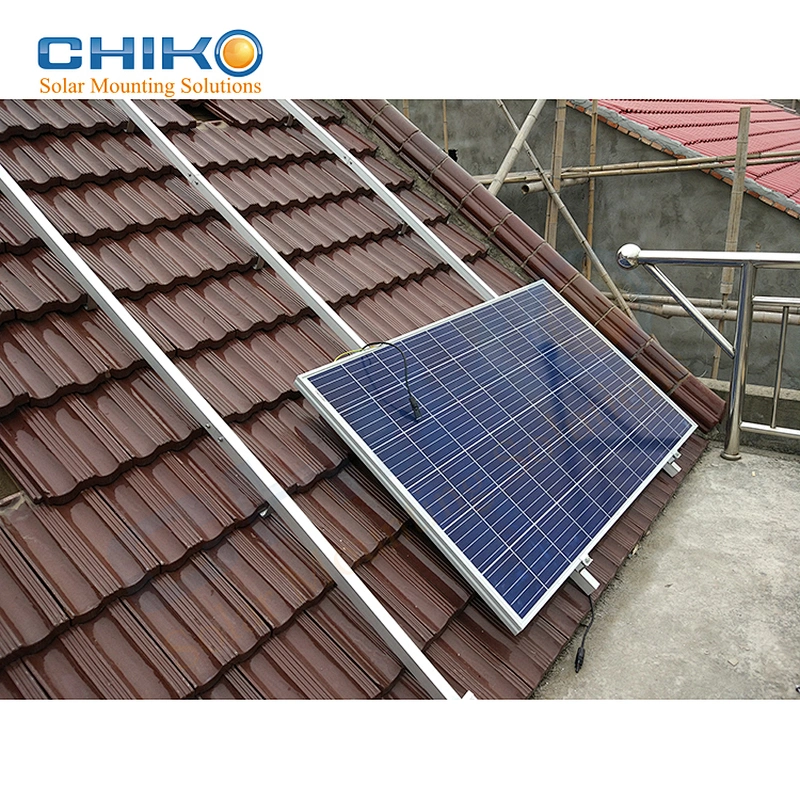

The 5 MW project in China, #7 Railing System for tile roof solar mounting.
CHIKO focus on manufacturing and design Solar Mounting System for more than 9 years, CHIKO products was installed in more than 60 countries.The customer design is available. Anything further question and more solution, Contact us !
Recommend Products
Our service
Please provide Project informations as below when inquiry:
1. The dimension of your common solar panel? ________(L*W*T)
2. The PV array? _________
3. Max Wind speed in your area? _________
4. Tilt angle require for your area? _________
If you have any special require, Click here to contact us. Our design team will help you make the most suitable solution.
1. The dimension of your common solar panel? ________(L*W*T)
2. The PV array? _________
3. Max Wind speed in your area? _________
4. Tilt angle require for your area? _________
If you have any special require, Click here to contact us. Our design team will help you make the most suitable solution.
WHY CHOOSE CHIKO ?
• Cost-effective - Factory manufacturing
• Installation - Special design is available
• Guarantee - Warranty 10 years and service life up to 30 years
• Delivery - Globally warehouse
• Guarantee - Warranty 10 years and service life up to 30 years
• Delivery - Globally warehouse

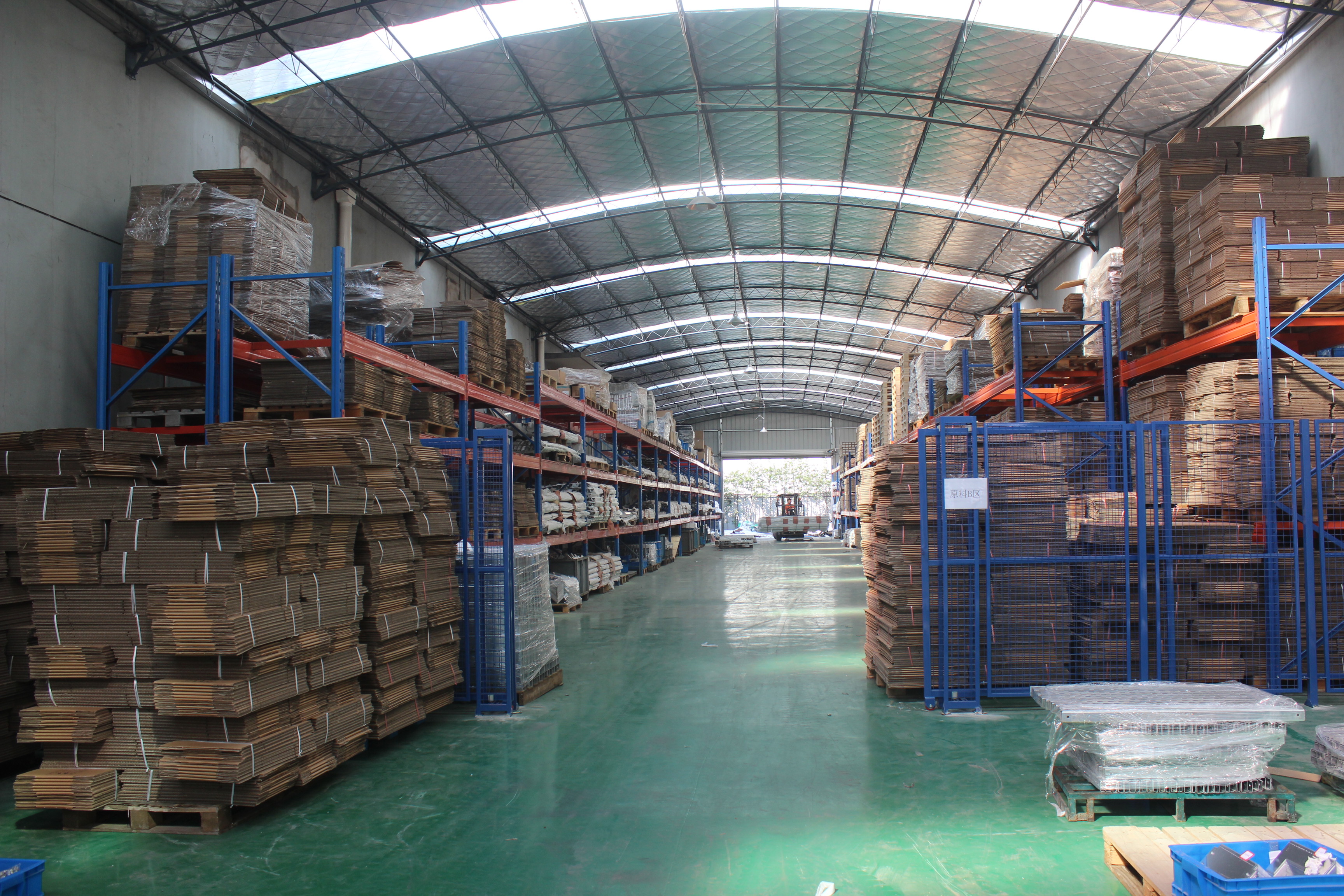

Product packaging
CHIKO Packaging: Put Warranty Chiko solar mounting products into CHIKO standard carton/ wooden pallet/ other customized packages.
CHIKO Shipping Lead-time: 1-2 weeks after the order payment confirm
CHIKO Shipping Lead-time: 1-2 weeks after the order payment confirm
Rail | 8 Pcs/Pkg320 Pcs/Pallet |

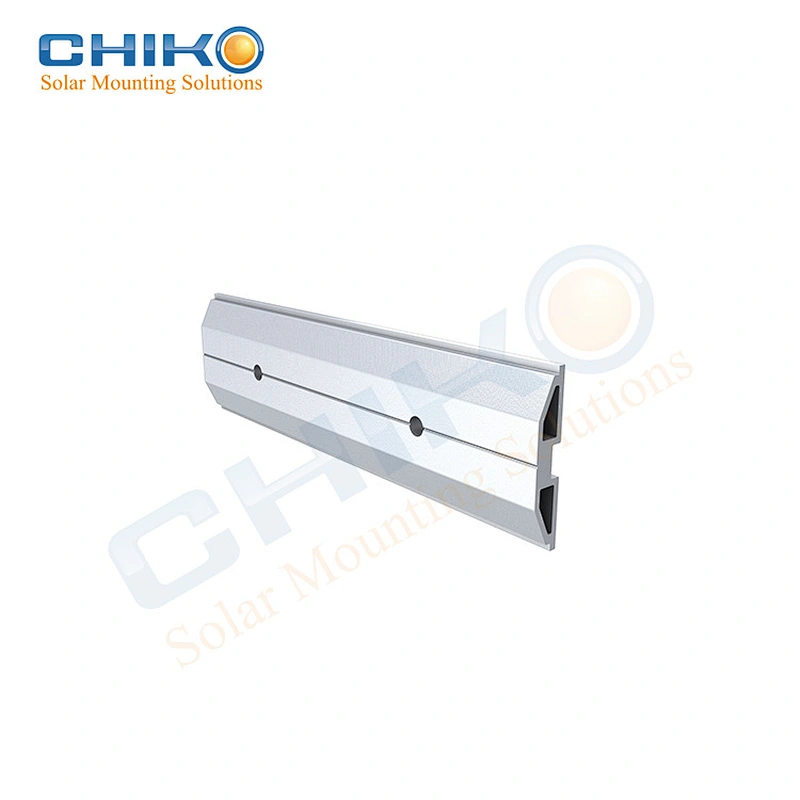

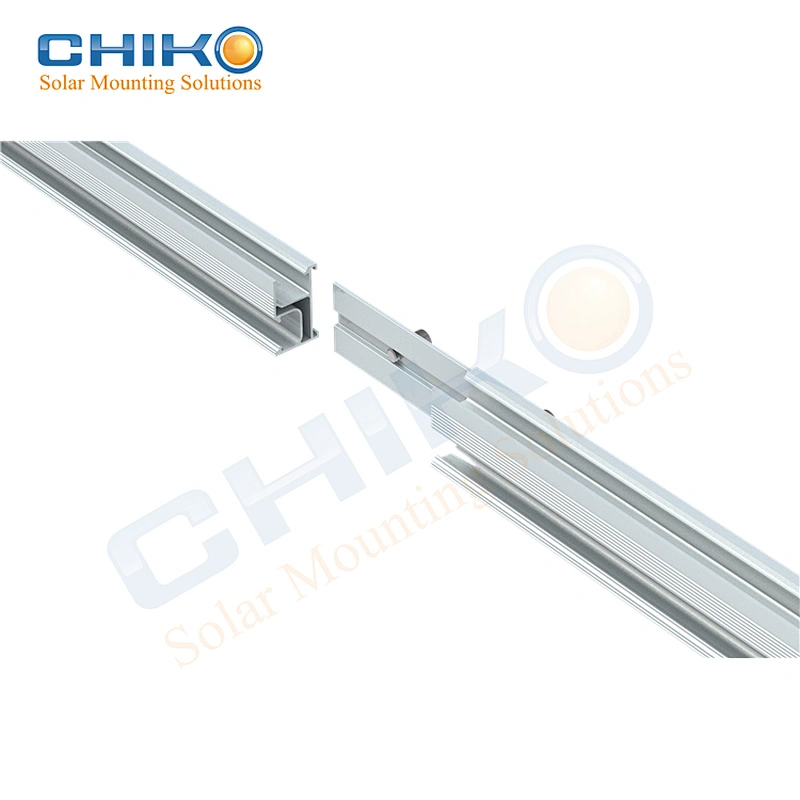

Rail Splice Kit | 50 Pcs/Box10000 Pcs/Pallet |
Mid Clamp | 100 Pcs/Box20000 Pcs/Pallet |
End Clamp | 100 Pcs/Box20000 Pcs/Pallet |
Hanger Bolt | 100 Pcs/Ctn10000 Pcs/Pallet |
Grounding Lug | 140 Pcs/Box28000 Pcs/Pallet |

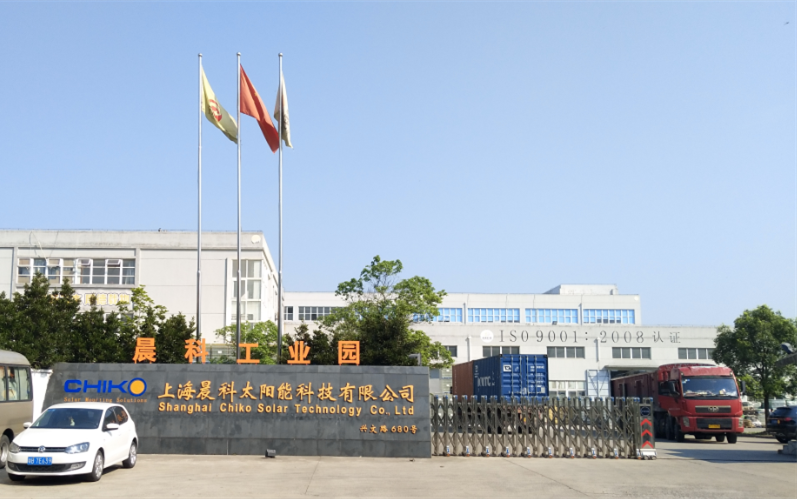

Company Profile
CHIKO Solar designs and manufactures high quality solar mounting systems for pitched roof, flat roof and groundopen areas. Whetherfor small or large-scale projects, standard models or tailor-made systems, we deliver what your need.
CHIKO Solar is a leading manufacturer in solar industry. We provide design & manufacture & sales & service customers support from our head quarters in Shanghai.
We are working with companies from USA, Mexico, Germany, UK, Brazil, Korea, Thailand, Australia, South Africa,Japan etc to provide best services.We are proud of the fact that more than 4GW solar project from worldwide used CHIKO mounting systems.

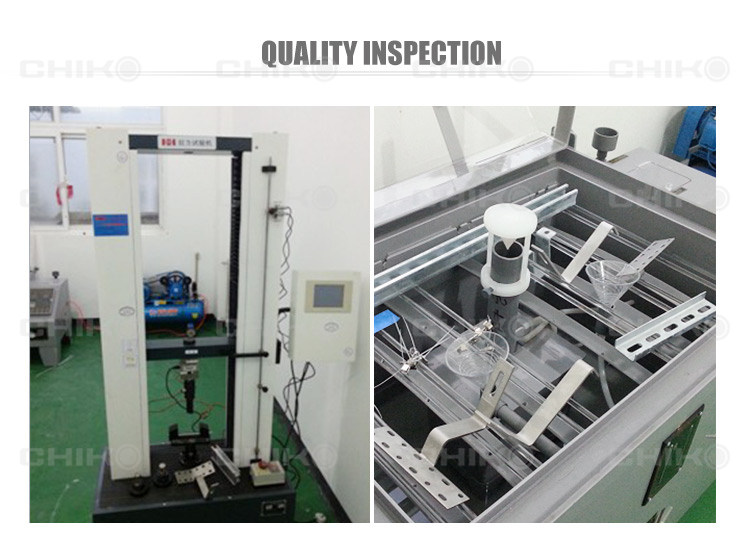

Quality
With CHIKO, you will meet leading highest standard quality. All of our Aluminum profiles are made 6005 T5 with surface protection anodic oxidation 12-15 micron (µ), hooks and bolts are made of Stain- less steel 304.Ground mounting systems that made of Q235 steel will be hot dip galvanized with a averagethickness 80 micron (µ).
