- Specification:Normal
- Material::Anodized Alu & Stainless Steel
- Tilt Angle::10/15/20/30/ Customized
- Standard::Australia & European
- Alu Treatment::Anodized
- Feature::Easy & Quick Installation
- Engineering Service::Acceptable
- Place of Origin:CN;SHG
- Brand Name:Chiko
- Model Number:Trapezoidal roof Mounts
- Wind Load:60M/S
- Snow Load:1.8KN/M2
- Warranty:10 Years
SGS certification structure with clamps for solar panel for trapezoidal sheet iron rooftop
This CHIKO SGS certification structure with clamps for solar panel for trapezoidal sheet iron rooftop is designed for trapezoid metal roofs allowing it to be fixed directly to the purlin, providing a strong and robust solution.
Features of SGS certification structure with clamps for solar panel for trapezoidal sheet iron rooftop
- Enable fast, simple and cost-effective installation
- Al6005-T5. High class anodized aluminium
- Waterproof EPDM rubber intergrated
- Fasteners and rail nut configured fully, to save
- installation time and purchasing extra parts
For trapezoid metal sheet: of SGS certification structure with clamps for solar panel for trapezoidal sheet iron rooftop
CK-FTH-025 CK-FTH-027

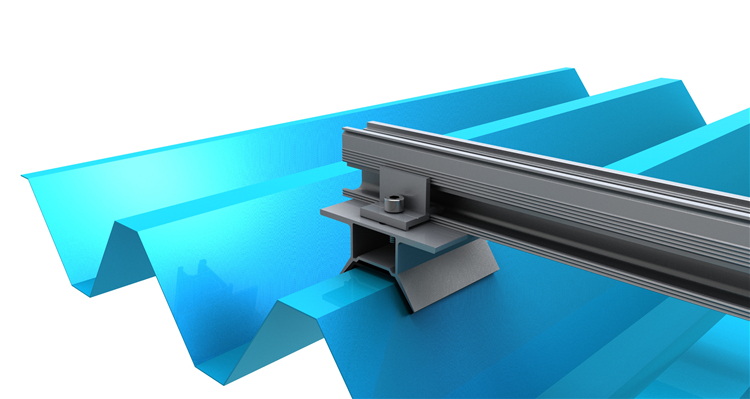

A:Fix rail on trapezoidal metal sheet directly:

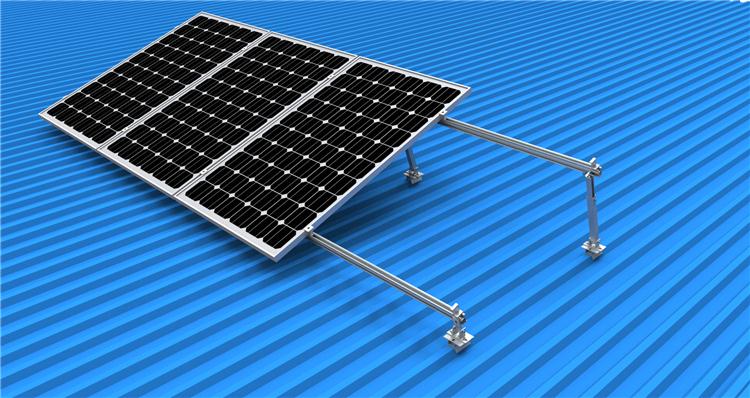

B:Apply with tilt mounting kits:
C.Application of SGS certification structure with clamps for solar panel for trapezoidal sheet iron rooftop

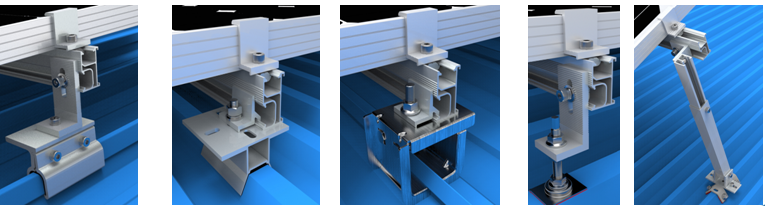

D. More Metal roof solar solution of SGS certification structure with clamps for solar panel for trapezoidal sheet iron rooftop
Chiko Serviceof SGS certification structure with clamps for solar panel for trapezoidal sheet iron rooftop
For Solar Mount Solution and Request Contact Info:
Terry Lynn
Email:chiko(@)chikolar.com
Phone:0086 13816459677
Please provide data as below when inquiry:
1. The dimension of your common solar panel? ________(L*W*T)
2. The PV array? _________
3. Max Wind speed in your area? _________
4. Tilt angle require for your area? _________
If you have any special require, Click here to contact us. Our design team will help you make the most suitable solution.
