- Specification:Normal
- Application:HOME
- Certificate:ASNZS1170/Intertek/SGS/Gamcorp/MCS/Intertek/SPAD
- installation site:rooftop
- Material:Aluminum Alloy/Stainless Steel
- Module orientation:Landscape or portrait
- Module Type:Framed or Frameless
- Duration:25years
- Place of Origin:CN;SHG
- Brand Name:Chiko
- Model Number:CK-FTH-013
- Wind Load:60M / S
- Snow Load:1.8KN / M2
- Warranty:10 Years
Metal roof

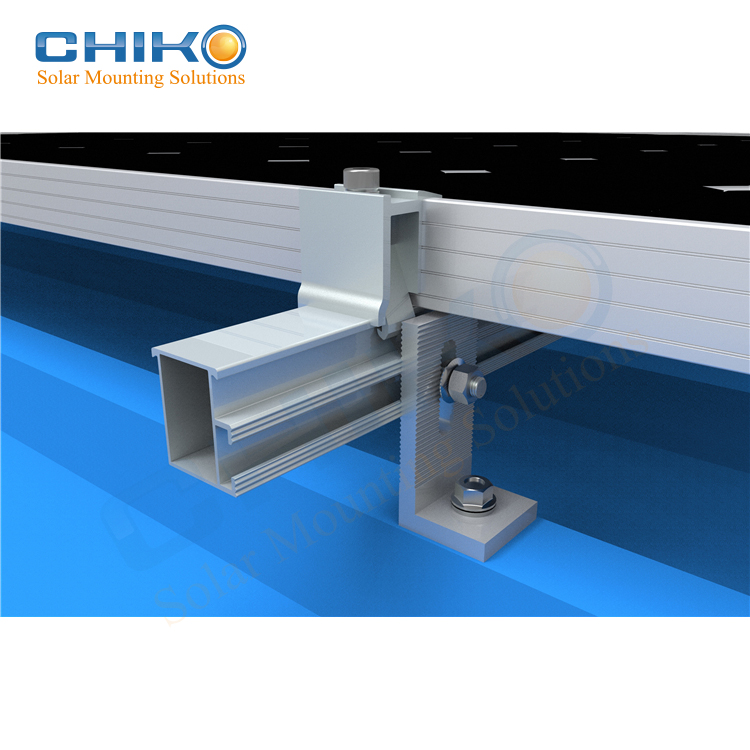

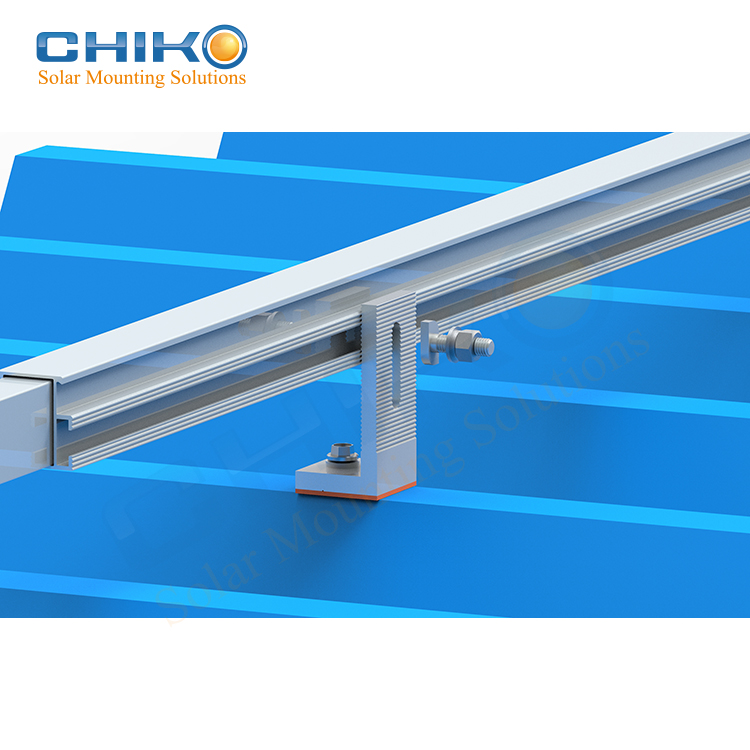

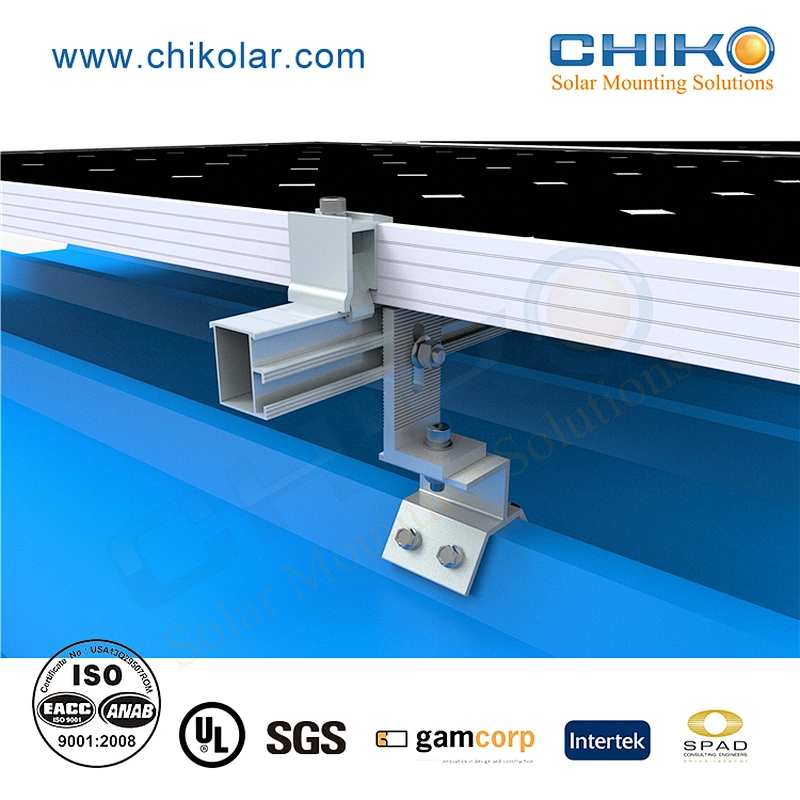

CHIKO L Feet Mounts CK-IL Series

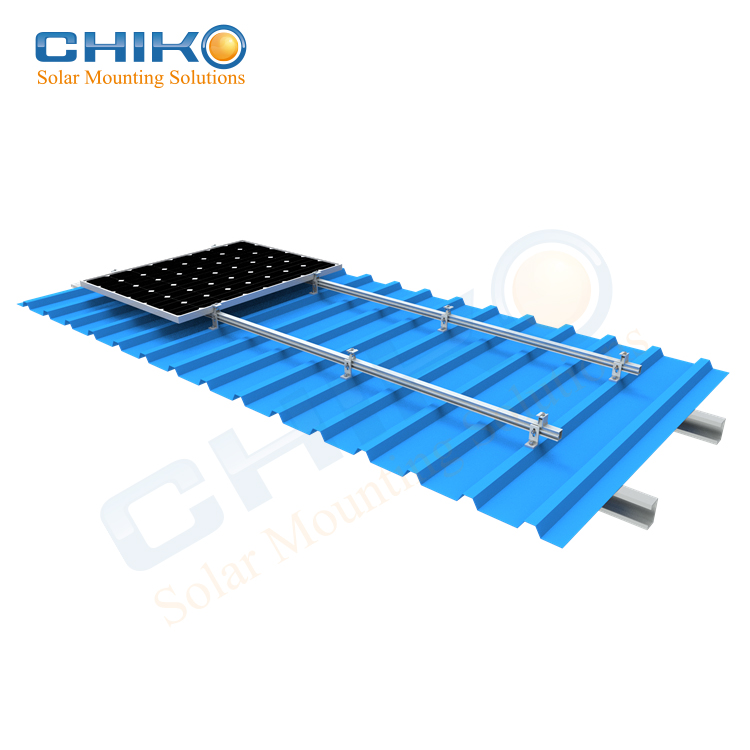

Engineered for the maximum flexibility possible in designing and planning for various metal roof solar system installation. It is applicable to install the usual module to flush with the pitched roof.
Makes the installation easy and quick to save your labor cost and time.
This mounting system are suitable for Corrugated roof sheet, Trapezoidal metal roof and Standing seam roofs.
No. | Item No. | Descriptions | Quantity (1x8=8 Panels) | |||
1 | CK-FTS-162R43-1 | CHIKO Tin Roof Clamp L Feet | 12 | |||
2 | CK-FT-R43B1-4200 | CHIKO ALU Rail No.43--4200mm | 4 | |||
3 | CK-154R4F-40-40 | CHIKO Mid Clamp 40 mm For 43 Rail | 14 | |||
4 | CK-146R4F-30-40 | CHIKO End Clamp 40mm for 43 Rail | 4 | |||
5 | CK-573-1-150 | CHIKO Rail Splice Kit For 43 Rail | 2 | |||
6 | CK-GTC-R3H | CHIKO Grounding Clip for 043# Rail | 14 | |||
7 | CK-076R43-3-20 | CHIKO Grounding Lug for 043Rail | 2 | |||
Quantity will be adjusted upon the spacing and arrays | ||||||
Benefits
• Universal used for Trapezoidal and corrugated roofs
• Portrait or Landscape orientation
• Pre-assembled
• Made of high class material AL6005-T5
• Pre-Applied EPDM pad
• Portrait or Landscape orientation
• Pre-assembled
• Made of high class material AL6005-T5
• Pre-Applied EPDM pad
THE APPLICATIONS
CHIKO L feet have been widely used on universal corrugated metal sheet roof. It can fix to the roof rafter directly. Also, it can be applied with hanger bolts and CHIKO deigning roof clamps.

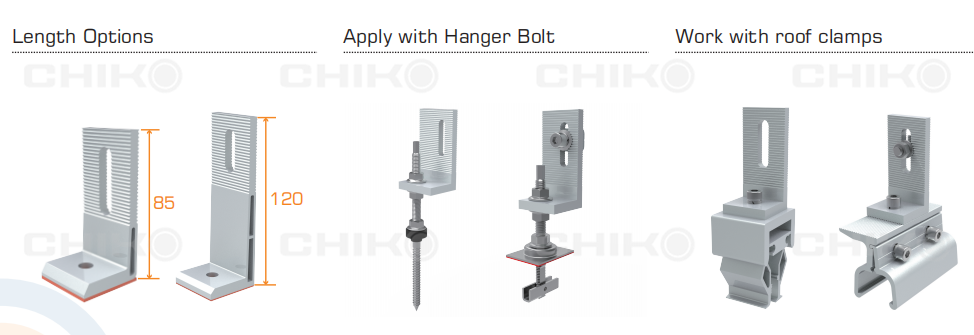

Length Options
It can be fixed on metal roof whether wooden rafter or steel purlin.This solution is most cost-saving and install conveniently

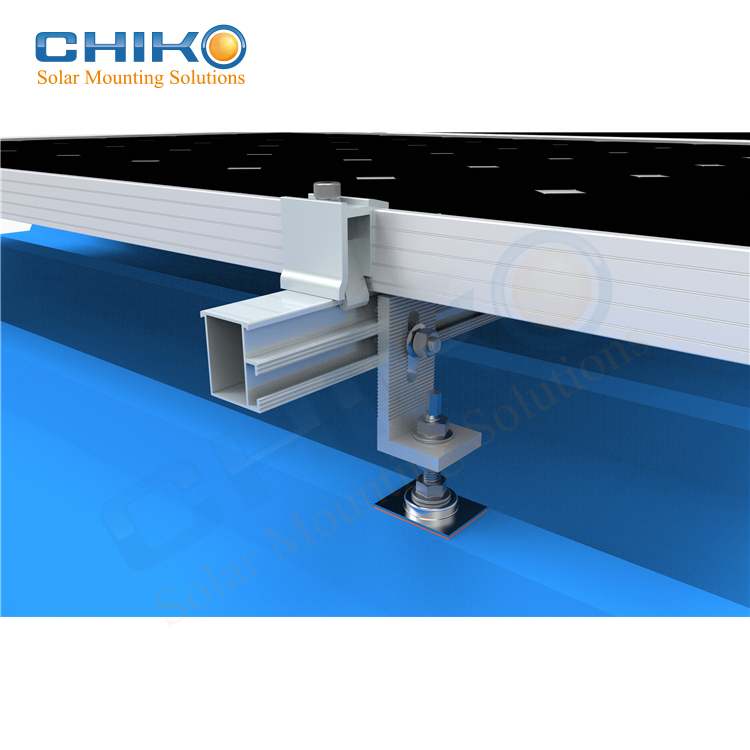

Apply with Hanger bolt
Hanger bolt is more stable than L feet only. It can make structure taller so that air can go throungh.

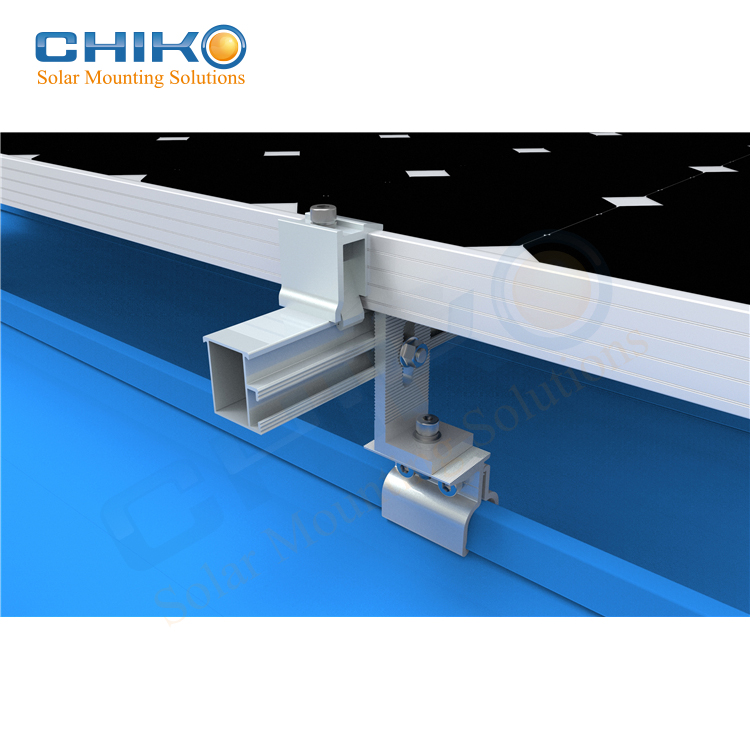

Apply with roof clamps
Roof clamp can clip with metal roof without drilling. Flexible with many kinds of metal roof.

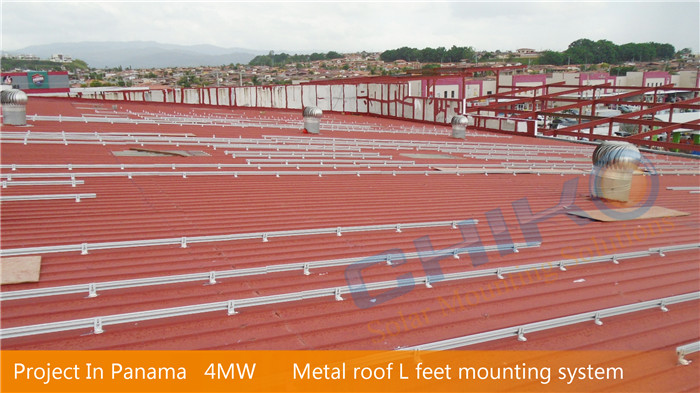

CHIKO PROJECTS
CHIKO focus on manufacturing and design Solar Mounting System for more than 9 years, CHIKO products was installed in more than 60 countries.The customer design is available. Anything further question and more solution, Contact us !
