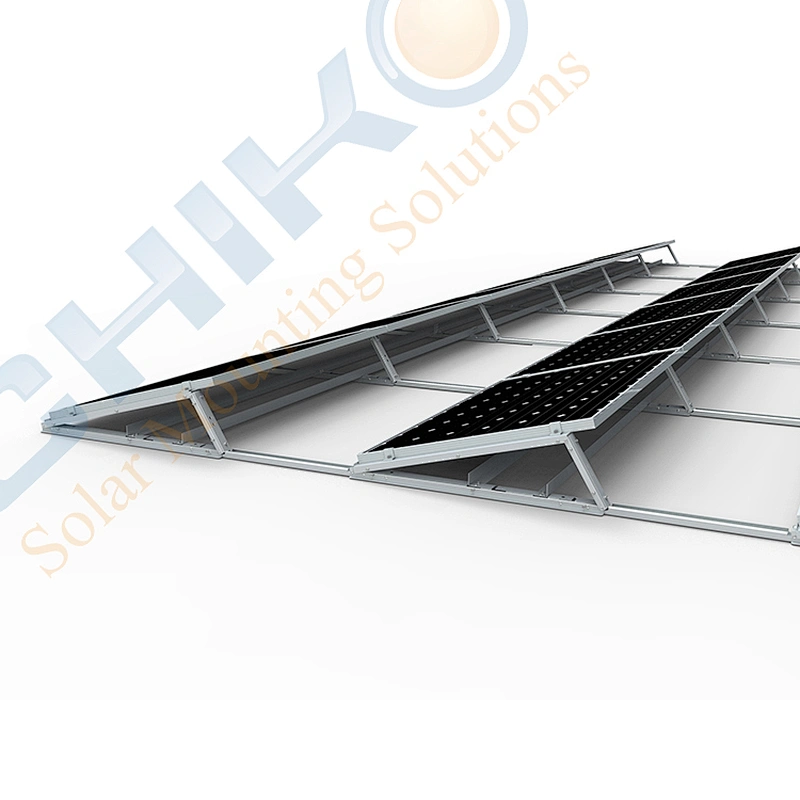

CHIKO Flat Roof Solar Mount Structure

Model NO.: CK-Flat Roof
Price:: USD 0.03-0.05 / watts
Minimum order quantity: 50000 watts
Supply Ability: 1000000.0 watts / Month
Country of Origin: SHANGHAI,CHINA

Quantity:

Product Description

Brand:Chiko
Product type:Solar panel mounting
Application:Home
Warranty:10 Years
Material:Aluminum Alloy.Stainless Steel
Color:Natural
Certification:ASNZS1170/UL/SGS/Gamcorp/MCS/Intertek/SPAD
Specification:Normal
Installation Site:Flat Rooftop
Place of Origin:CN;SHG
Brand Name:CHIKO
Model Number:CK-Flat Roof
Wind Load:60M/S
Snow Load:1.8KN/M2
Warranty:10 Years

Products Description

CHIKO FLAT ROOF SOLAR MOUNT BRACKET

The Chiko flat roof ballast solar mounting system, with innovative design to provide fast & easy installation. It is made of
extruded anodized aluminum and stainless steel. This product provide strong durable, anticorrosion of antirust and flexible application for any residential and industrial solar panel installation.

CHIKO focus on manufacturing and design Solar Mounting System for more than 9 years, CHIKO products was installed in more than 60 countries.The customer design is available. Anything further question and more solution, contact us!

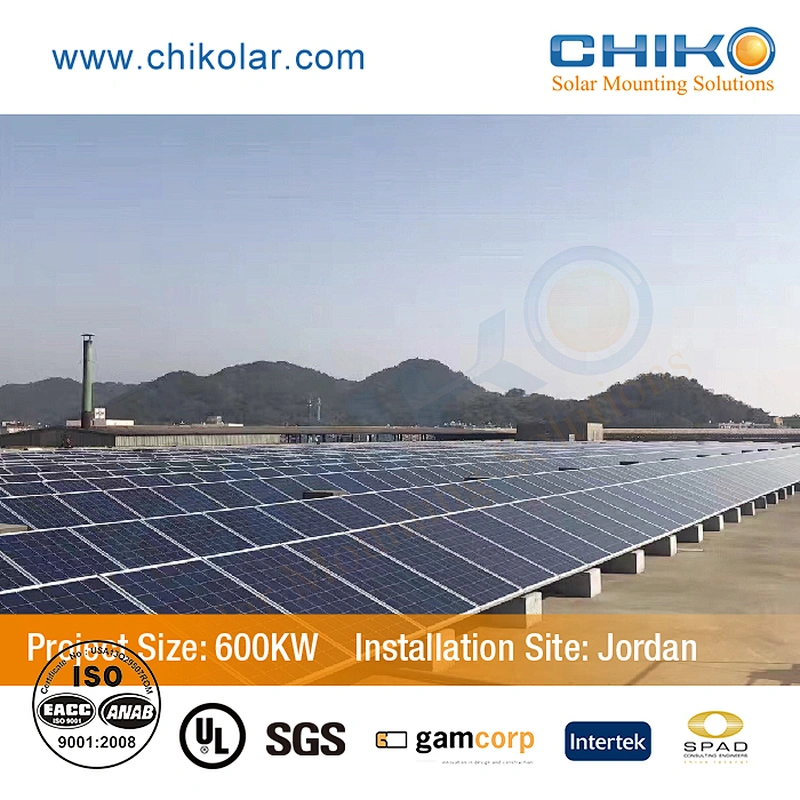

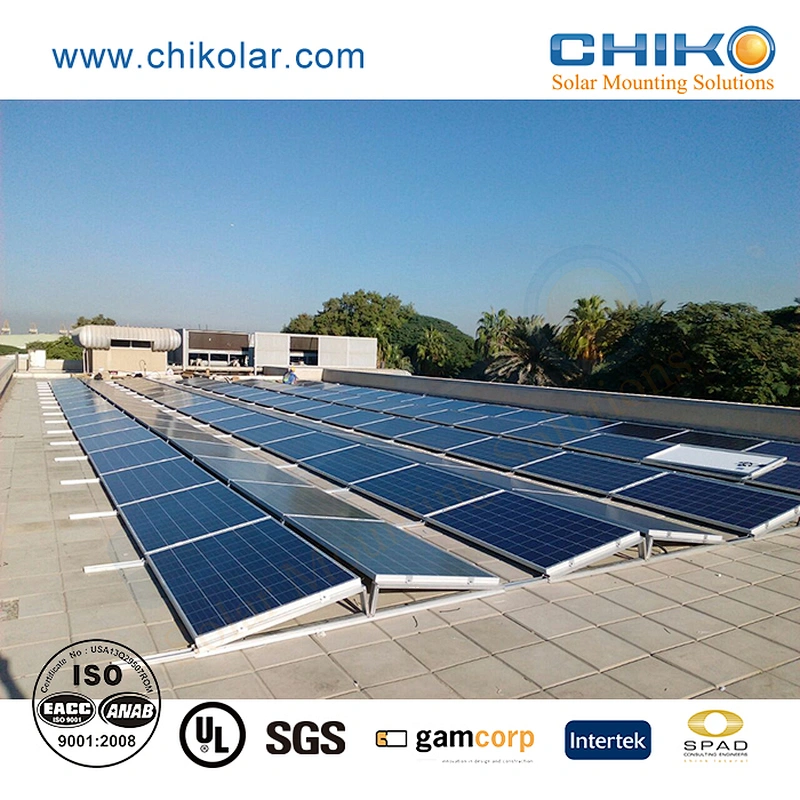

A. BALLAST MOUNT SOLAR SYSTEM

No need drilling on rooftop surface, pressed be concrete ballasts.

Customized angles are supporting

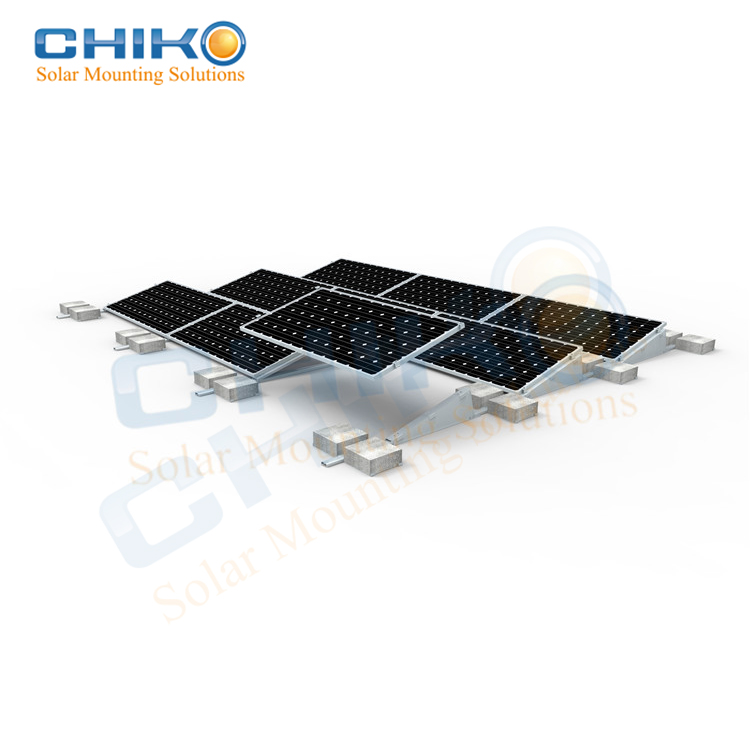

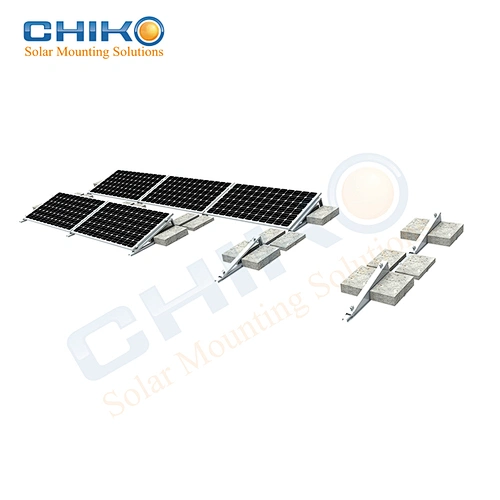

Ballast I-2 Mount

• Most universal
• 1 panel Landscape orientation & East to West
• 10°,15°,20°,25°,30°tilted angle available
• Various modules configurations are possible
• Made of AL 6005-T5
• Highly class anodizing on surface treatment
• Pre-assembly and foldable
• Non-penetration to roof & light weight roof loading

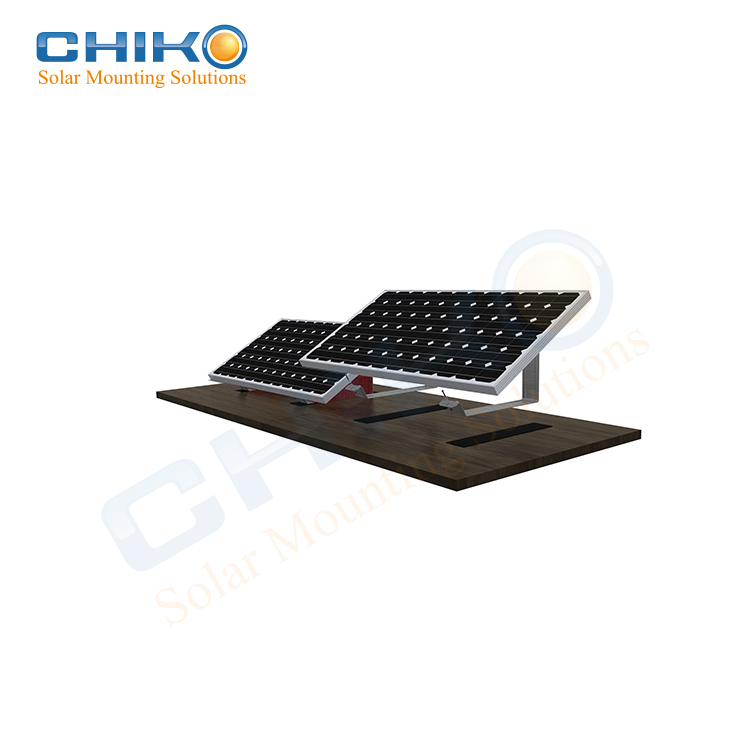

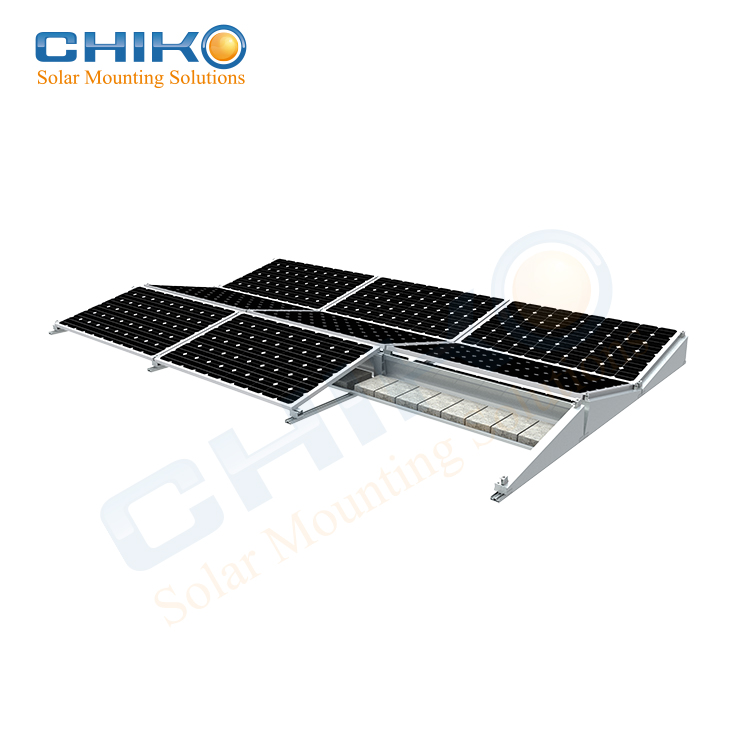

Ballast VI Mount

• Most universal
• 1 panel Landscape orientation & East to West
• Fixed tilt angle at 12°
• Made of AL 6005-T5
• Highly class anodizing on surface treatment
• Only 1 tools installation needed for all fixing
• Pre-assembly
• Non-penetration to roof and light weight roof loading

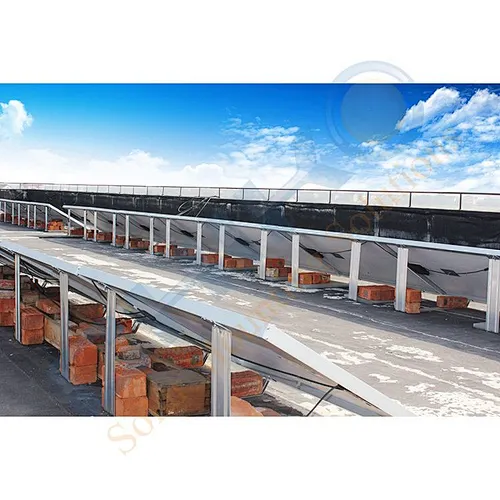

Ballast III Mount

• Most cost-effective
• 1 panel Landscape orientation
• 10°,15°,20°,25°,30°tilted angle available
• Various modules configurations are possible
• Made of AL 6005-T5
• Highly class anodizing on surface treatment
1 step installation
• Non-penetration to roof and light weight roof loading

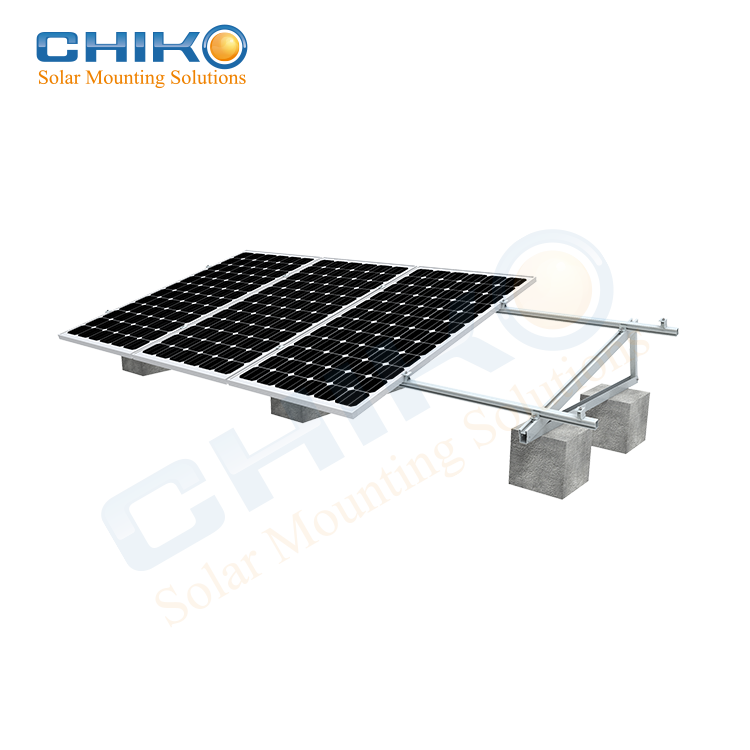

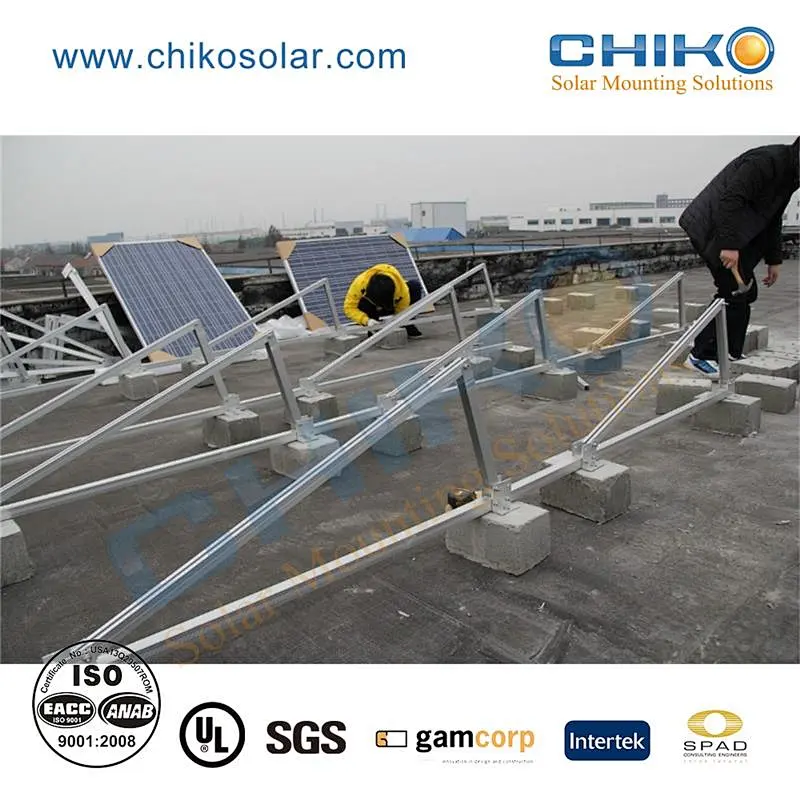

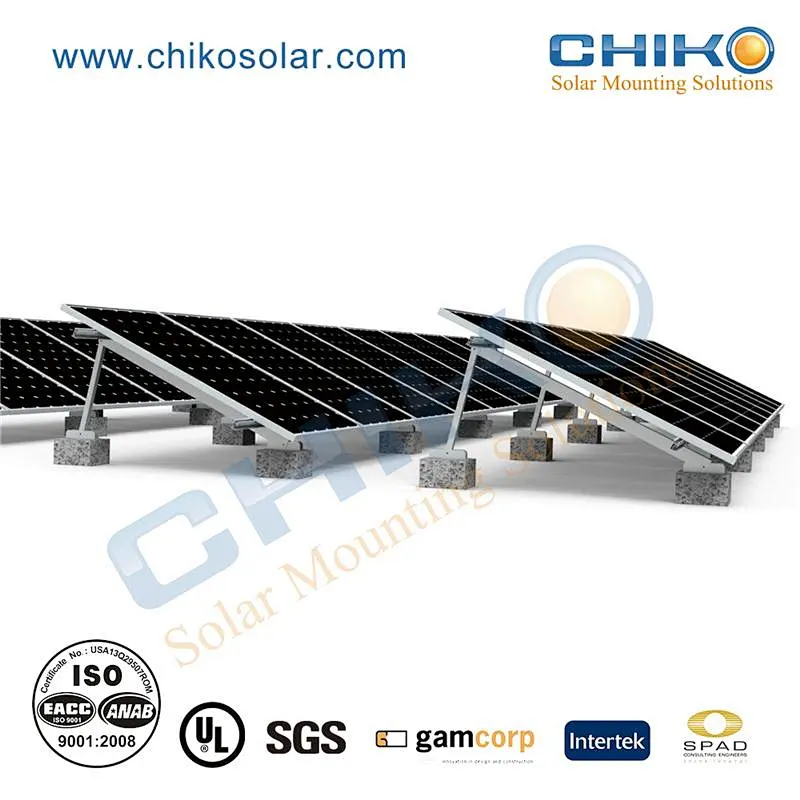

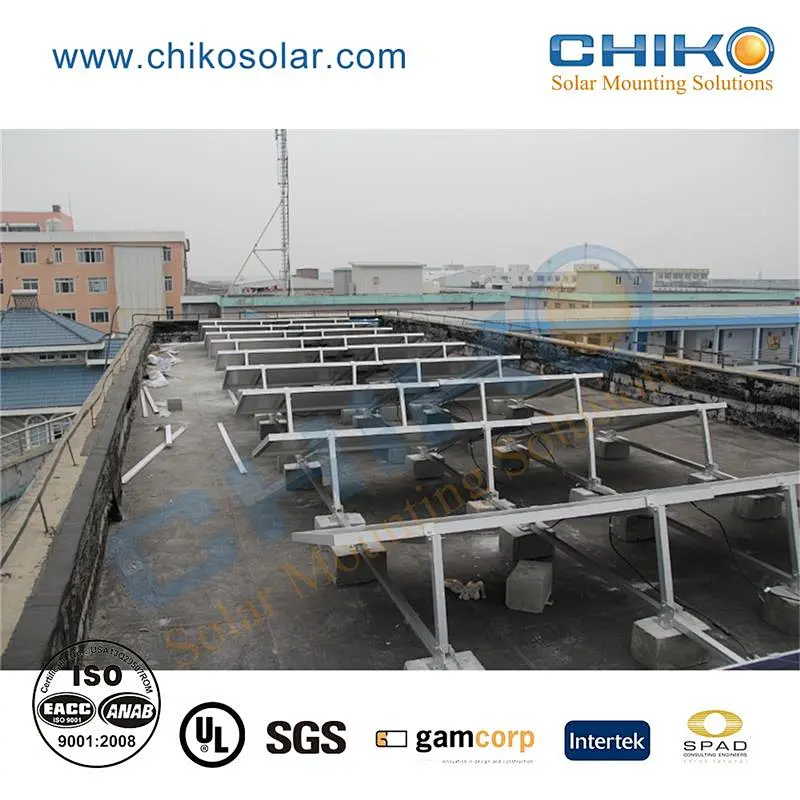

B. TRIANGULAR SOLAR MOUNTING SYSTEM

Adjust span to between feet to meet different angles at different latitudes, Moving arms to meet different required angles at different season.

• 1 panel Portrait orientation •Made of AL 6005-T5 • Pre-assembly and foldable

Adjustable Aluminum Triangular Mount

Most cost-effective
10°-30°tilted angle adjustable

Highly class anodizing on surface treatment
Non-penetration to roof and light weight roof loading

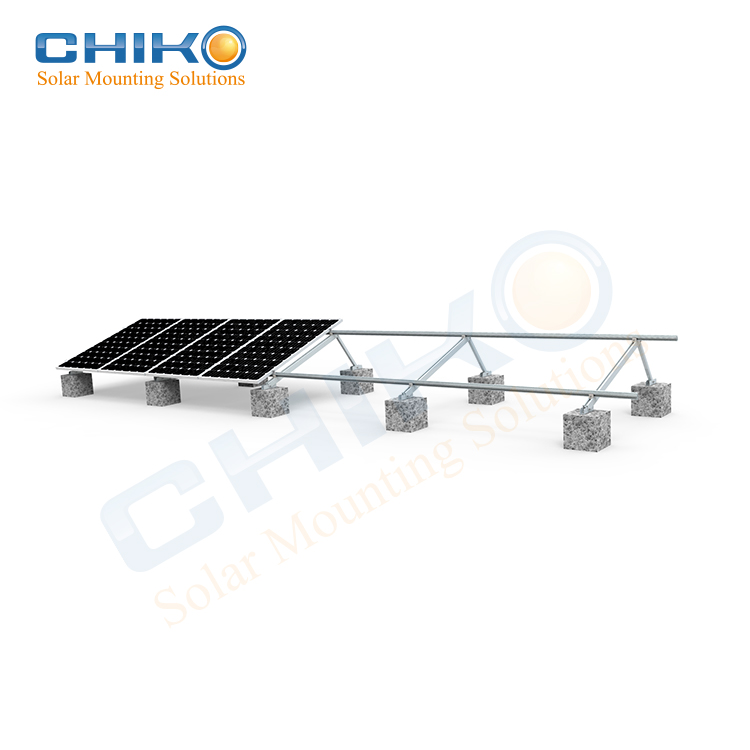

Fixed Aluminum Triangular Mount

Most universal
10°,15°,20°,25°tilted angle available
Hot Dip Galvanizing on surface treatment
Non-penetration to roof with Lower cost

Company Profile

CHIKO’s origins date to 2007, as a high technology company that specializes in providing the solar mounting solutions in addition to design, manufacturing and selling, for utilities, commercial,industrial and residential projects. Headquartered in Shanghai , China. CHIKO has set up the office and warehouse across several countries including Australia, the United States, Mexico, Nederland, South Africa, United Arab Emirates, India, Thailand, Vietnam, Vietnam, Philippines, and Korea. CHIKO, create the values for customers!

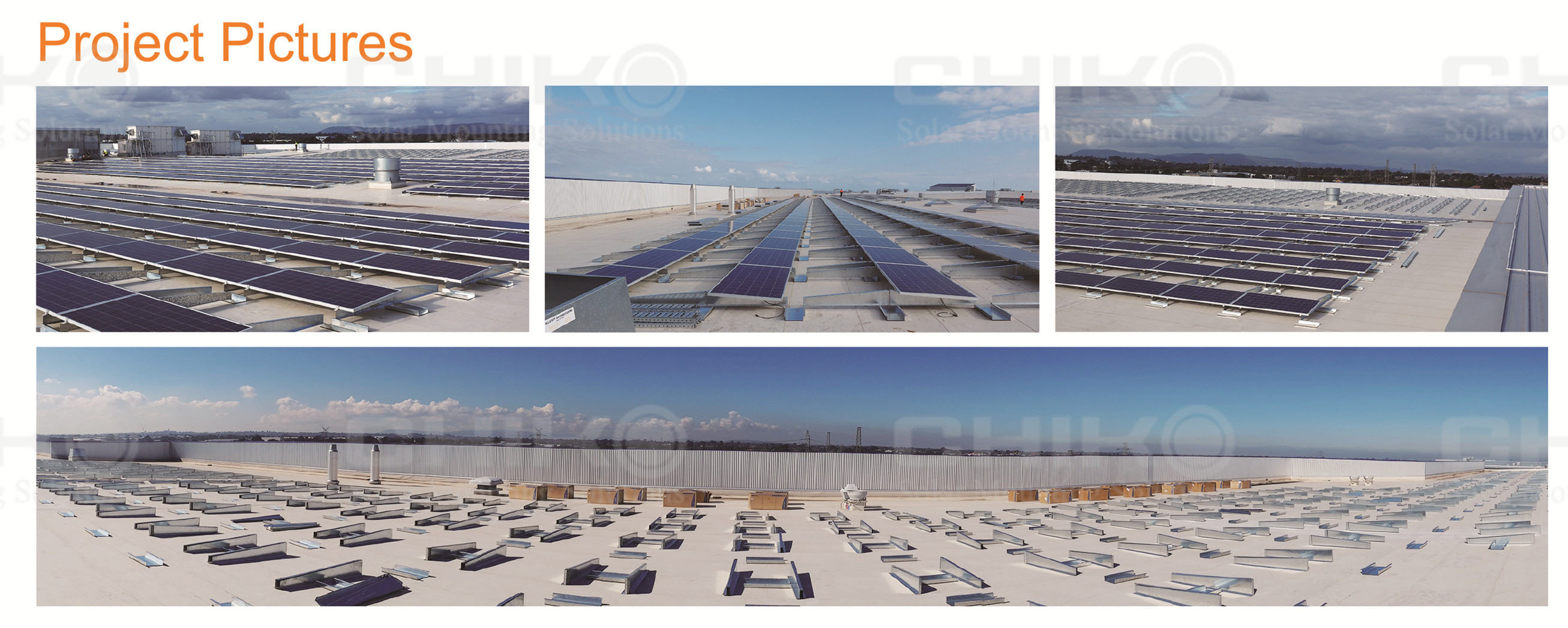

With over 8GW installations completed in more than two dozen countries, CHIKO solar mounting products performs excellent that greatly improved the stability of the solar power plant, successfully has been one of the largest solar racking providers in the world.

Our service

Please provide Project informations as below when inquiry:
1. The dimension of your common solar panel? ________(L*W*T)
2. The PV array? _________
3. Max Wind speed in your area? _________
4. Tilt angle require for your area? _________

If you have any special require, Click here to contact us. Our design team will help you make the most suitable solution.
