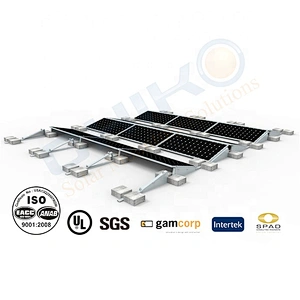

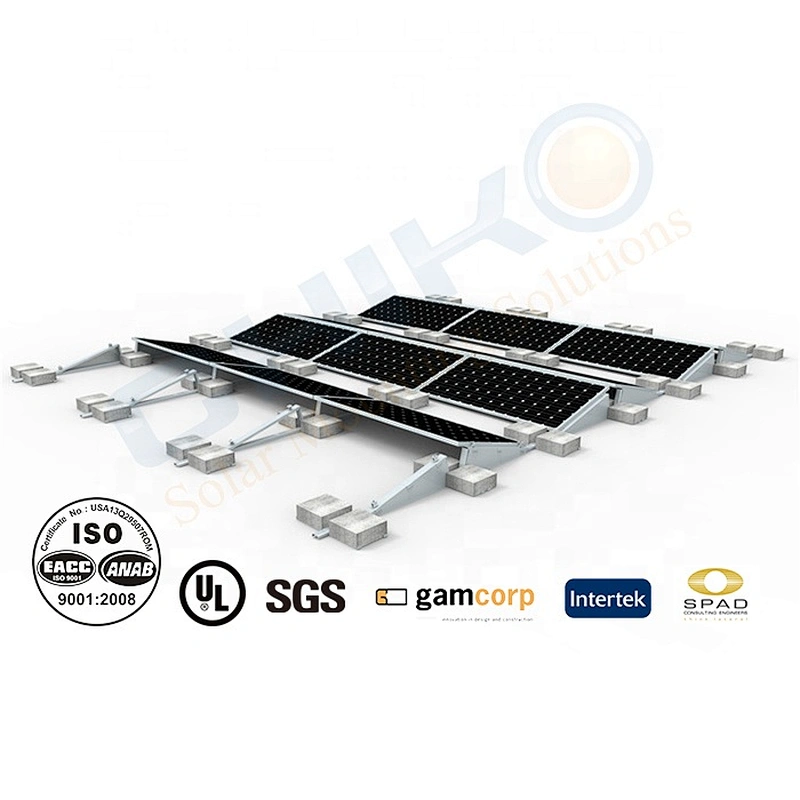

CHIKO Ballast I Solar System

Model NO.: CK-Ballast
Price:: USD 0.03-0.05 / watts
Minimum order quantity: 50000 watts
Supply Ability: 1000000.0 watts / Month
Country of Origin: SHANGHAI,CHINA

Quantity:

Product Description

Material:Aluminum Alloy.Stainless Steel
Color:Natural/black
Wind load:60M / S
Snow load:1.8KN / M2
Service Life:30 Years
Warranty:10YEARS
Application:Home
Application:Commercial
Solar Panel Type:Monocrystalline Silicon
Solar Panel Type:Polycrystalline Silicon
Mounting Type:Roof Mounting
Place of Origin:CN;SHG
Brand Name:Chiko
Model Number:CK-Ballast
Work Time (h):24 Hours
Certificate:CE/UL/ASNZS1170/intertek/SGS/MCS/Intertek/SPAD

Products Description

CHIKO FLAT ROOF SOLARMOUNT BRACKET

The Chiko flat roof ballast solar mounting system, with innovative design to provide fast & easy installation. It is made of
extruded anodized aluminum and stainless steel. This product provide strong durable, anticorrosion of antirust and flexible application for any residential and industrial solar panel installation.

CHIKO focus on manufacturing and design Solar Mounting System for more than 9 years, CHIKO products was installed in more than 60 countries.The customer design is available. Anything further question and more solution, contact us!

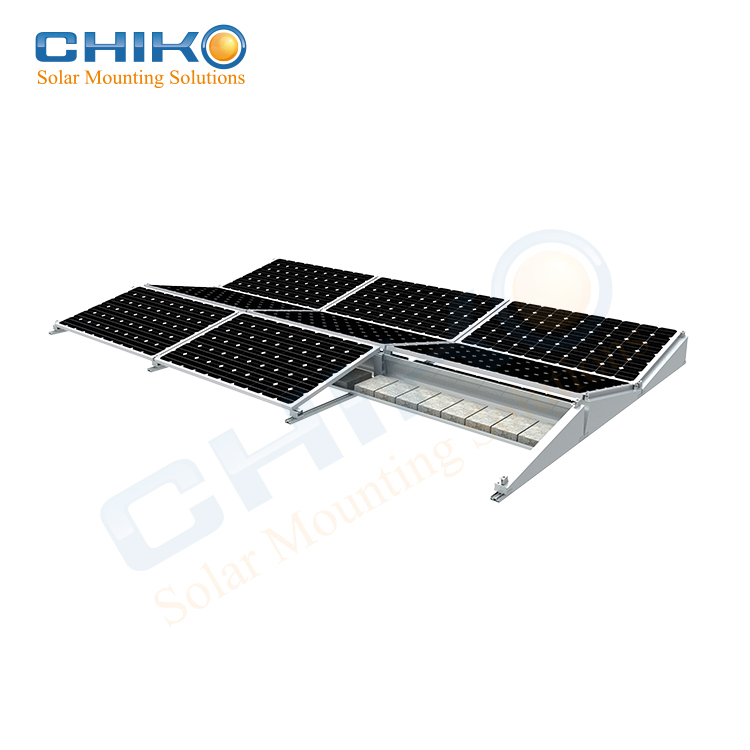

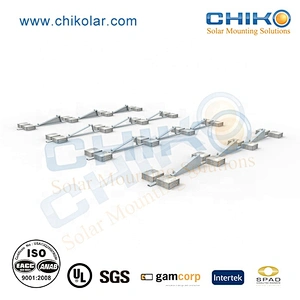

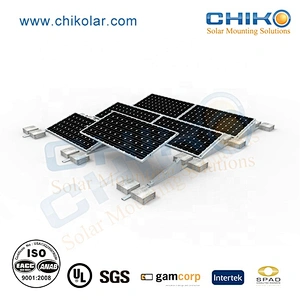

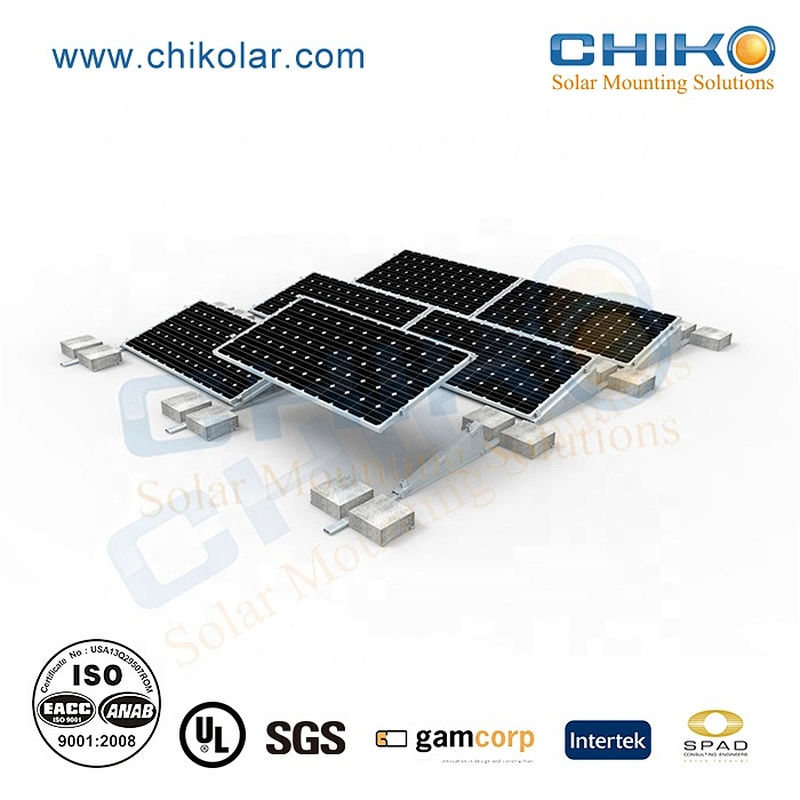

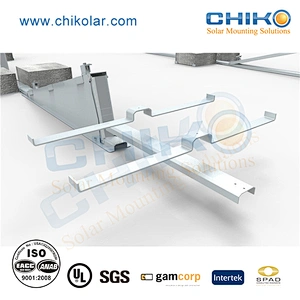

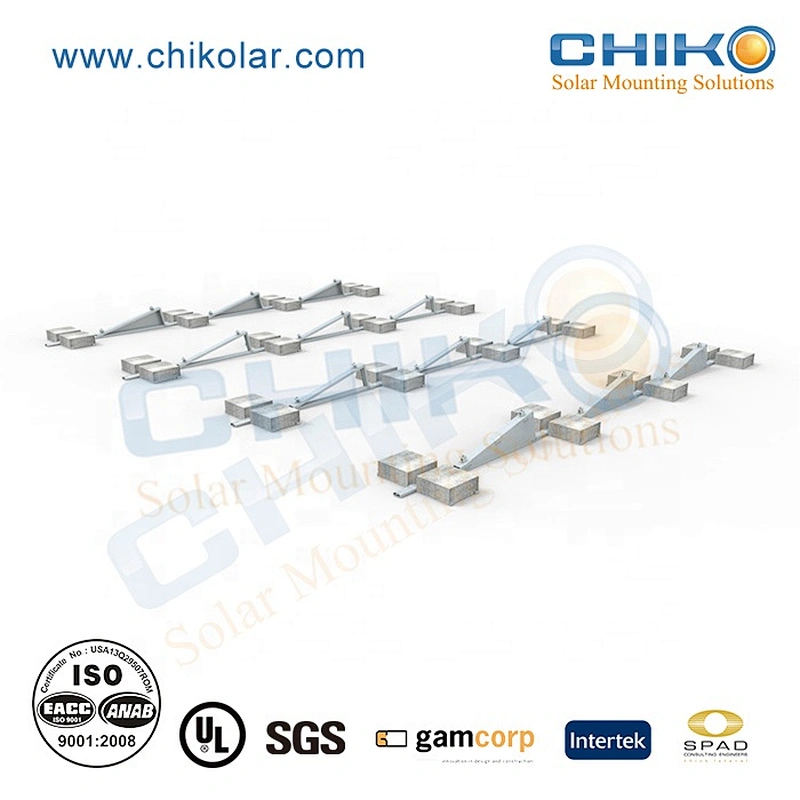

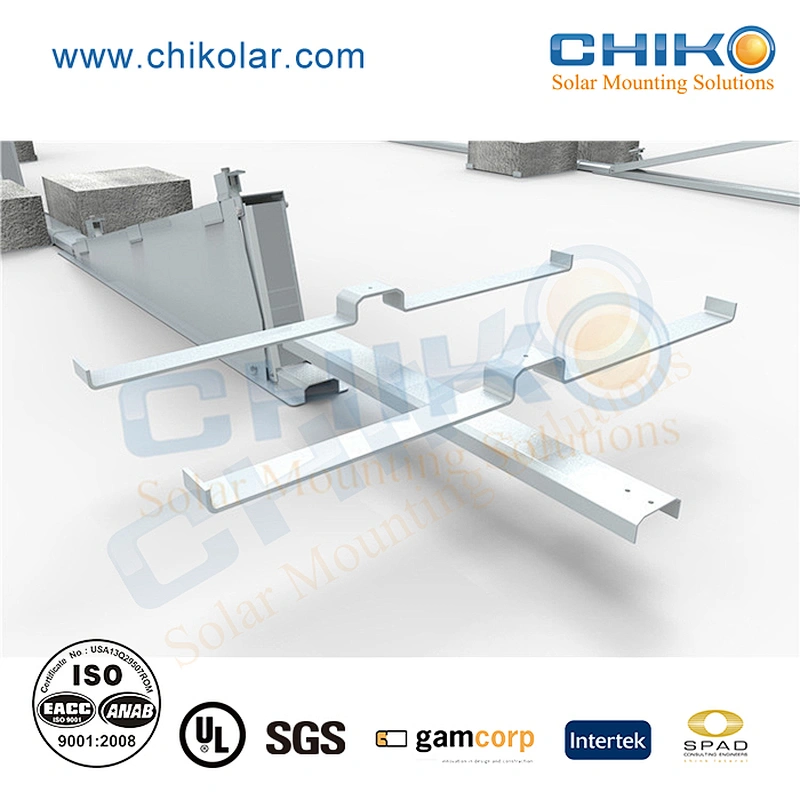

A. BALLAST MOUNT SOLAR SYSTEM

No need drilling on rooftop surface, pressed be concrete ballasts.

Customized angles are supporting

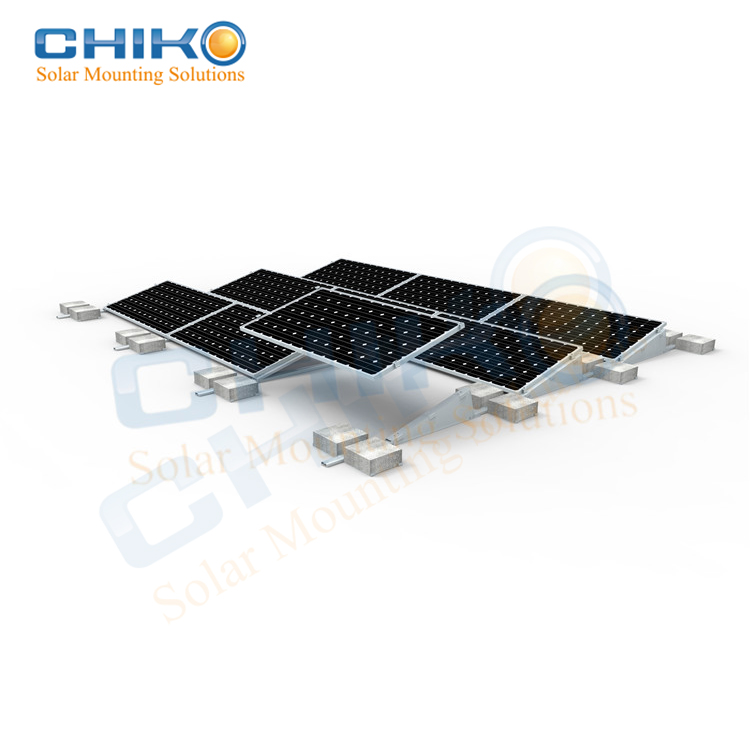

Ballast I-2 Mount

•Most universal
•1 panel Landscape orientation & East to West
•10°,15°,20°,25°,30°tilted angle available
•Various modules configurations are possible
•Made of AL 6005-T5
•Highly class anodizing on surface treatment
•Pre-assembly and foldable
•Non-penetration to roof & light weight roof loading

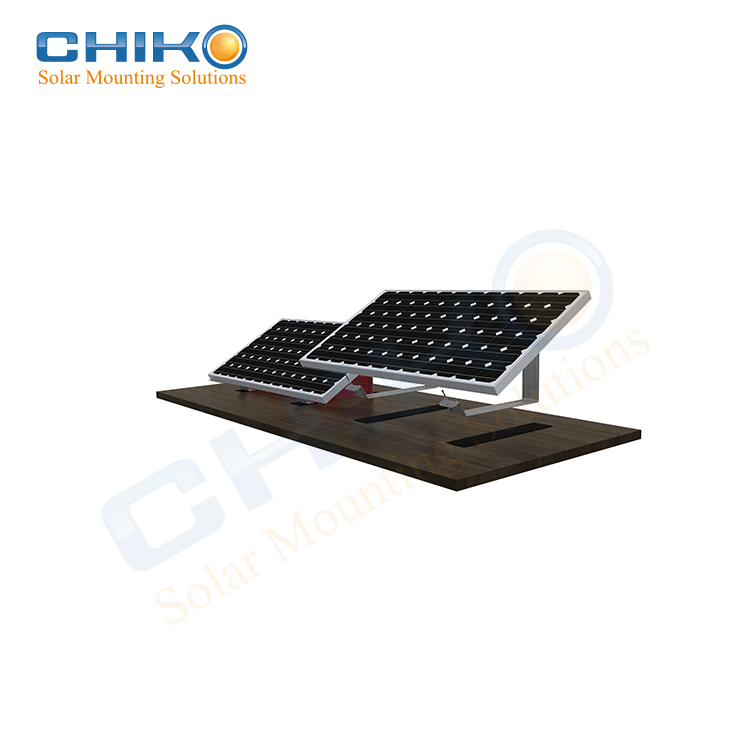

Ballast VI Mount

•Most universal
•1 panel Landscape orientation & East to West
•Fixed tilt angle at 12°
•Made of AL 6005-T5
•Highly class anodizing on surface treatment
•Only 1 tools installation needed for all fixing
•Pre-assembly
•Non-penetration to roof and light weight roof loading

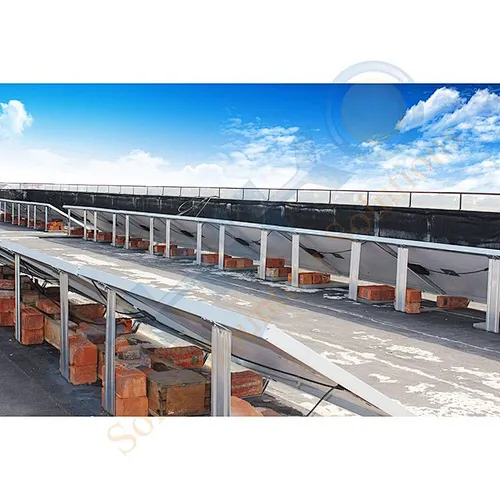

Ballast III Mount

•Most cost-effective
•1 panel Landscape orientation
•10°,15°,20°,25°,30°tilted angle available
•Various modules configurations are possible
•Made of AL 6005-T5
•Highly class anodizing on surface treatment
1 step installation
•Non-penetration to roof and light weight roof loading

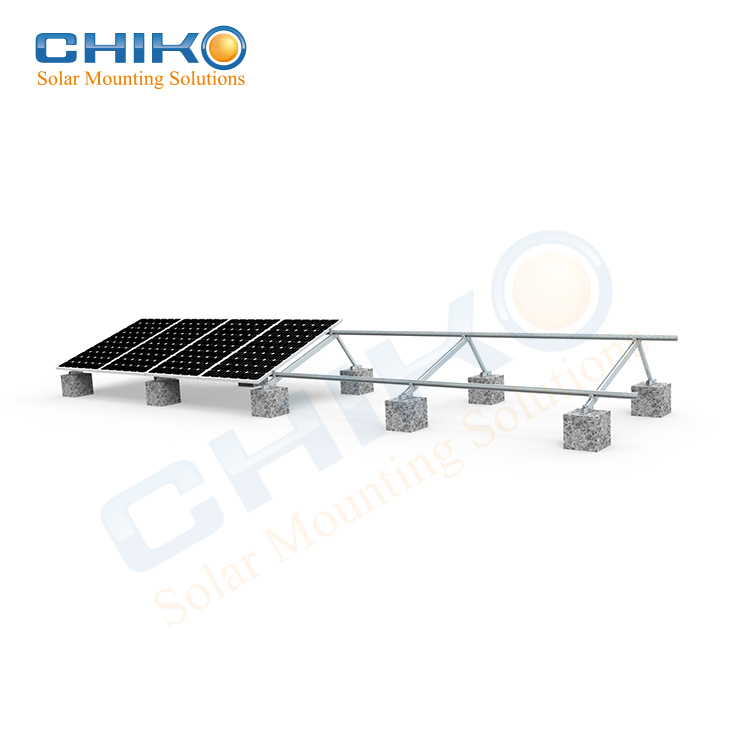

B. TRIANGULAR SOLAR MOUNTING SYSTEM

Adjust span to between feet to meet different angles at different latitudes, Moving arms to meet different required angles at different season.

• 1 panel Portrait orientation •Made of AL 6005-T5 • Pre-assembly and foldable

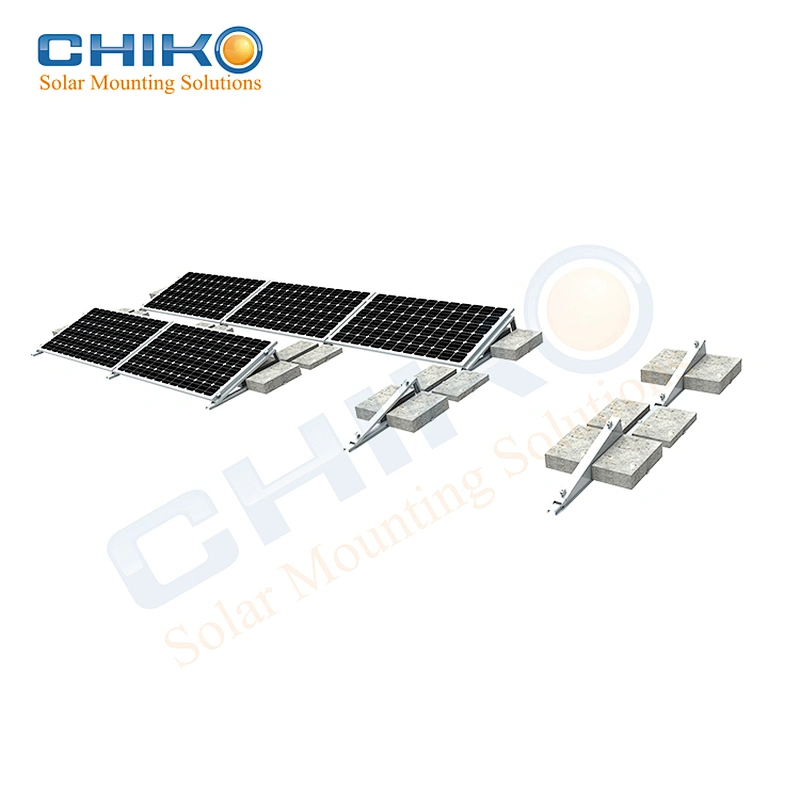

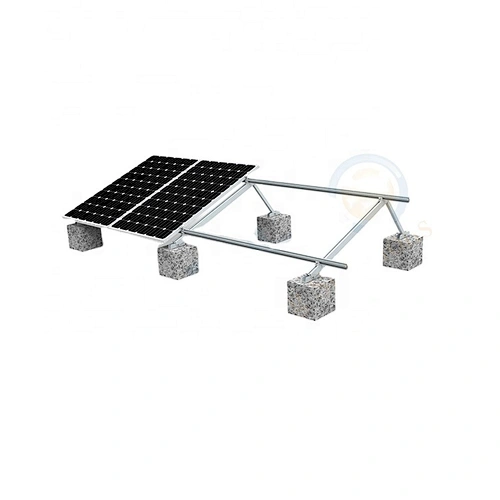

Adjustable Aluminum Triangular Mount

Most cost-effective
10°-30°tilted angle adjustable

Highly class anodizing on surface treatment
Non-penetration to roof and light weight roof loading

Fixed Aluminum Triangular Mount

Most universal
10°,15°,20°,25°tilted angle available
Hot Dip Galvanizing on surface treatment
Non-penetration to roof with Lower cost

Our service

Please provide Project informations as below when inquiry:
1. The dimension of your common solar panel? ________(L*W*T)
2. The PV array? _________
3. Max Wind speed in your area? _________
4. Tilt angle require for your area? _________

If you have any special require, Click here to contact us. Our design team will help you make the most suitable solution.

WHY CHOOSE CHIKO ?

• Cost-effective - Factory manufacturing

• Installation - Special design is available
• Guarantee - Warranty 10 years and service life up to 30 years
• Delivery - Globally warehouse

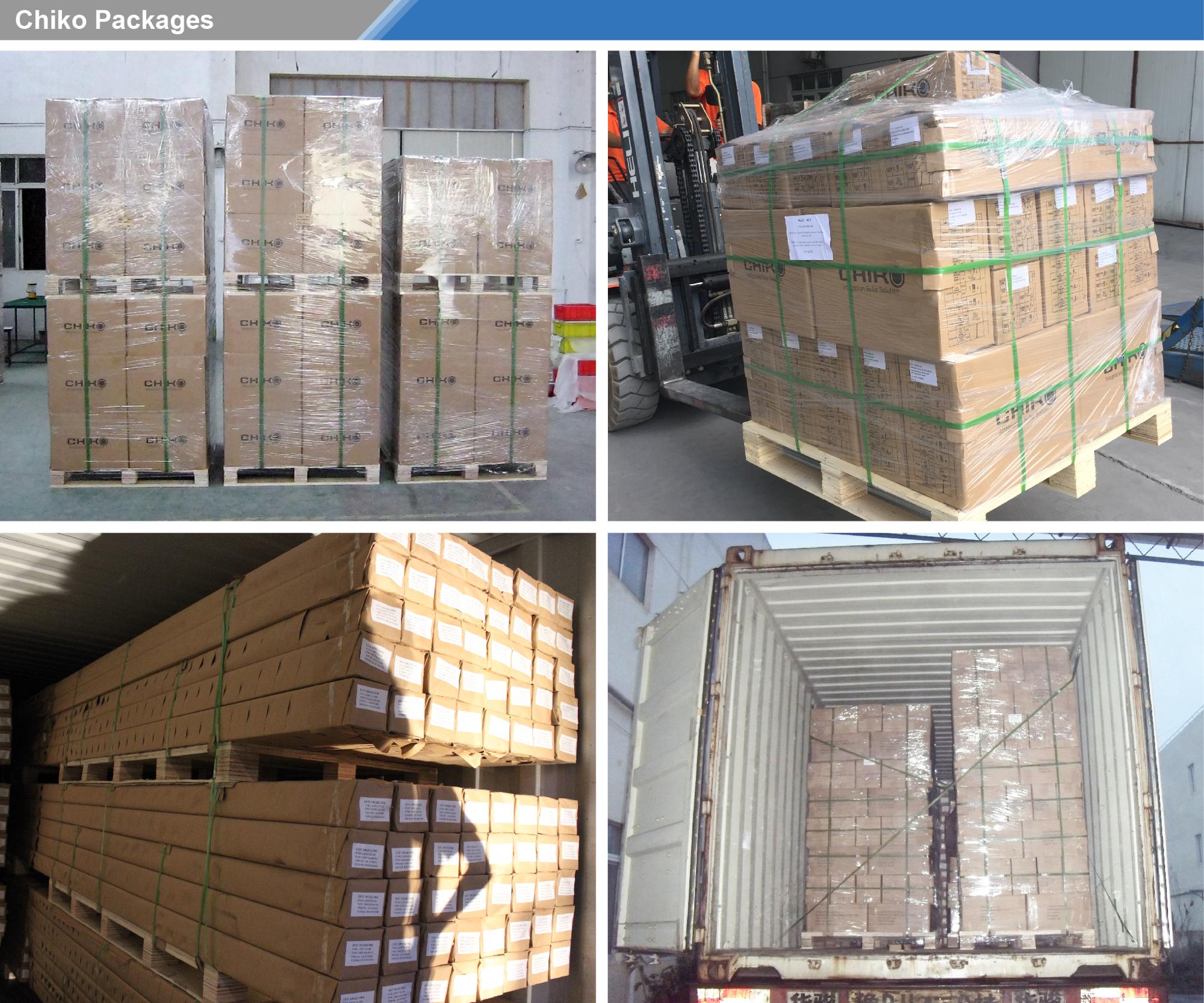

Product packaging

CHIKO Packaging: Put Warranty Chiko solar mounting products into CHIKO standard carton/ wooden pallet/ other customized packages.
CHIKO Shipping Lead-time: 1-2 weeks after the order payment confirm

Rail	8 Pcs/Pkg320 Pcs/Pallet
Rail Splice Kit	50 Pcs/Box10000 Pcs/Pallet
Mid Clamp	100 Pcs/Box20000 Pcs/Pallet
End Clamp	100 Pcs/Box20000 Pcs/Pallet
Hanger Bolt	100 Pcs/Ctn10000 Pcs/Pallet
Grounding Lug	140 Pcs/Box28000 Pcs/Pallet

Company Profile

Shanghai CHIKO Solar, started in 2009, is a leading manufacturer focusing on solar mount system, and provides around 15.4 MW solar PV installation every week.
CHIKO Solar provides a series of rooftop and ground solar mounting system to support your PV project installation.

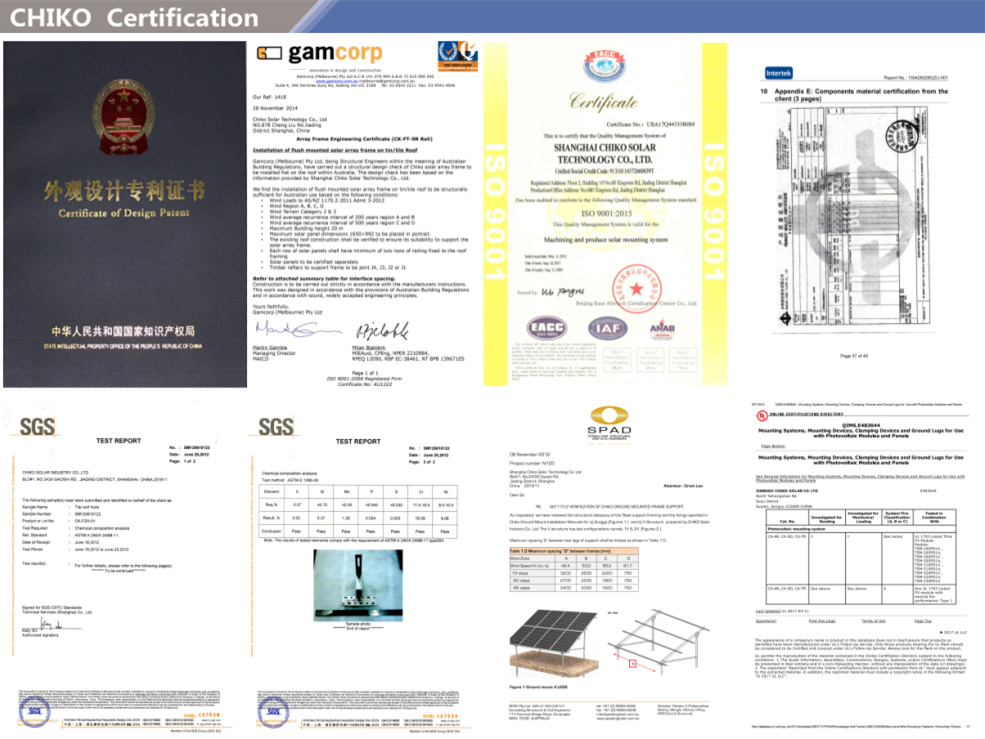

Certification: We have established good cooperation with countries across the world, including USA, Mexico, Germany, UK, Thailand,Australia, Japan. Besides, Our experienced team provides prompt and professional customized design to meet all you need.
Easy installation & cost saving, Solar Energy System Roman Tile Roof Solar Photovoltaic Mount is a HOT sell among all the CHIKO Solar Mount kits.

Exhibition

Our Advantages

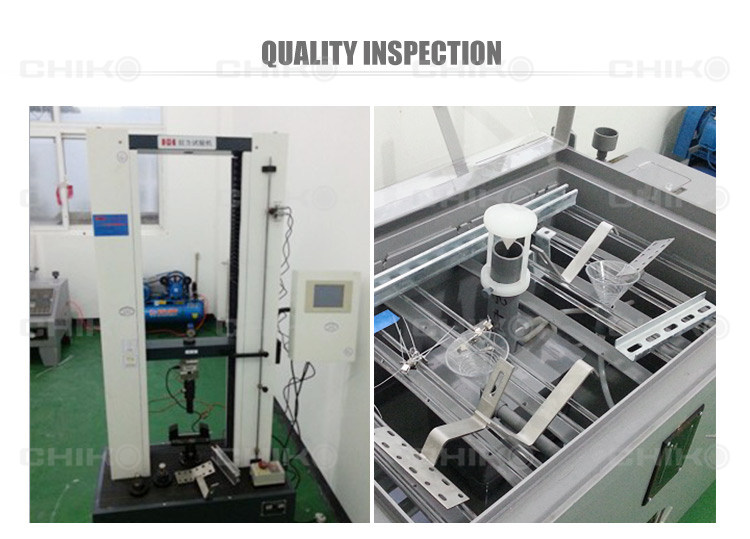

Quality

With CHIKO, you will meet leading highest standard quality. All of our Aluminum profiles are made 6005 T5 with surface protection anodic oxidation 12-15 micron (µ), hooks and bolts are made of Stain- less steel 304.Ground mounting systems that made of Q235 steel will be hot dip galvanized with a averagethickness 80 micron (µ).
