- Enclosure Environmental Rating:IP67
- MPPT Efficiency:99.00%
- Night Time Power Consumption:<50mW
- Cooling:Natural Convection-No Fans
- Ambient Temperature Range:-40~65℃
- Startup Voltage:22V
- Communication:WiFi/Power line/Zigbee WiFi
- Compatibility:Compatible with 60~72 cell PV modules
- AC Cable Length:2.45m
- Output Type:Single
- Type:DC/AC Inverters
- Place of Origin:CN;ZHE
- Brand Name:CHIKO
- Model Number:CK-1600-PLUS-10
- Input Voltage:60V
- Output Voltage:184-265V
- Output Current:7.3A
- Output Frequency:60.0/55~65Hz
- Size:267x300x30mm
- Inverter Efficiency:99%
- Certificate:UL1741, INMETRO, VDE0126 ,VDE4105, IEC62109, CE
- Warranty:25 Year
- Weight:5
Products Description

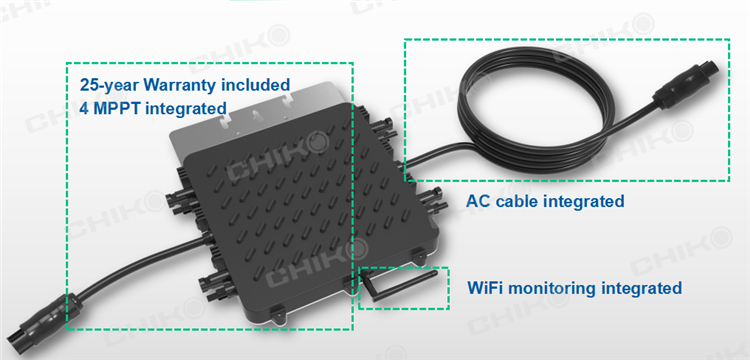

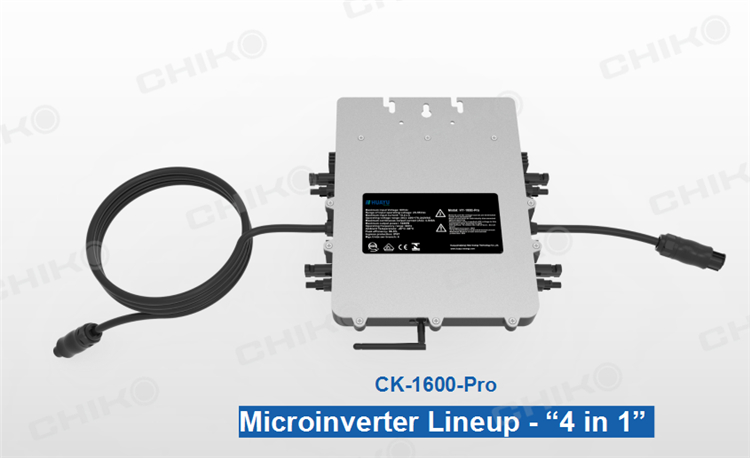

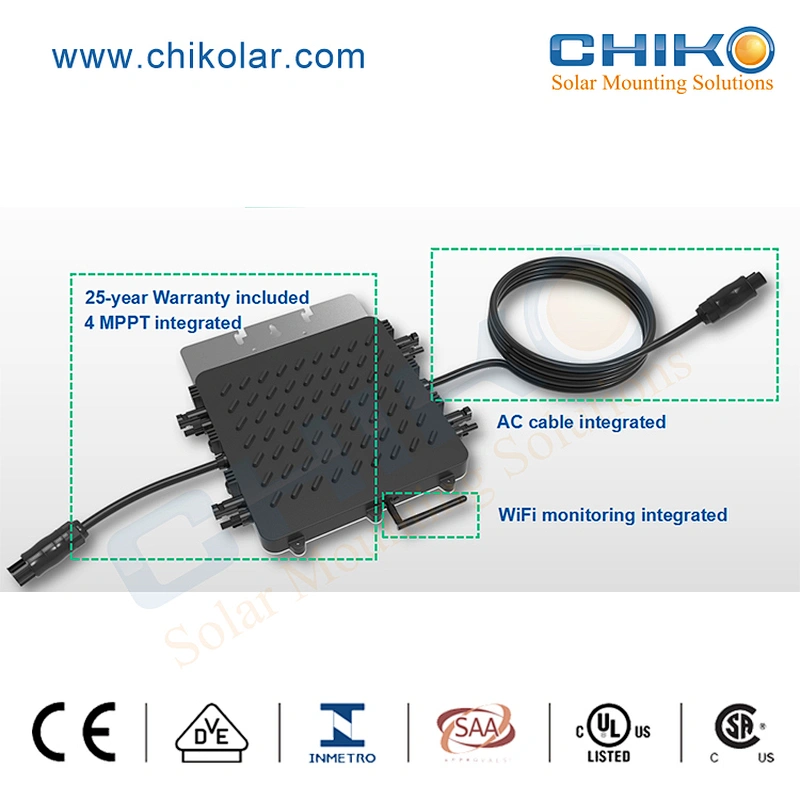

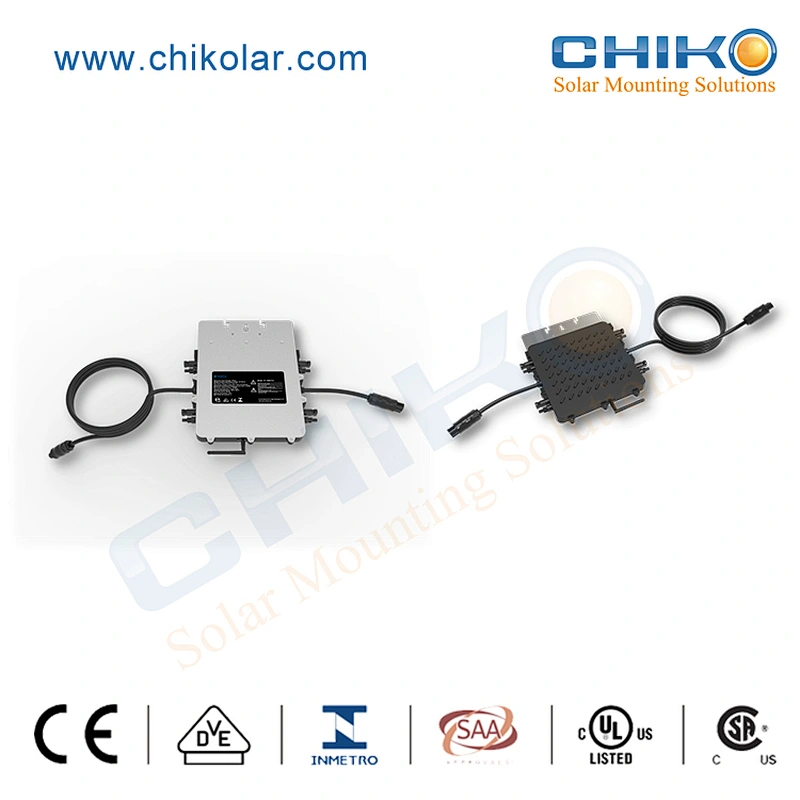

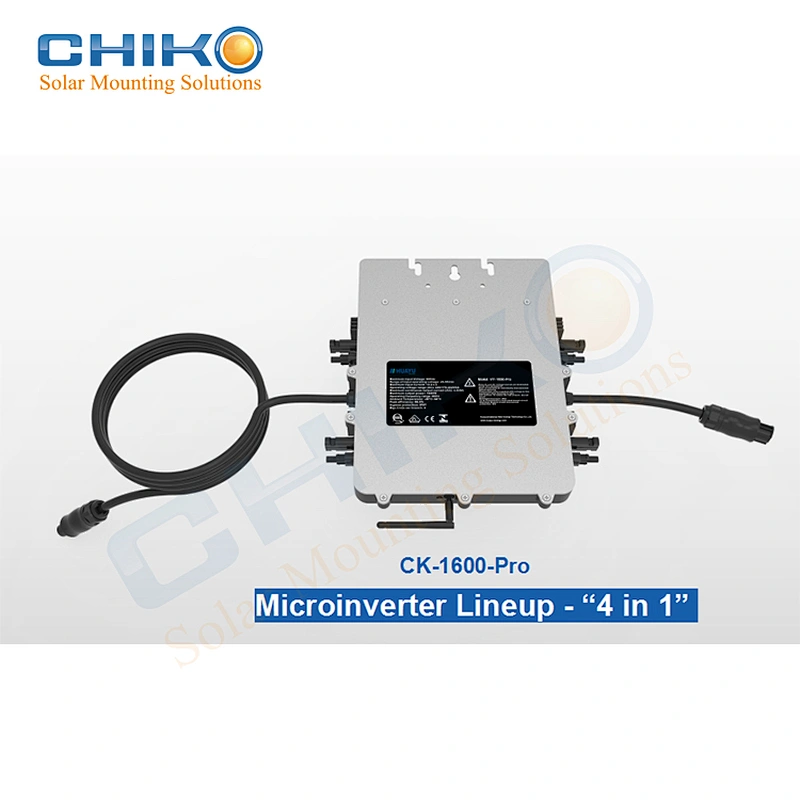

Solar Micro Inverter 1600 Plus
● For 4*470Wp Max; Adapted to 60/72 cells PV panels
● Peak eficiency 96.5%;CEC weighted effiency 95%
● Static MPPT efficency 99%,
● High reliability; NEMA6(P67) enclosure;6000V surge protection
● The Largest Power Ever for Microinverter in the World

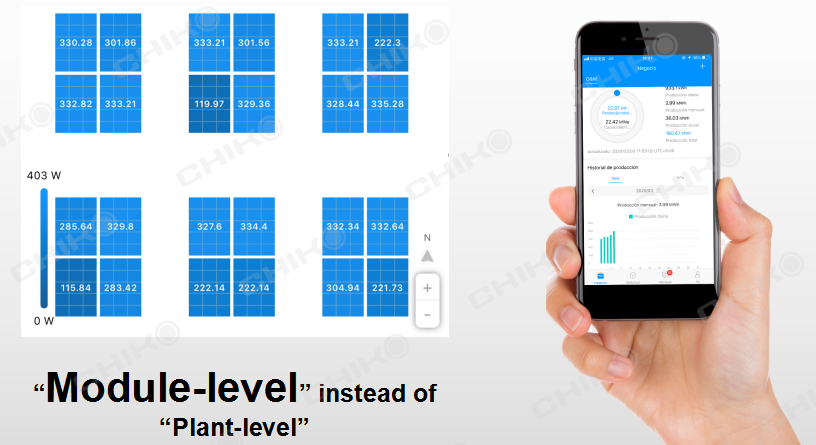

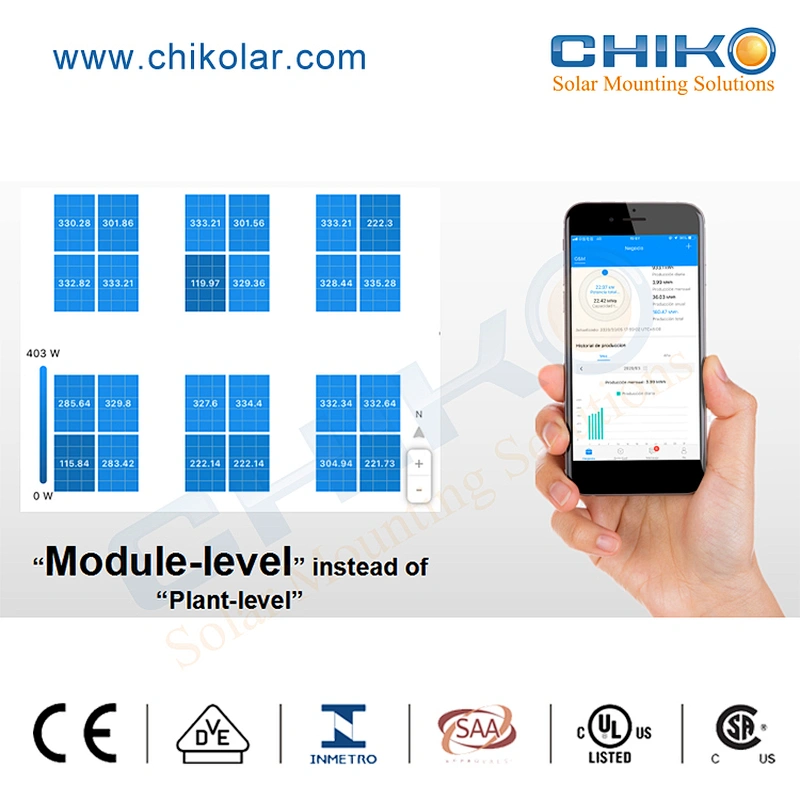

A. Module-level Monitoring
● World's First Data Logger (DTU) Integrated Microinverte
● Stable data collection with WIFI/PLC/Zigbee solution
● Compliant with EU GDPR(the General Data Protection Regulation)
● Advailavle for PC,Pad & Smartphone

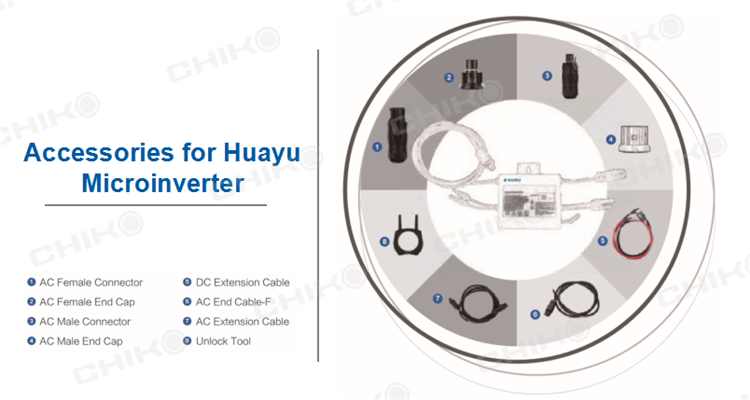

B. “Plug&Play” Installation Accessories
Accessories for Microinverter

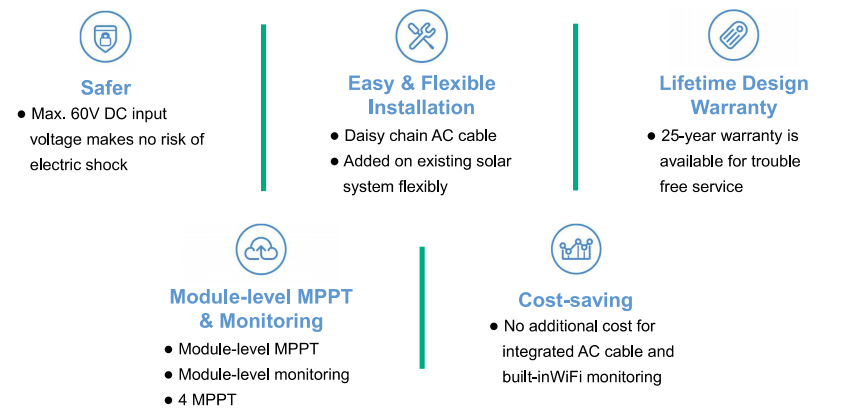

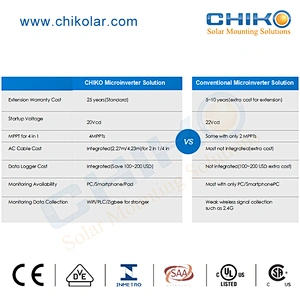

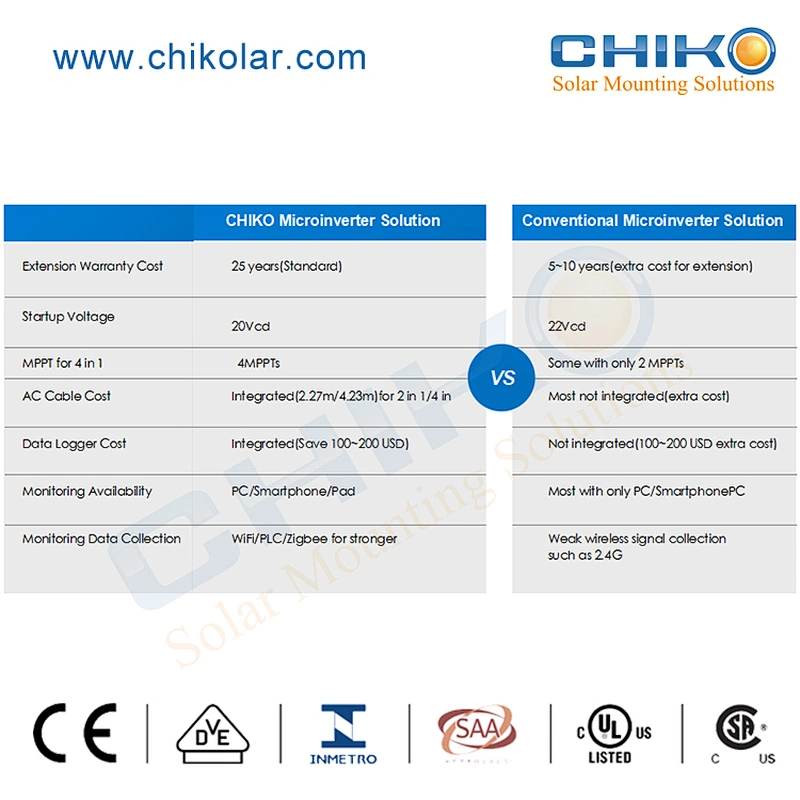

C. Unique Features of Huayu Microinverter

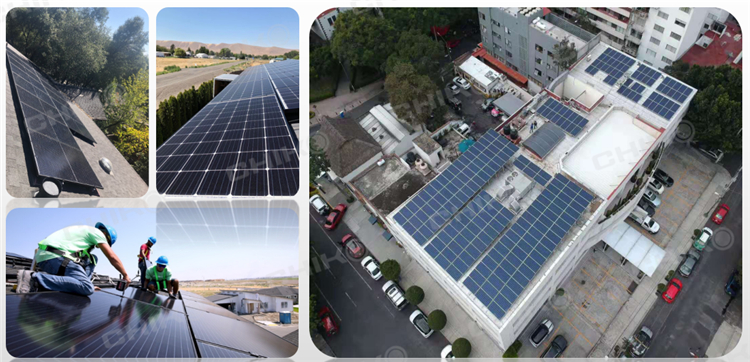

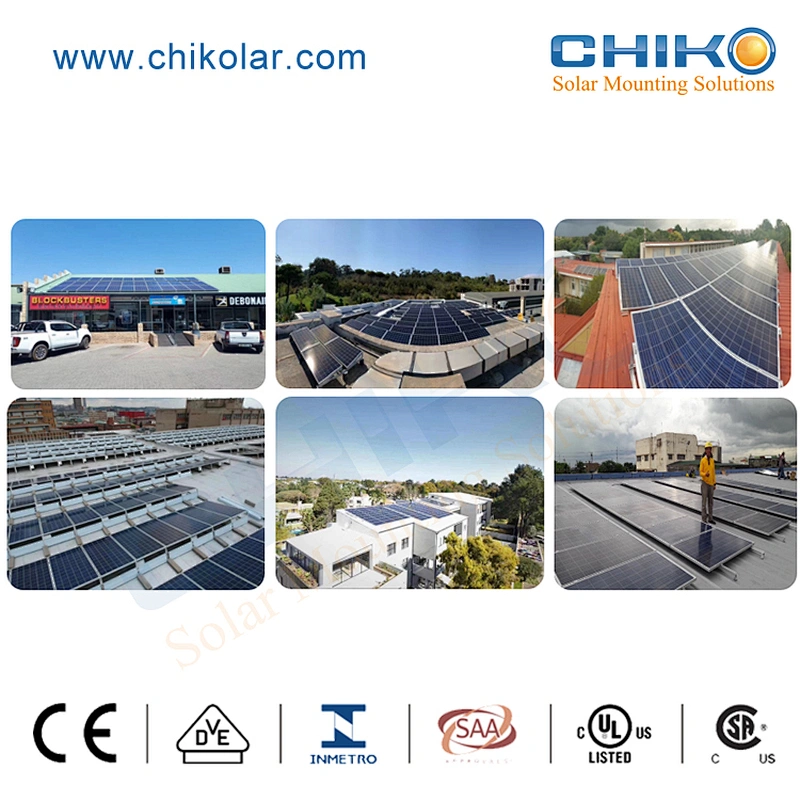

PROJECTS CASE
200+ MW per year shipment of MLPE(Module-level Power Electronics)products.
Local distribution partners in 50+ countries & regions Local service branches in 20+ countries & regions
Expanding over 10 years in solar industry
Anything further question and more solution, Contact us !
Recommend Products

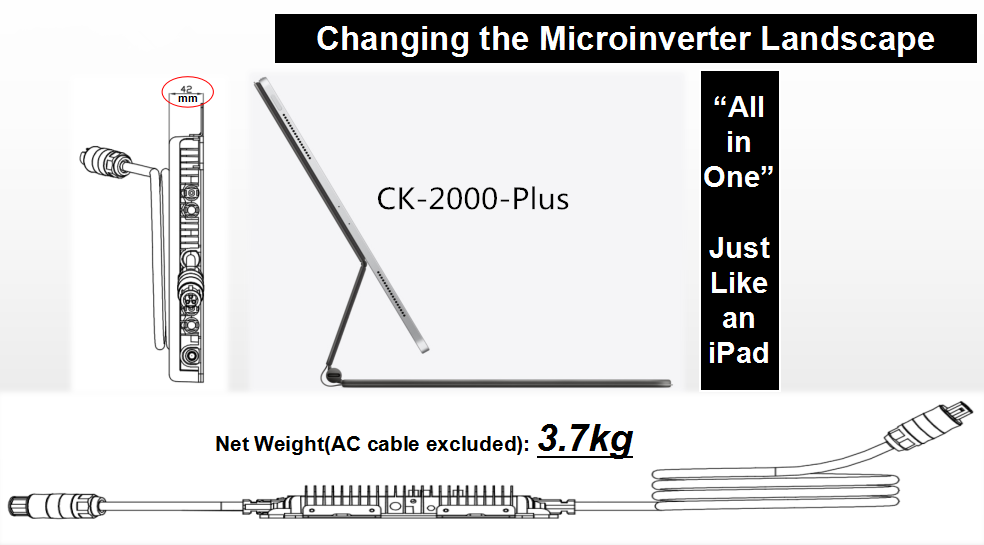

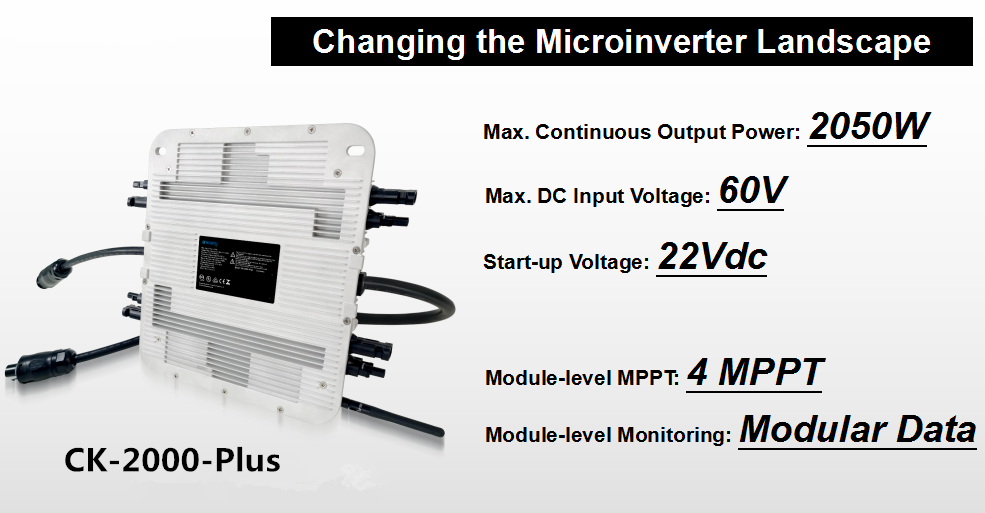

CHIKO Micro inverter CK-2000-Plus
Power Density: 554.05W/kg
A New World Record of Power Density for Microinverter Industry
Technical Specifications
Model | CK-1600-Plus | CK-2000-Plus | ||
Input Data (DC) | ||||
Recommended Input Power | 4*315~500W | 4*315~600W | ||
Start-up voltage | 22V | |||
MPPT Voltage Range | 25~55V | |||
Operating voltage range | 20-60V | |||
Max DC Short Circuit Current | 16A | 16A | ||
Maximum input voltage | 60V | |||
Maximum input current | 4*12.5 | 4*12.5 | ||
Output Data (AC) | ||||
Peak Output Power | 1600W | 2000W | ||
Maximum Output Current | 7.3A | 8.8A | ||
Nominal Voltage/Range | 185~265V | |||
Nominal Frequency/Range | 47.5~51.5Hz@50Hz | |||
Extended Frequency/Range | 57.5~62Hz@60Hz | |||
Power Factor | >0.99 | |||
Maximum Units per Branch | 4 | 3 | ||
Efficiency | ||||
Peak Inverter Efficiency | 96.5% | |||
CEC weighted efficiency | 95% | |||
Static MPPT Efficiency | 99% | 99.80% | ||
Night Time Power Consumption | <50mW | <50 | ||
Mechanical Data | ||||
Ambient temperature range | -40- + 65°C | |||
Dimensions | 267*300*30mm | |||
Weight (kG) | 5 (including 2.45m AC cable) | |||
AC Cable Length | 2.45m | |||
Enclosure rating | IP67 | |||
Cooling | Natural convection - No fans | |||
Features | ||||
Communication | WiFi / PLC / Zigbee | |||
Compatibility | Compatible with 60~72 cell PV modules | |||
Certification | UL1741, INMETRO, VDE0126 ,VDE4105, IEC62109, CE etc. | |||
Warranty | 25 Years | |||
More details please send inquiry to us | ||||
